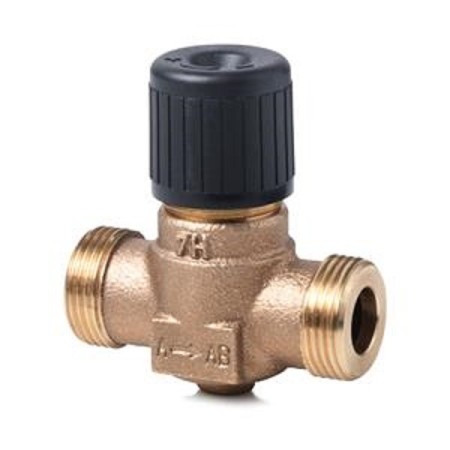

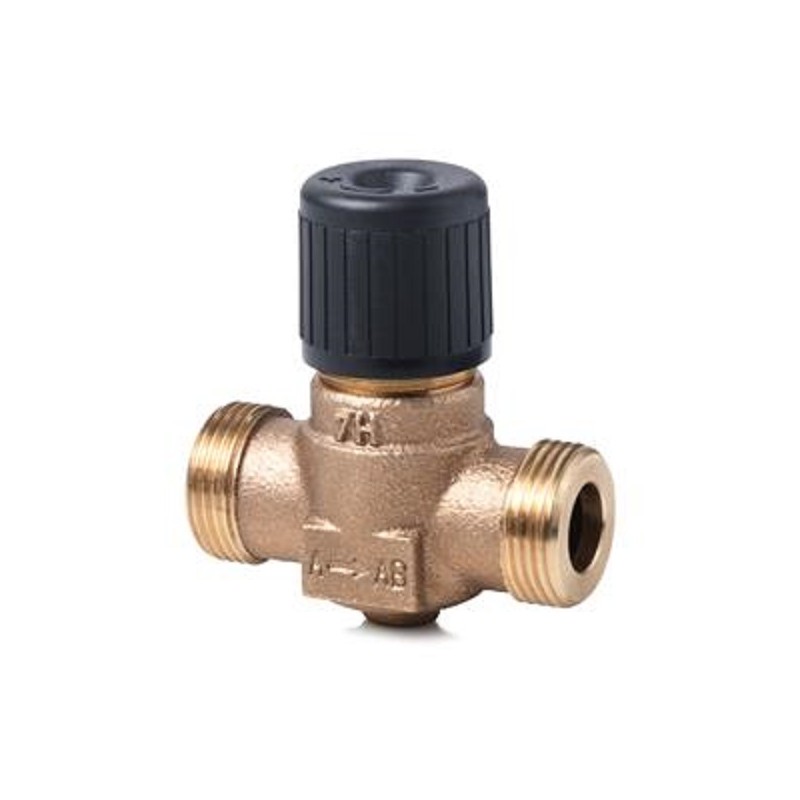

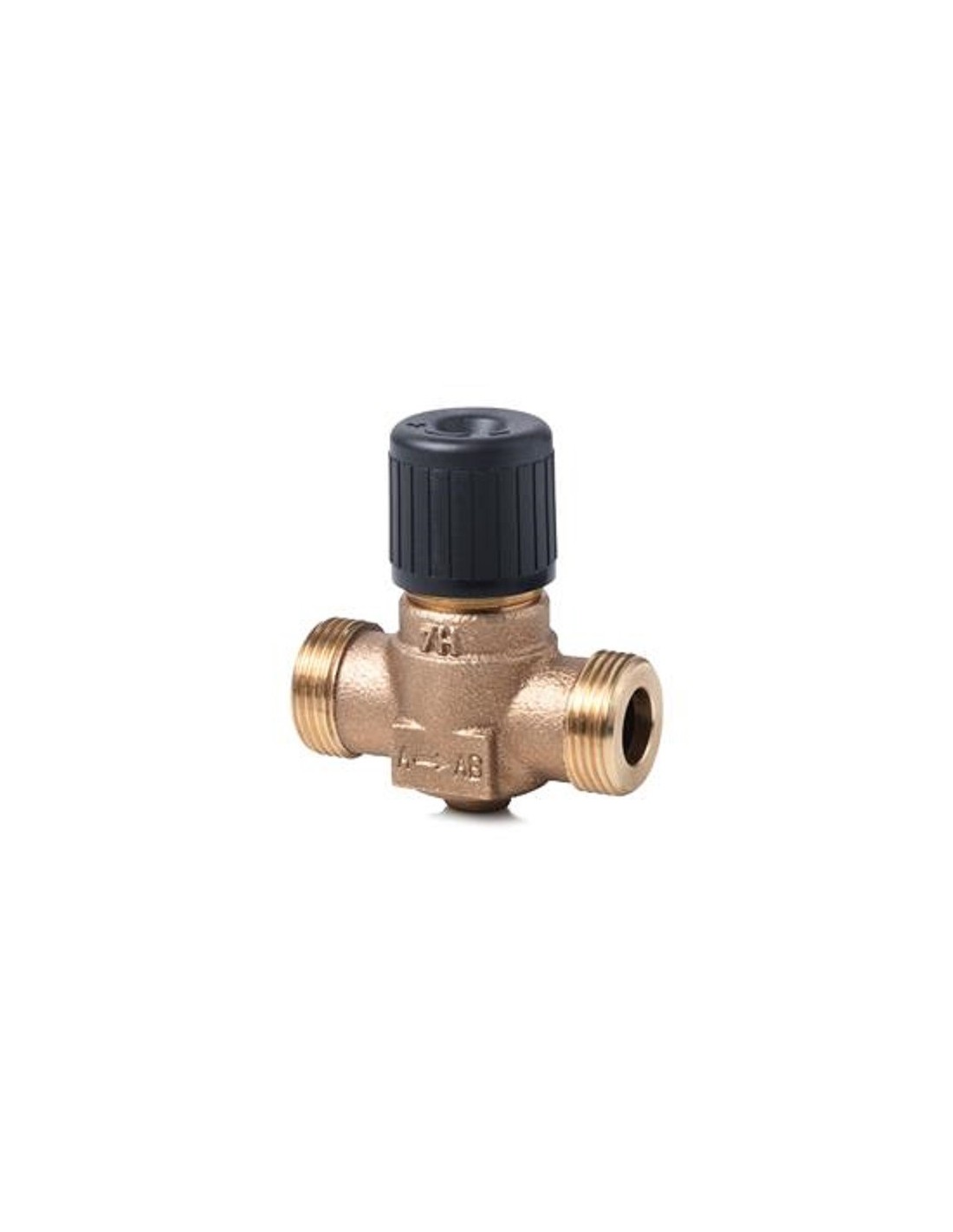

SIEMENS VVP45.15-2.5 VALVE
BARGAIN PRICE DUE TO:
- Damaged or missing original packaging
- Slight cosmetic defects possible
Description
Two-way valves with bypass, seat and plug, with bronze body, threaded connections according to ISO 228/1 standards and knob for manual control. Threaded connection: G 3/4 [in], DN: 15 [mm], Kvs: 2.5 [m³/h]. Can be used to control terminal units, cooled ceilings and zone heating. They are suitable for hot and cold water (VDE 2035), max. 50% glycol. They can be used with the servo controls of the following series: SSB..., SSC... Stroke: 5.5 [mm]. Leakage: max. 0.02 % of Kvs. Return spring force: 200 [N]. Fluid temperature: 2... 110 [°C]. Characteristic: Equipercentage, linear bypass. Valve body: RG5 bronze. Stem, bolt and seat: Stainless steel. Mounting: vertical or horizontal. The VMP45.. can only be used as mixers
