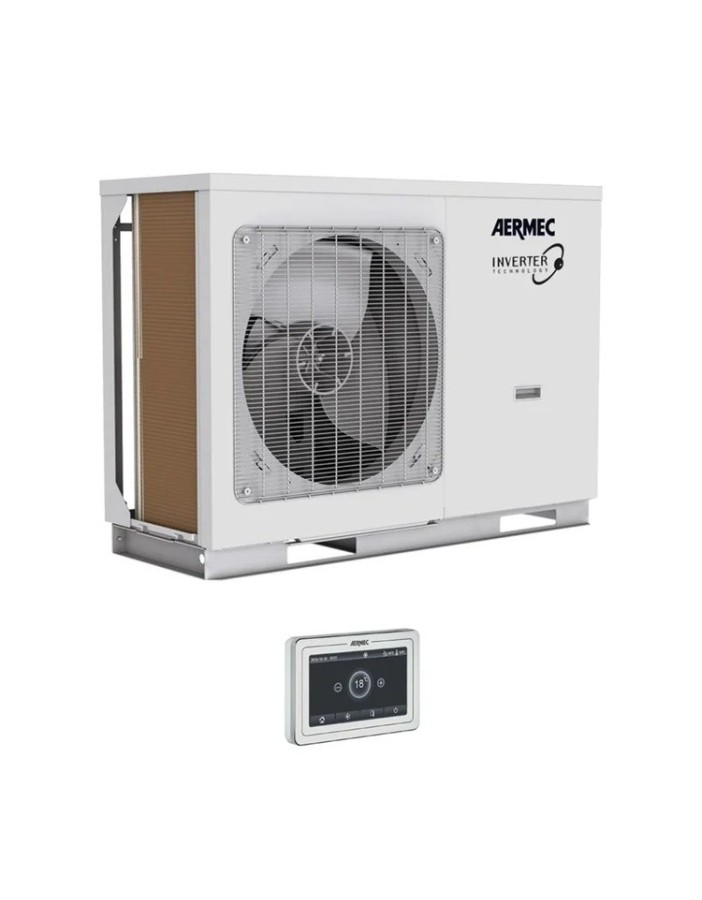

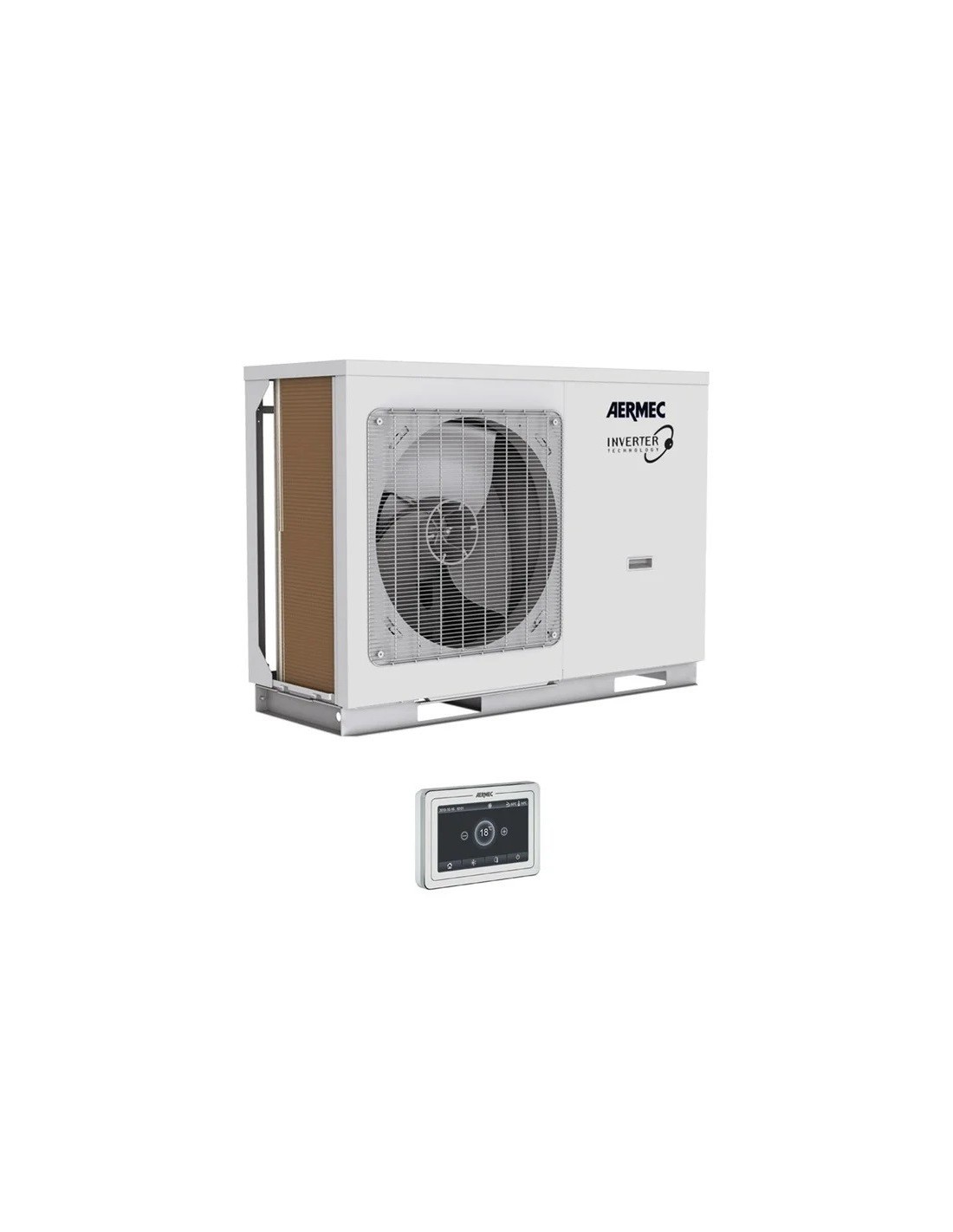

Aermec HMI080 reversible air/water heat pump single-phase inverter

Aermec HMI080 – Reversible Air-to-Water Heat Pump

The Aermec HMI080 heat pump, part of the HMI Series, is a high-efficiency HVAC solution for heating, cooling and domestic hot water (DHW) production. Designed for new builds and renovations as a modern, cost-effective alternative to conventional boilers, it delivers outstanding performance down to -25°C outdoor temperature.

Energy Performance

• Cooling capacity: 5.0 kW – EER: 3.1
• Heating capacity: 7.5 kW – COP: 3.75
• SCOP (seasonal heating): 3.25
• SEER (seasonal cooling): 5.05
• Energy efficiency class: A++
• Maximum water temperature in heating: 60°C
• Max DHW temperature: up to 80°C with electric heater

Key Technical Features

• Eco-friendly refrigerant R32 (GWP 675) – Charge: 0.9 kg
• DC Inverter Rotary compressor with economizer circuit
• Electronic expansion valve
• Low-noise DC brushless axial fans: 53 dB(A) at 1 m
• Power supply: 220-240V ~ 50Hz – Single-phase
• Integrated inverter pump, plate heat exchanger, expansion vessel, safety valve, flow switch
• Anti-freeze base electric heater
• Special Golden Fin coil coating (epoxy anti-corrosion)

Control Features

• Multilingual touch screen control panel
• Built-in Wi-Fi – EWPE Smart App (iOS/Android)
• Weather Dependent Mode for climate-based regulation
• Quick Hot Water function for fast DHW
• Programmable anti-Legionella cycle (max 70°C)
• Programmable Quiet mode
• Compatible with VMF-E5 / VMF-E6 supervisors via VMF-485LINK
• ModBus RS485 compatible

Dimensions and Weight

• Dimensions (H×W×D): 1150 × 345 × 758 mm
• Net weight: 96.0 kg

Ideal Applications

The Aermec HMI080 is ideal for underfloor heating, fan coil units and traditional radiators. Compatible with Aermec DHW storage tanks (DHWT300S). Eligible for energy incentives. Eurovent LCP certified.
