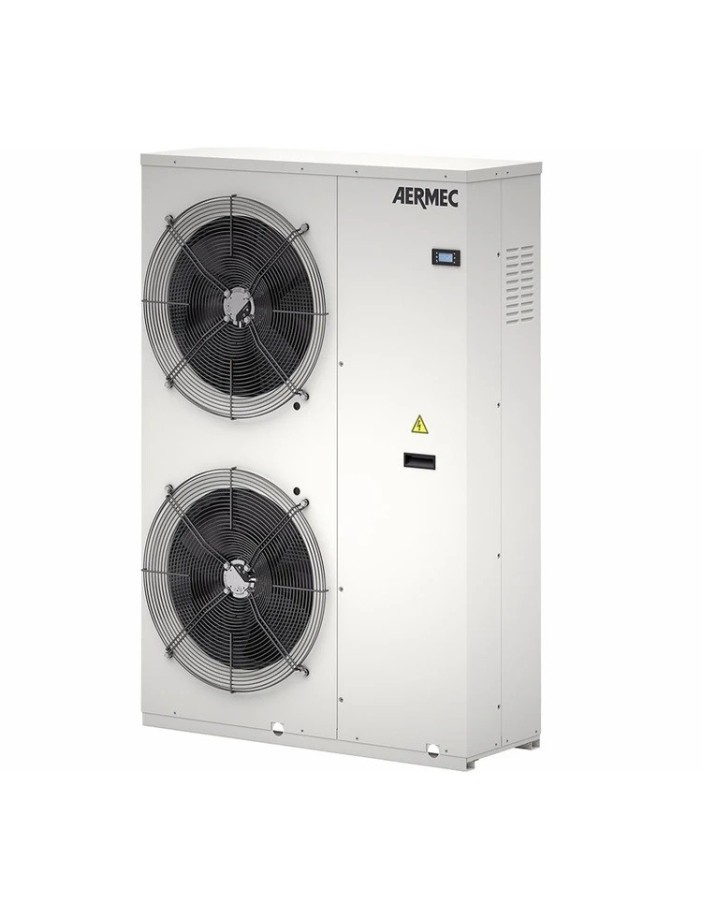

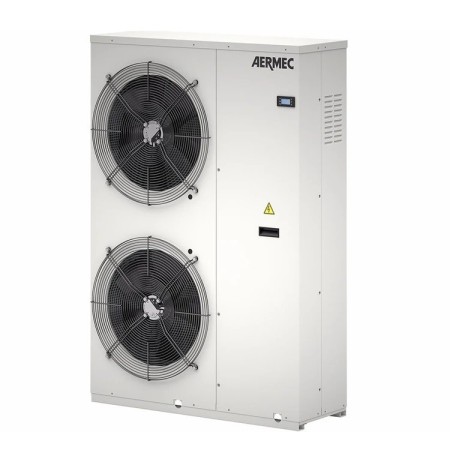

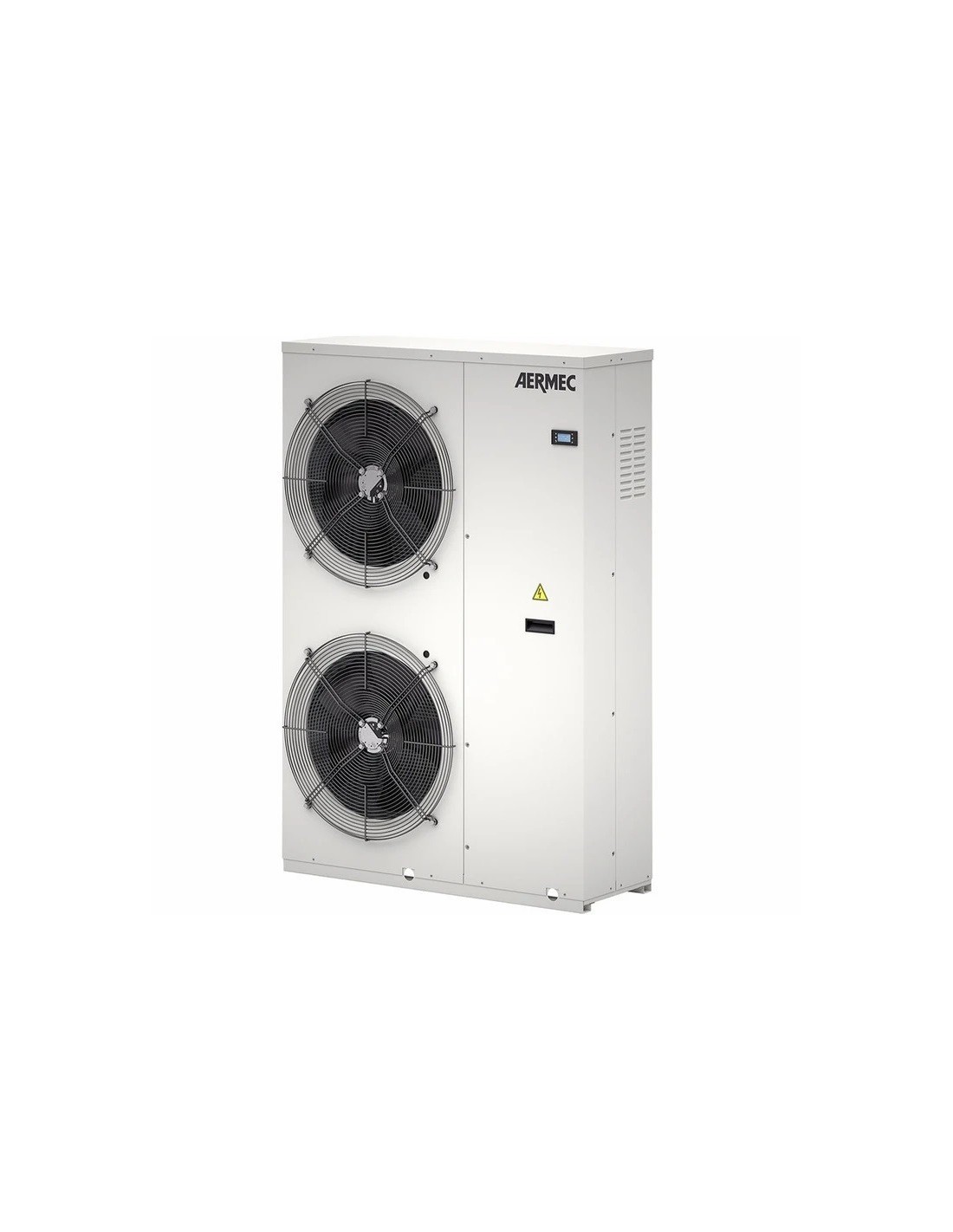

Aermec ANKI045HX°°°°°M° reversible air/water heat pump inverter

Aermec ANKI045HX°°°°°M° – Reversible Air-to-Water Heat Pump

The Aermec ANKI045HX°°°°°M° is a reversible air-cooled heat pump from the ANKI series, for chilled and hot water production (heating, cooling and DHW). Optimised for low-temperature systems (underfloor, fan coils) and radiators. Galvanised steel frame RAL 9003. Eurovent certified.

Configuration

• Version: With inverter pump
• Power supply: Single-phase 230V ~ 50Hz

Energy Performance

• Cooling capacity: 11.8 kW – EER: 2.75
• Heating capacity: 12.2 kW – COP: 3.01
• Seasonal SCOP (35°C): 3.2 | Seasonal SEER: 3.77
• Energy class: A+
• Max water temperature: 60°C | DHW from -20°C to 42°C

Technical Features

• Compressor: Rotary Inverter
• Refrigerant: R410A (GWP 2088) – Charge: 2.3 kg
• Axial fans | Cu/Al coil | Plate heat exchanger
• Sound power: 67.7 dB(A)
• Operating range: -20°C to 46°C (outdoor air)

Control and Connectivity

μPC control panel. Alarm management, time schedules, second set-point. Options: AERLINK Wi-Fi (AerApp/AerPlants iOS+Android), AERBAC-MODU/AERBAC-ONE (BACnet/IP, Modbus TCP/IP), RS-485 Modbus, VMF-E5/E6 supervisors.

Dimensions and Weight

• H×W×D: 1481 × 1000 × 346 mm | Weight: 115 kg

Applications

Ideal for residential and commercial systems with underfloor heating, fan coils or radiators. PV-compatible (SGD accessory). Eligible for energy incentives. Eurovent certified.
