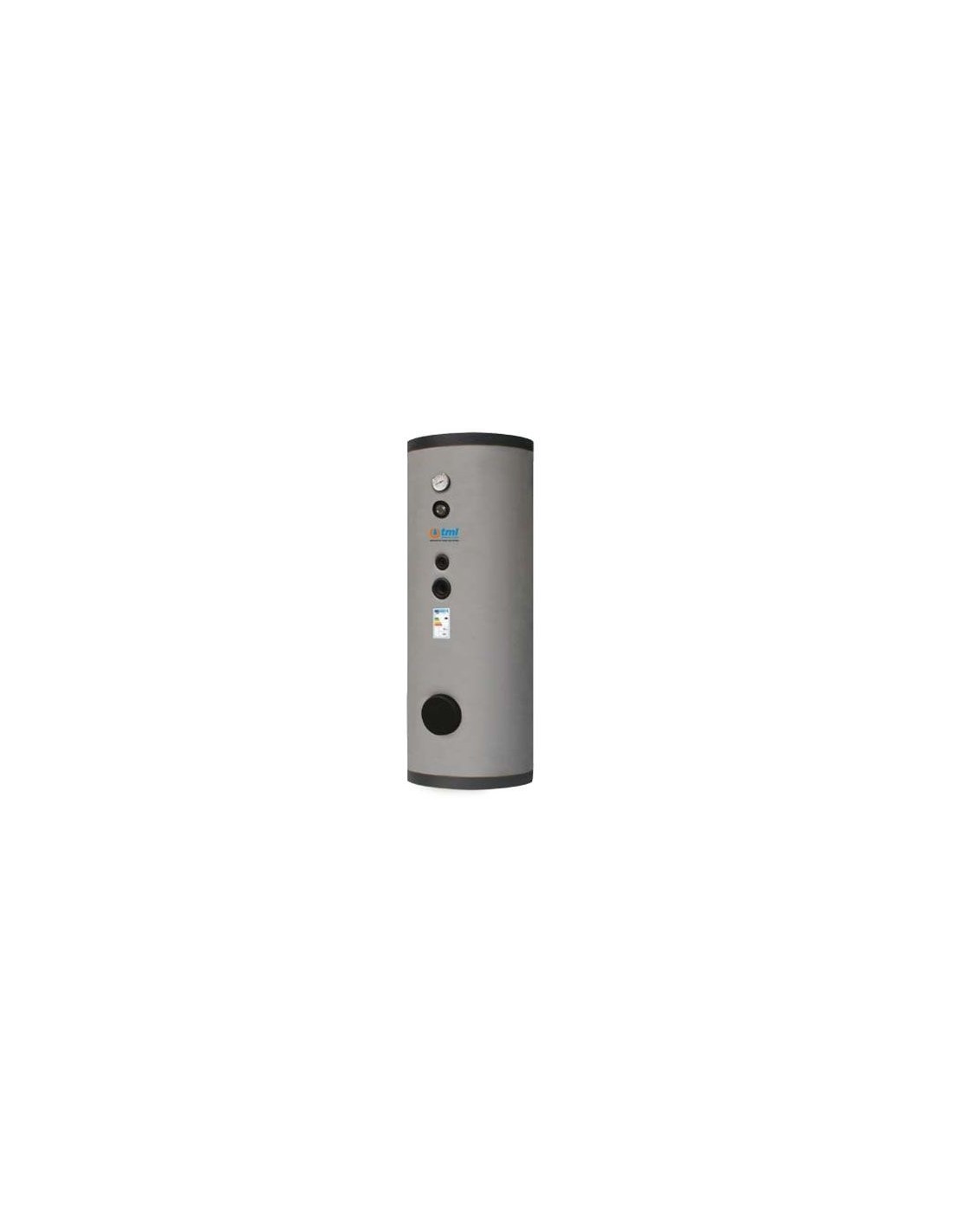

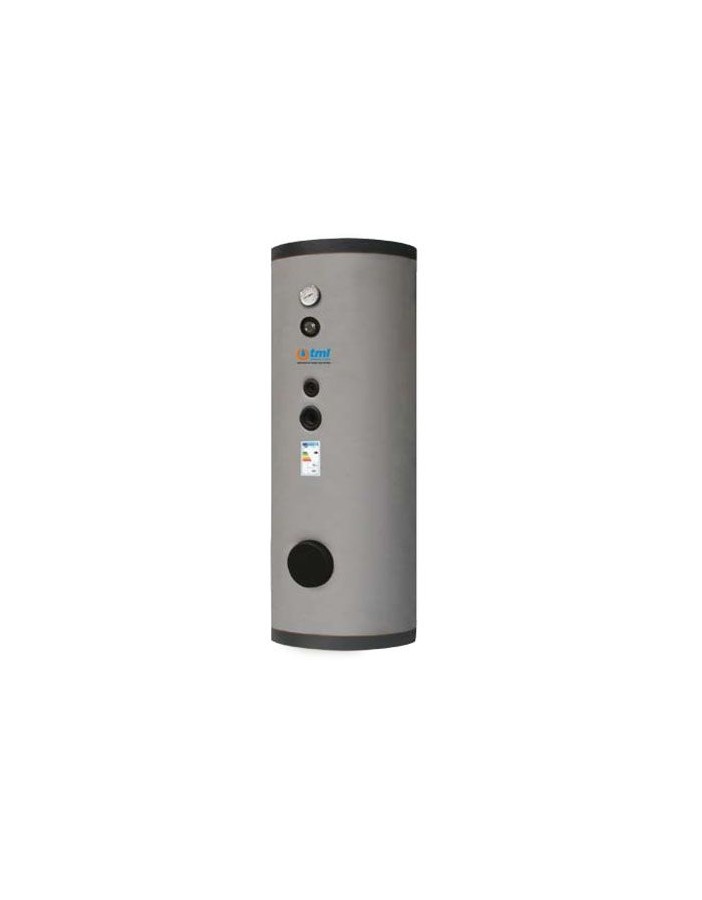

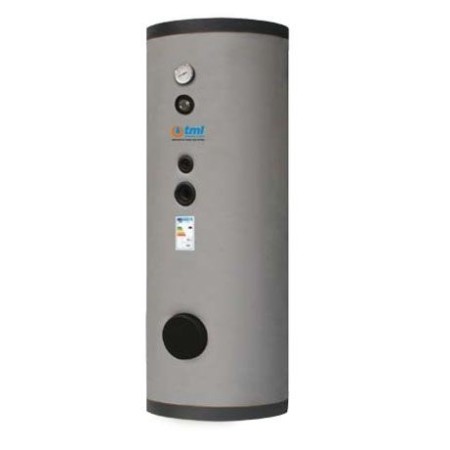

Tml DSFI02500F Kettle lt. 2500 in AISI 316L stainless steel with two heat exchangers with fixed coil flex insulation

Vertical 2495-Litre AISI 316L stainless steel (1.4404) DHW Storage Tank – DSFI02500F

The DSFI02500F is a vertical domestic hot water (DHW) storage tank with a capacity of 2495 litres, manufactured in AISI 316L stainless steel (1.4404) by TML Industrie Loddo. Equipped with two independent fixed spiral coil heat exchangers providing a total heat exchange surface of lower 6.0 m² (solar circuit) + upper 3.0 m² (boiler circuit), it delivers outstanding thermal performance for both residential and large commercial or industrial applications.

Technical Specifications – DSFI02500F

• Tank material: AISI 316L stainless steel (1.4404) – Pickling and passivation inside and out.
• Max pressure / Max temperature (domestic side): 6 bar / 95°C
• Actual capacity: 2495 litres
• Lower heat exchanger (solar): 6.0 m² – Fixed spiral coil – max 10 bar / 95°C
• Upper heat exchanger (boiler): 3.0 m² – max 10 bar / 95°C
• Cathodic protection: Replaceable magnesium anode
• Insulation: Flexible polyester + PVC, thickness 100 mm (Fire class B2 DIN 4102)
• Dimensions: Ø 1200 mm × Height 2640 mm
• Weight: 380 kg
• Electric heater connection: 1½" fitting (heater not included)
• Warranty: 5 years

Why Choose the DSFI02500F?

Two independent coils: the lower coil is dedicated to the solar collector, the upper one to the backup boiler, maximising energy efficiency and solar yield. The vertical design optimises space utilisation and promotes thermal stratification, improving overall system efficiency. Pre-fitted for DHW recirculation, thermostat, temperature sensor, and electric backup heater.

Applications and Compatibility

Ideal for solar thermal systems combined with a gas boiler or heat pump backup. The wide capacity range available across the SFI/DSFI line (150 to 5,000 litres) makes this tank the ideal solution for apartments, villas, hotels, sports facilities, and industrial plants requiring a reliable and continuous supply of domestic hot water.

Standards and Certifications

The DSFI02500F complies with: PED Directive 2014/68/EU (Art. 4 Par. 3 – pressure equipment), Italian D.M. 6 April 2004 N.174 (material suitability for contact with drinking water), ErP Directive 2009/125/EC (energy-related products).
