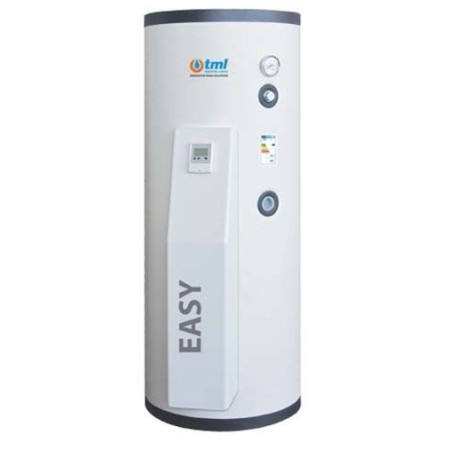

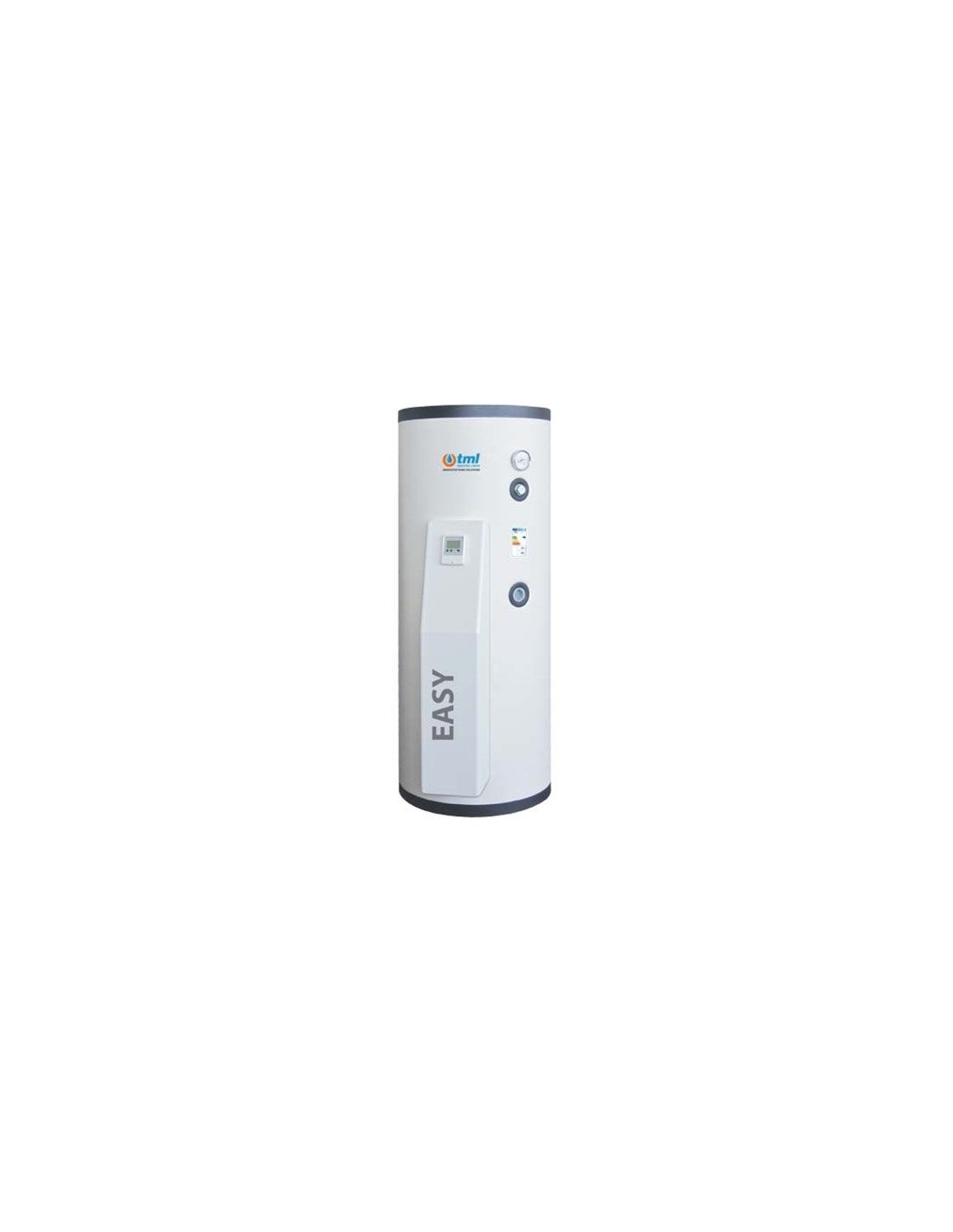

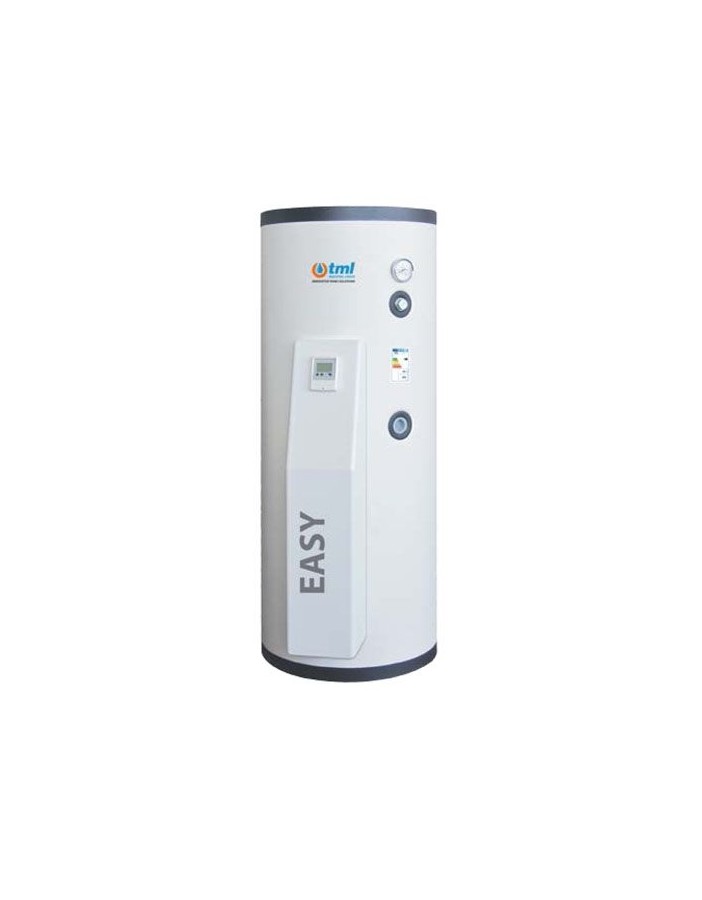

Tml EASYV00200R Glass-porcelain boiler with two fixed coil heat exchangers, rigid insulation with solar module

Solar DHW Storage Tank 189 Litres with Integrated Solar Module – EASYV00200R

The EASYV00200R is a solar domestic hot water (DHW) storage tank with a capacity of 189 litres, manufactured in vitreous enamel carbon steel S235Jr by TML Industrie Loddo and delivered as a complete solar thermal system. It comes supplied with an integrated solar hydraulic module and a pre-configured electronic controller ready for direct connection to the solar collector, greatly simplifying installation and commissioning.

Technical Specifications – EASYV00200R

• Tank material: Carbon steel S235Jr vitreous enamel – Inorganic food-grade lining (DIN 4753.3) – Anti-rust external coating
• Max pressure / Max temperature (domestic side): 8 bar / 95°C
• Actual capacity: 189 litres
• Lower heat exchanger (backup boiler): 1.0 m² – Fixed spiral coil – max 10 bar / 95°C
• Upper heat exchanger (solar circuit): 0.6 m² – Fixed spiral coil – max 10 bar / 95°C
• Cathodic protection: Replaceable magnesium anode
• Insulation: Rigid PU foam + PVC 50 mm (Fire class B3 DIN 4102)
• ErP: Class B – Heat loss: 56.7 W
• Dimensions: Ø 450 mm × Height 1320 mm
• Weight: 82 kg
• Electric heater connection: 1½" fitting (heater not included)
• Warranty: 5 years (tank), 2 years (hydraulic module), 1 year (electrical components)

Integrated Solar Module – Features

• Powder-coated metal cover, insulated and removable
• Flow meter/regulator with system fill and drain valves
• High-efficiency solar pump
• Ball valve with non-return valve (10 mbar)
• 6-bar safety group with 0–10 bar pressure gauge
• Expansion vessel and drain connection

Electronic Controller – Functions

• Differential temperature control on solar circuit
• PWM control of solar pump for maximum efficiency
• Tank temperature monitoring (2 sensors) and collector (1 sensor)
• Volt-free contact for backup boiler or electric heater activation (230 VAC – max 13A – max 2.5 kW)
• Automatic anti-legionella cycle management
• Optional DHW recirculation management with additional sensor
• Intuitive graphic menu in 4 languages

Why Choose the EASY EASYV00200R?

The EASY system is the ideal solution for those who want a complete solar thermal installation without purchasing and installing the hydraulic module and controller separately. Everything is already integrated, tested, and ready to connect to the solar collector. Compatible with TML Premium and Elios solar kits. The system may qualify for Italian Conto Termico 2.0 incentives.

Standards and Certifications

The EASYV00200R complies with: PED Directive 2014/68/EU (Art. 4 Par. 3), Italian D.M. 6 April 2004 N.174, ErP Directive 2009/125/EC.
