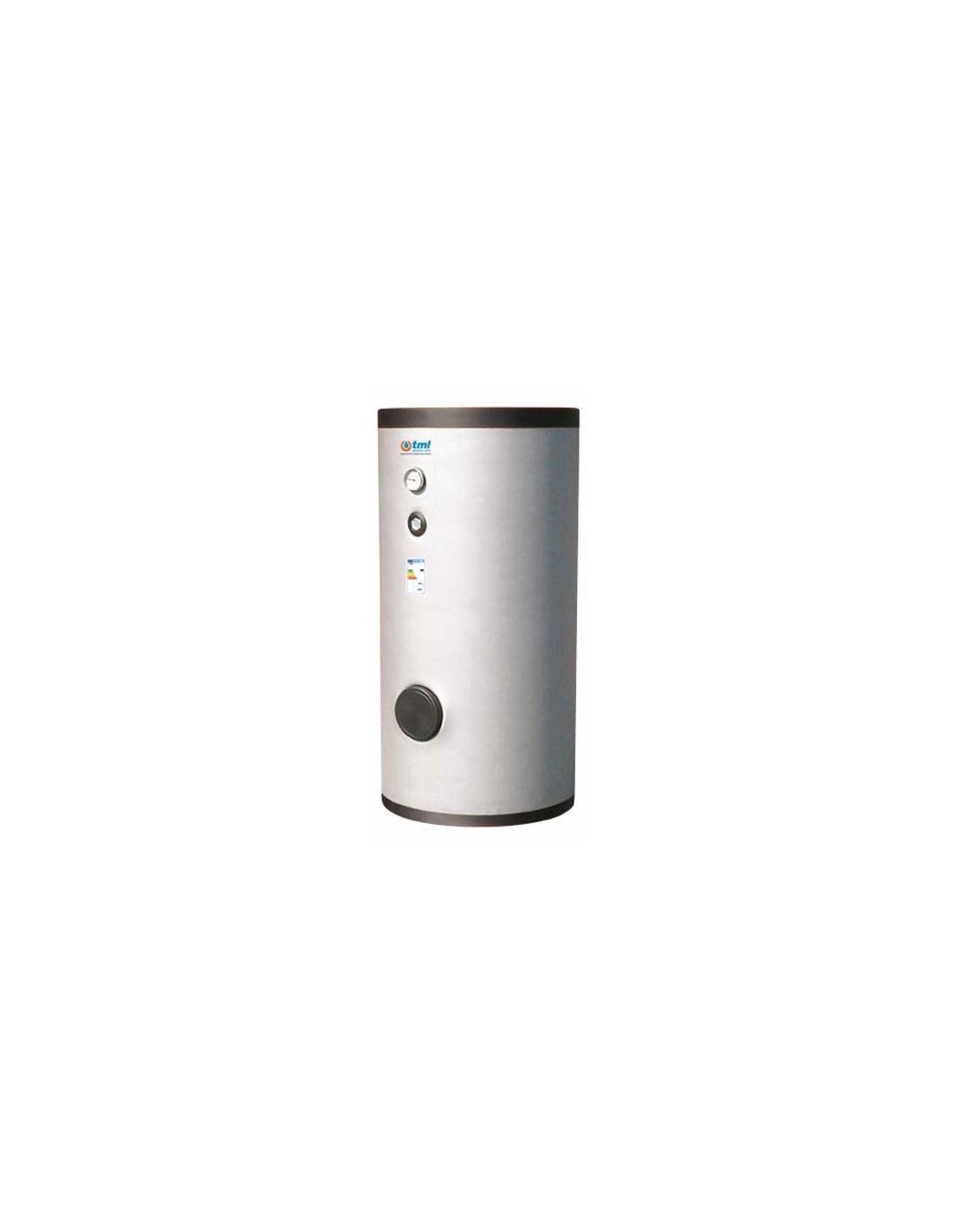

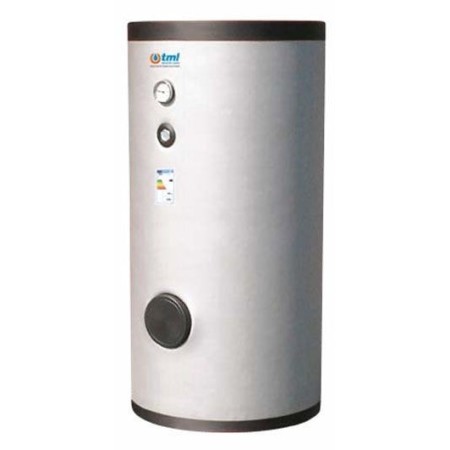

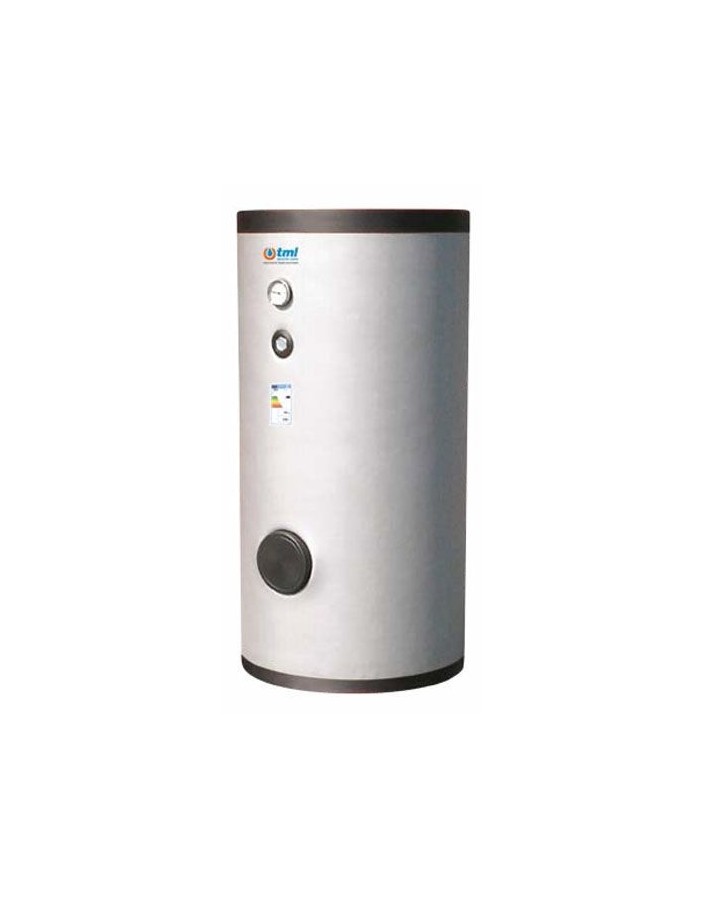

Tml WP1X02000F Kettle lt. 2000 AISI 316L stainless steel for heat pump with a fixed coil heat exchanger flex insulation

Heat Pump DHW Storage Tank 1951 Litres in AISI 316L Stainless Steel – WP1X02000F

The WP1X02000F is a vertical domestic hot water (DHW) storage tank with a capacity of 1951 litres, manufactured in AISI 316L stainless steel (1.4404) by TML Industrie Loddo and specifically designed for DHW production and storage with heat pump systems. Equipped with a fixed double parallel spiral coil heat exchanger offering 10.4 m² of exchange surface, it delivers outstanding thermal performance even at the low primary temperatures typical of heat pump operation.

Technical Specifications – WP1X02000F

• Tank material: AISI 316L stainless steel (1.4404) – Pickling and passivation inside and out
• Max pressure / Max temperature (domestic side): 6 bar / 95°C
• Actual capacity: 1951 litres
• Heat exchanger: 10.4 m² – Fixed double parallel spiral coil – max 10 bar / 95°C
• Cathodic protection: Replaceable magnesium anode
• Insulation: Flexible polyester + PVC, thickness 130 mm (Fire class B2 DIN 4102)
• ErP: Class C – Heat loss: 181.8 W
• Dimensions: Ø 1100 mm × Height 2465 mm
• Weight: 362 kg
• Electric heater connection: 1½" fitting (heater not included)
• Warranty: 5 years

Double Parallel Spiral Coil Technology – The Competitive Advantage

The double parallel spiral coil maximises the contact surface in the coldest zones of the tank, reducing heat pump start/stop cycles and extending system lifespan. This proprietary technology significantly reduces the number of heat pump start/stop cycles, extending its service life and improving the overall coefficient of performance (COP) of the system.

Applications and Compatibility

Ideal for residential systems with air-to-water or water-to-water heat pumps. Also compatible with conventional gas boilers as backup. Pre-fitted for DHW recirculation, temperature sensor, thermostat, and electric backup heater to ensure continuous service even when the primary source is unavailable.

Standards and Certifications

The WP1X02000F complies with: PED Directive 2014/68/EU (Art. 4 Par. 3 – pressure equipment), Italian D.M. 6 April 2004 N.174 (material suitability for contact with drinking water), ErP Directive 2009/125/EC (energy-related products).
