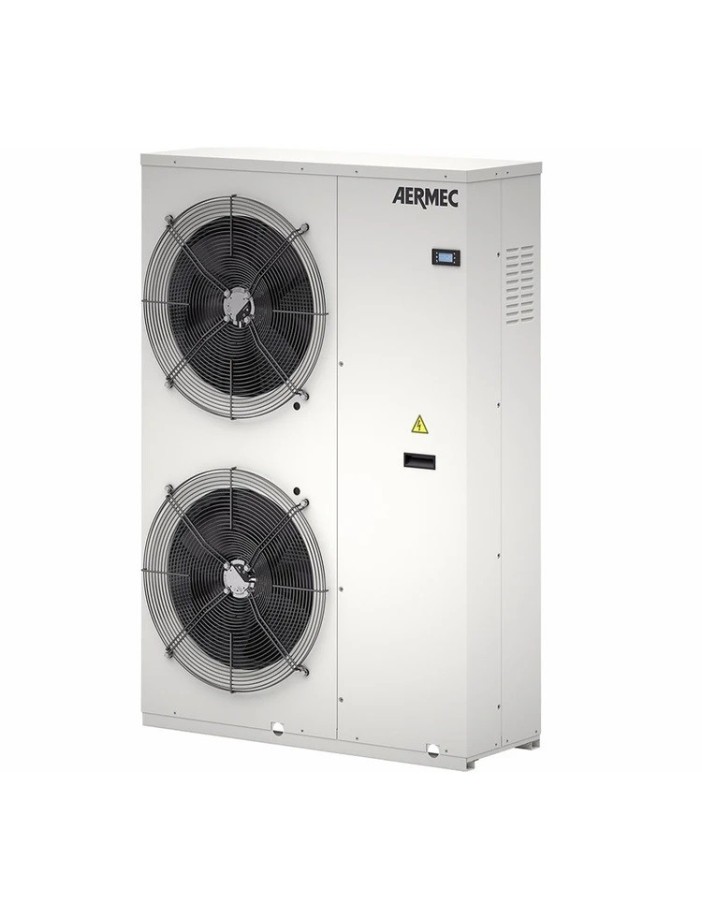

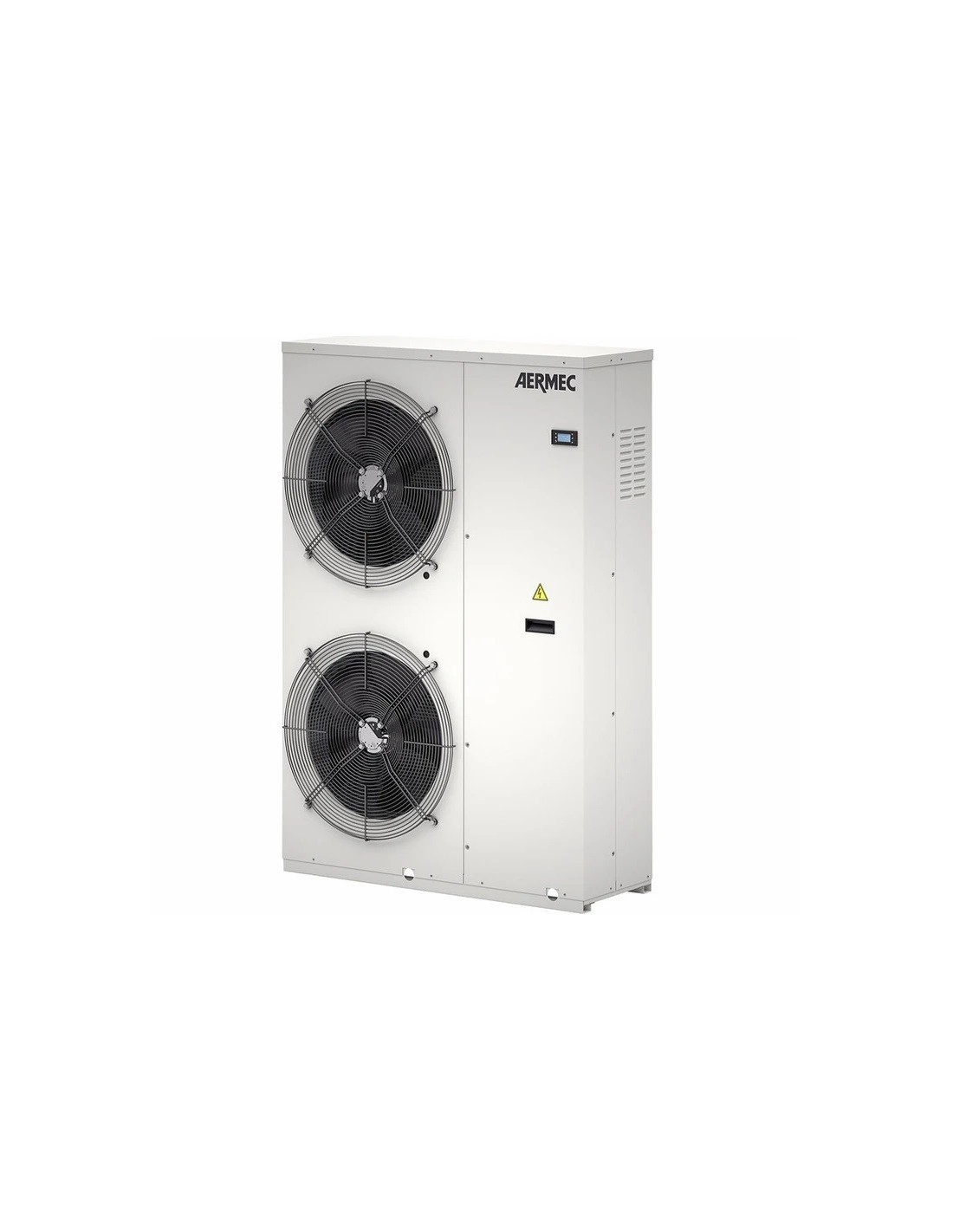

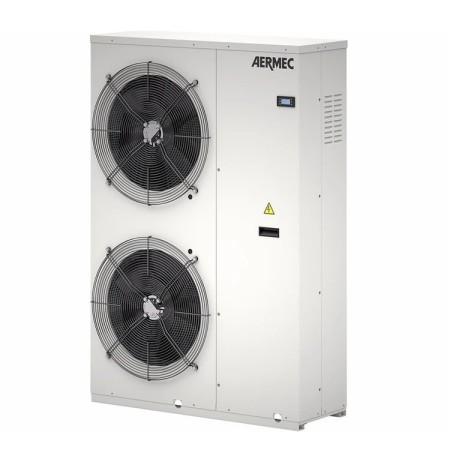

Aermec ANKI080HX°°F°°T° reversible air/water heat pump inverter

Aermec ANKI080HX°°F°°T° – Reversible Air-to-Water Heat Pump

The Aermec ANKI080HX°°F°°T° is a reversible air-cooled heat pump from the ANKI series, for chilled and hot water production (heating, cooling and DHW). Optimised for low-temperature systems (underfloor, fan coils) and radiators. Galvanised steel frame RAL 9003. Eurovent certified.

Configuration

• Version: With inverter pump
• Power supply: Three-phase 400V ~ 3N 50Hz
• Phase-cut fan

Energy Performance

• Cooling capacity: 18.6 kW – EER: 2.41
• Heating capacity: 20.1 kW – COP: 2.8
• Seasonal SCOP (35°C): 3.3 | Seasonal SEER: 3.44
• Energy class: A+
• Max water temperature: 60°C | DHW from -20°C to 42°C

Technical Features

• Compressor: Scroll Inverter
• Refrigerant: R410A (GWP 2088) – Charge: 3.5 kg
• Axial fans | Cu/Al coil | Plate heat exchanger
• Sound power: 69.0 dB(A)
• Operating range: -20°C to 46°C (outdoor air)

Control and Connectivity

μPC control panel. Alarm management, time schedules, second set-point. Options: AERLINK Wi-Fi (AerApp/AerPlants iOS+Android), AERBAC-MODU/AERBAC-ONE (BACnet/IP, Modbus TCP/IP), RS-485 Modbus, VMF-E5/E6 supervisors.

Dimensions and Weight

• H×W×D: 1481 × 1000 × 450 mm | Weight: 178 kg

Applications

Ideal for residential and commercial systems with underfloor heating, fan coils or radiators. PV-compatible (SGD accessory). Eligible for energy incentives. Eurovent certified.
