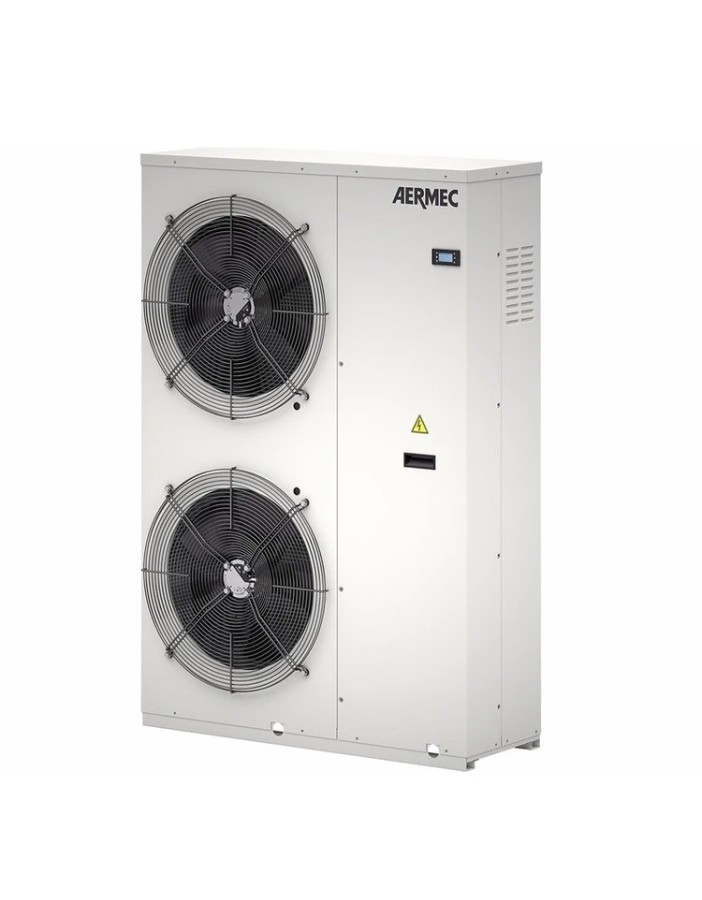

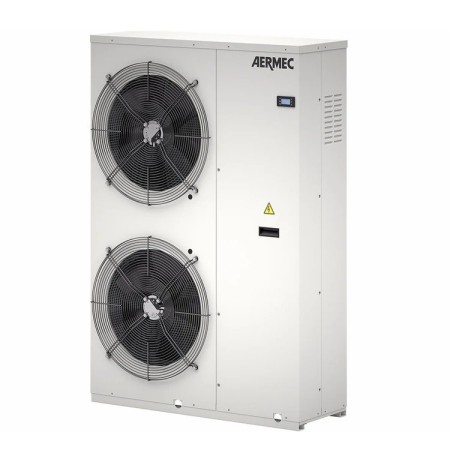

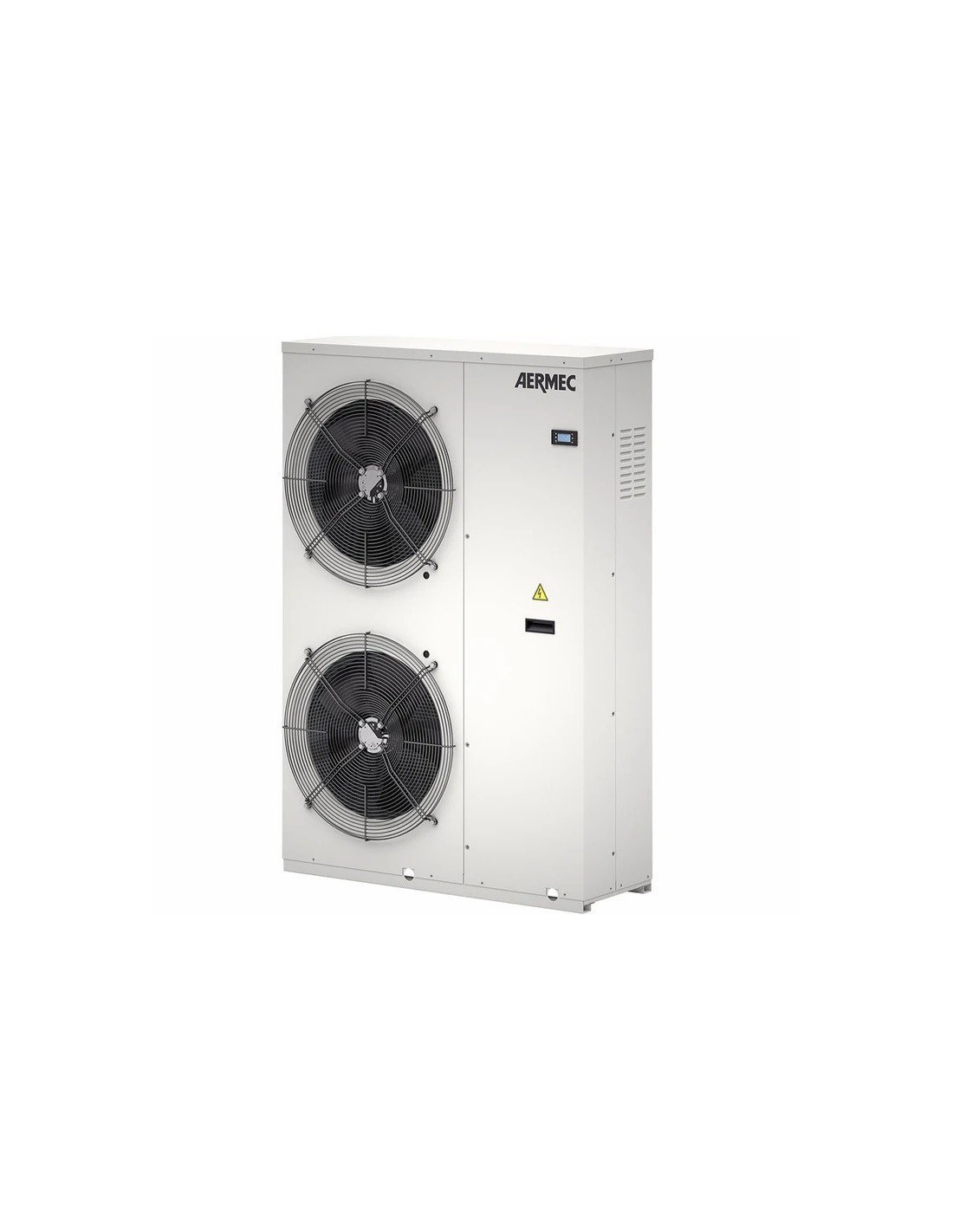

Aermec ANK050HA°°Z°° reversible air/water heat pump

Aermec ANK050HA°°Z°° – Reversible Air-to-Water Heat Pump

The Aermec ANK050HA°°Z°° is a reversible air-cooled heat pump from the ANK series, for chilled and hot water production (heating, cooling and DHW). Optimised for low-temperature systems (underfloor, fan coils) and radiators. Galvanised steel frame RAL 9003. Eurovent certified.

Configuration

• Version: With tank and pump
• Power supply: Three-phase 400V 3N ~ 50Hz
• Electr. low-temp expansion valve (water 4/0°C)

Energy Performance

• Cooling capacity: 13.1 kW – EER: 3.03
• Heating capacity: 15.3 kW – COP: 3.48
• Seasonal SCOP (35°C): 3.6 | Seasonal SEER: 3.45
• Energy class: A+
• Max water temperature: 60°C | DHW from -20°C to 42°C

Technical Features

• Compressor: Scroll On-Off
• Refrigerant: R410A (GWP 2088) – Charge: 5.96 kg
• Axial fans | Cu/Al coil | Plate heat exchanger
• Sound power: 70.5 dB(A)
• Operating range: -20°C to 46°C (outdoor air)

Control and Connectivity

ModuControl control panel. Alarm management, time schedules, second set-point. Options: AERLINK Wi-Fi (AerApp/AerPlants iOS+Android), AERBAC-MODU/AERBAC-ONE (BACnet/IP, Modbus TCP/IP), RS-485 Modbus, VMF-E5/E6 supervisors.

Dimensions and Weight

• H×W×D: 1450 × 1000 × 450 mm | Weight: 238 kg

Applications

Ideal for residential and commercial systems with underfloor heating, fan coils or radiators. PV-compatible (SGD accessory). Eligible for energy incentives. Eurovent certified.
