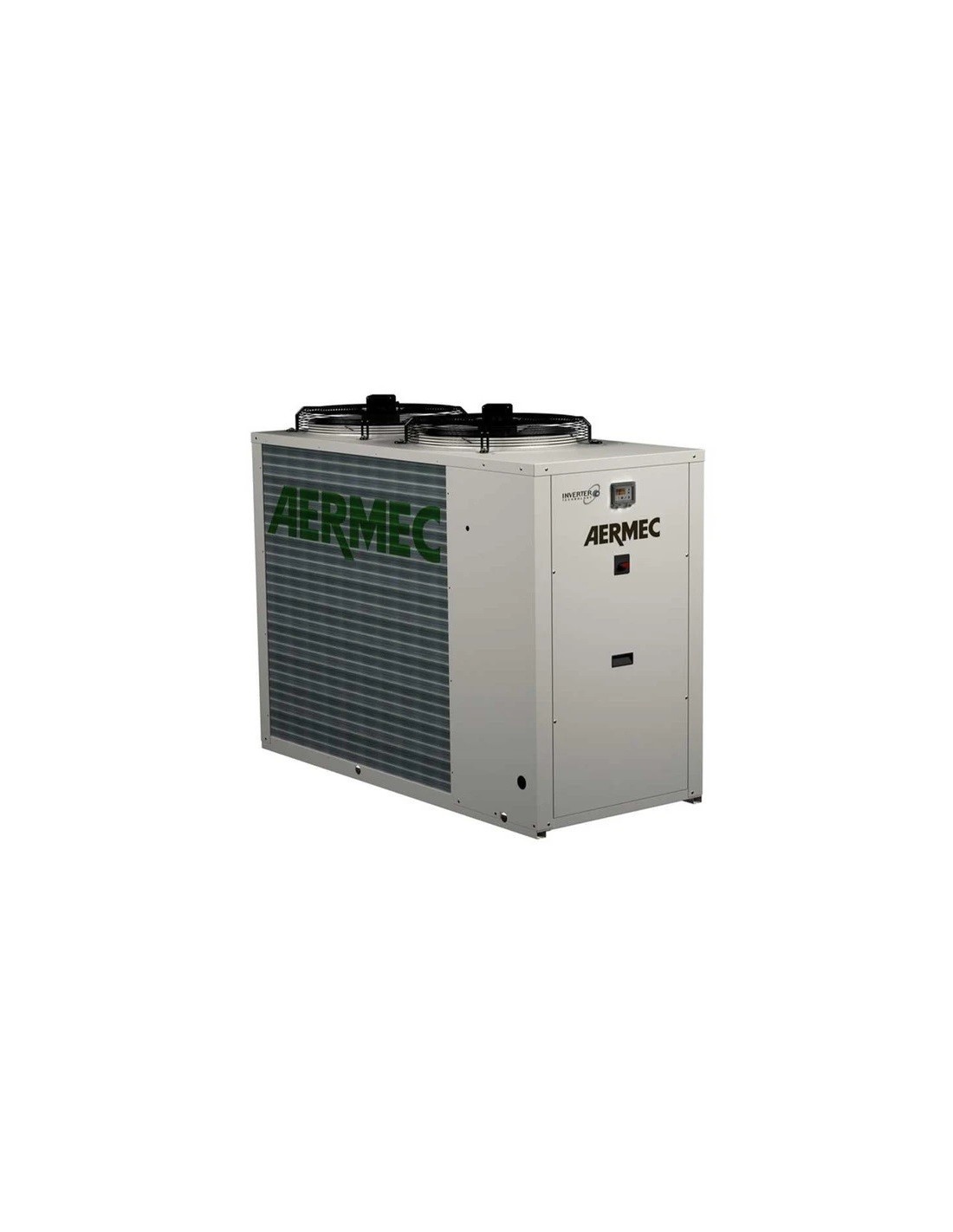

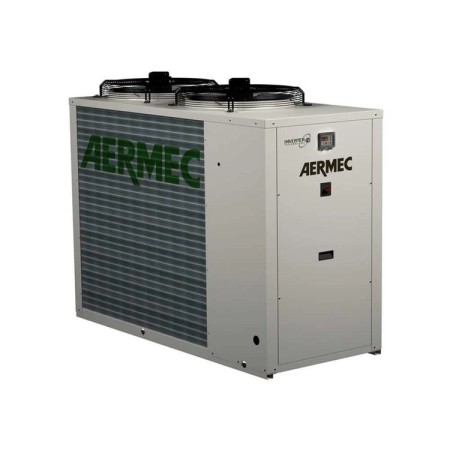

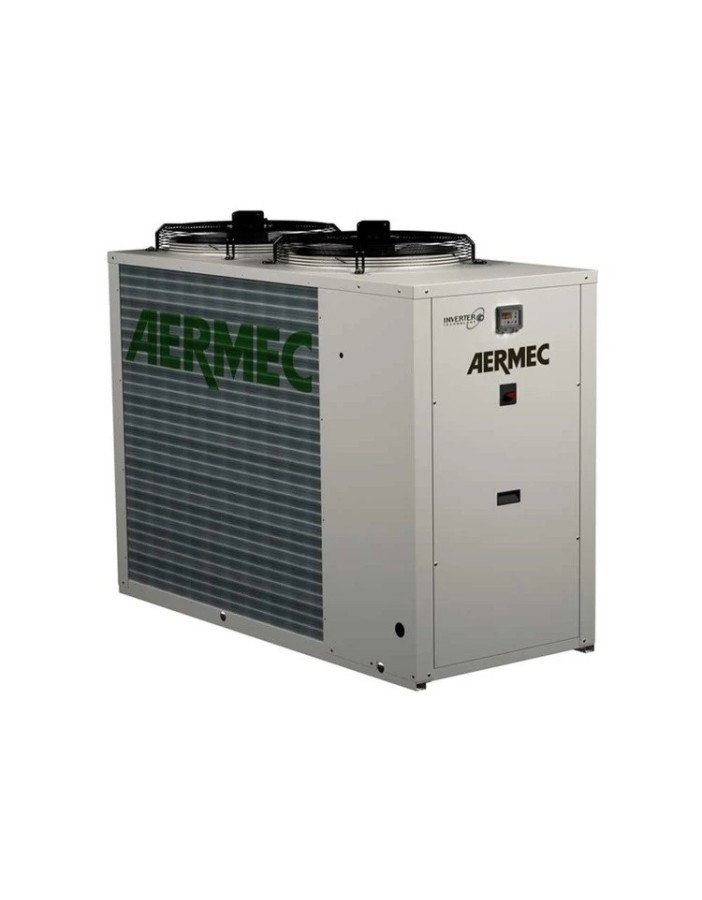

Aermec ANLI101HP°°°°T_S reversible inverter heat pump

Aermec ANLI101HP°°°°T_S – Inverter Reversible Heat Pump

Aermec ANLI101HP°°°°T_S – With integrated on/off pump. Pompa di calore inverter reversibile aria-acqua con compressore scroll DC a magneti permanenti, elevata efficienza ai carichi parziali. Struttura in acciaio zincato RAL 9003. Funzionamento fino a 42°C aria esterna, produzione ACS fino a 60°C. Eligible for 65% tax deduction.

Cooling cond. 12°C/7°C, outdoor 35°C (EN 14511:2022)

• Cooling capacity: 29.2 kW
• Power input: 11.7 kW – Cooling current: 17.0 A
• EER: 2.49 W/W
• Cooling water flow rate: 4,986 l/h – Available head: 92 kPa

Heating cond. 40°C/45°C, outdoor 7°C d.b./6°C w.b. (EN 14511:2022)

• Heating capacity: 31.2 kW
• Power input: 11.4 kW – Heating current: 17.0 A
• COP: 2.74 W/W
• Heating water flow rate: 5,458 l/h – Available head: 76 kPa

Cooling cond. 23°C/18°C, outdoor 35°C (EN 14511:2022)

• Cooling capacity: 42.3 kW – EER 2.96 W/W
• Power input: 14.3 kW – Cooling current: 21.0 A
• Cooling water flow rate: 7,301 l/h – Available head: 81 kPa

Heating cond. 30°C/35°C, outdoor 7°C d.b./6°C w.b. (EN 14511:2022)

• Heating capacity: 33.3 kW – COP 3.17 W/W
• Power input: 10.5 kW – Heating current: 15.0 A
• Heating water flow rate: 5,763 l/h – Available head: 147 kPa

SEER – EN 14825:2018 / SCOP – EN 14825:2018

• SEER (12/7): 3.57 W/W  |  SCOP (35°C): 3.25 W/W
• Energy class: A+ (35°C bassa temperatura)
• Pdesignh: 30.0 kW

Dati tecnici generali

• Compressor: 1× Scroll inverter DC magneti permanenti (high side)
• Refrigerant: R410A – 12,80 kg – GWP 2088 – CO₂eq 26,73 tCO₂eq
• Fans: 2× Assiale – 13.200 m³/h
• Water-side heat exchanger: A piastre – Hydraulic connections: Gas-F 1"¼
• Circolatore: On/Off – Integrated hydraulic kit (expansion vessel, safety valve, air vent)
• Power supply: 400V 3N ~50Hz
• Max current FLA: 23.0 A  |  Starting current LRA: 32.0 A
• Sound power level: 76.0 dB(A)  |  Sound pressure level (10 m): 44.5 dB(A)
• Dimensions (A×B×C) mm: 1450×750×1750
• Operating weight: 308 kg

Applicazioni

Residential and commercial heating/cooling, DHW production, fan-coils, radiant panels. Conto Termico 2.0 eligible. Compatible AERLINK WiFi, MODU-485BL, MULTICONTROL, SAF (DHW), BSKW.

Dati EN 14511:2022 ed EN 14825:2018 – UNI EN ISO 9614-2. Specifiche soggette a modifiche senza preavviso.
