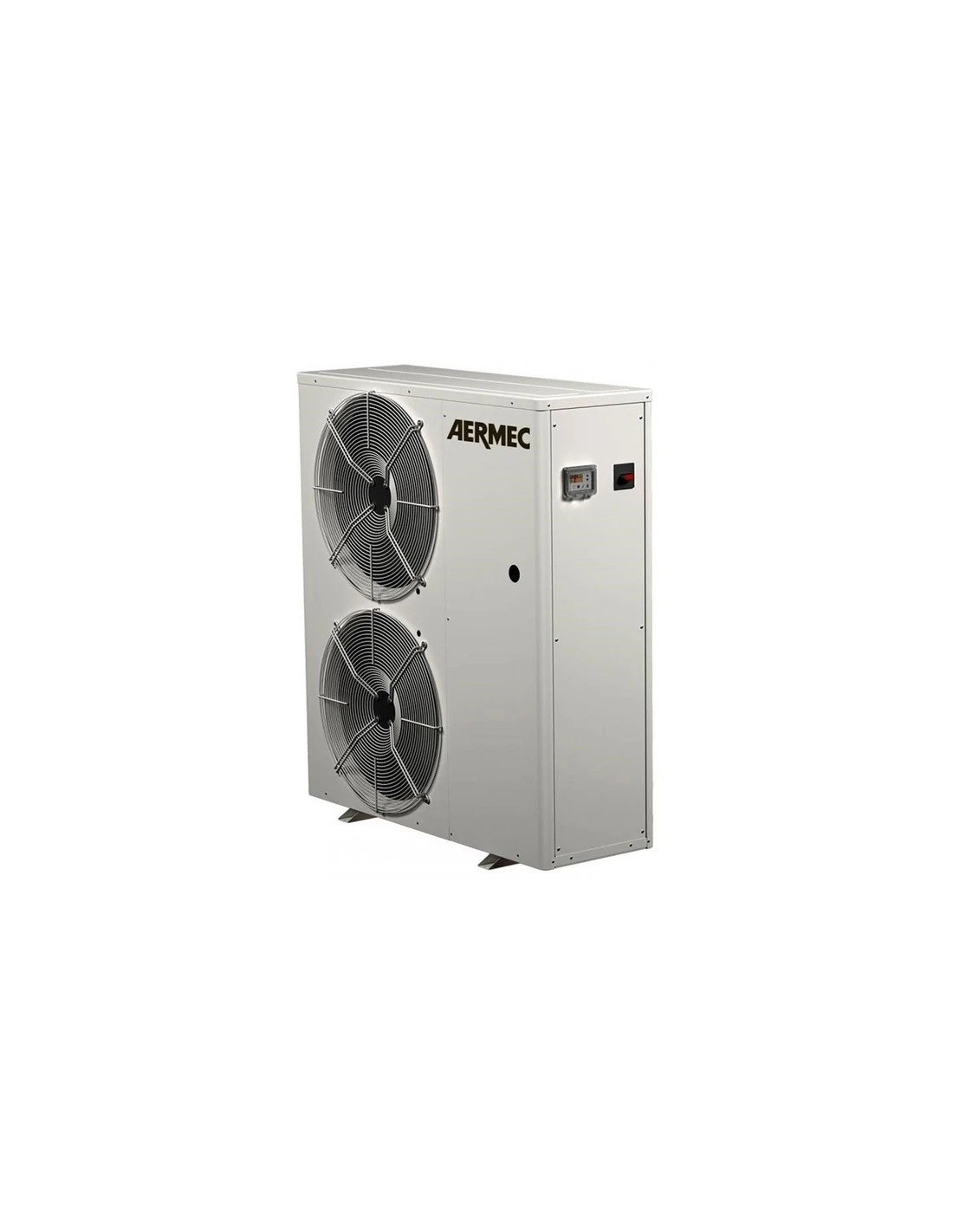

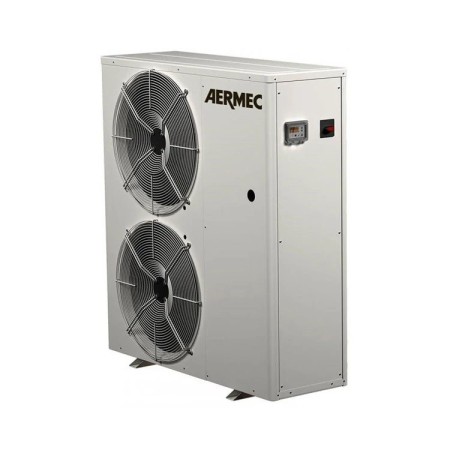

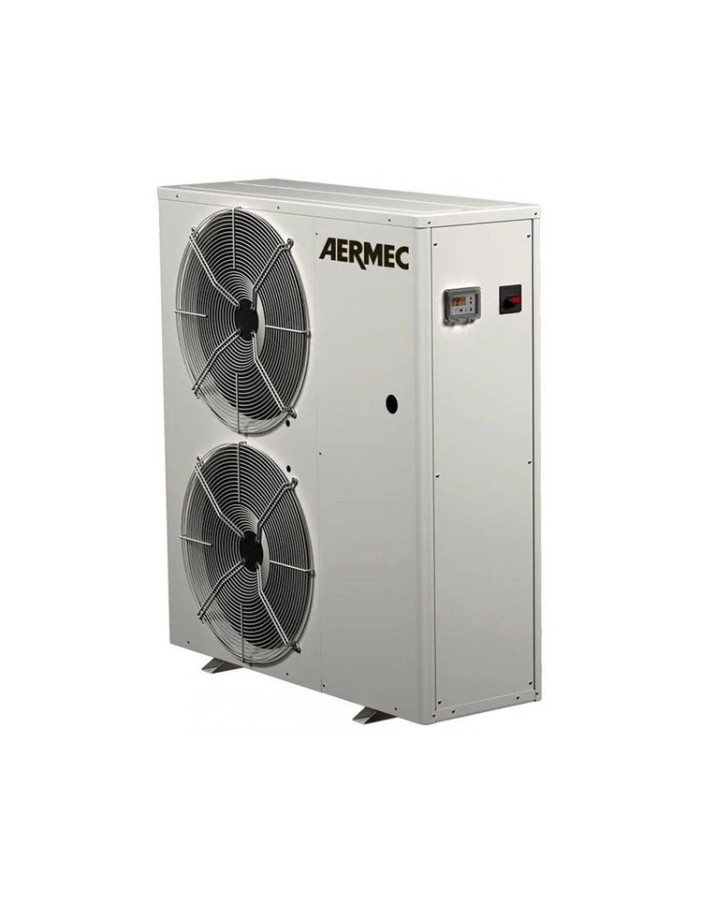

Aermec ANL071HAD°°°° reversible air-to-water heat pump
AERMEC ANL071HAD°°°° – Reversible air-to-water heat pump – With buffer tank and pump, with desuperheater (DHW production).
16.4 kW (freddo 12/7°C) / 17.2 kW (caldo 40/45°C) • EER 2.82 • COP 3.33.
SEER 3.69 • SCOP 3.48 • Classe A+ • R410A refrigerant.
400V 3N~50Hz three-phase.
1165×550×1281 mm • 147 kg.
Description
Reversible air-to-water heat pump AERMEC ANL071HAD°°°° – With buffer tank and pump.
Performance Data
| Cooling capacity (12/7°C – outdoor 35°C) | 16.4 kW |
| Heating capacity (40/45°C – outdoor 7°C) | 17.2 kW |
| EER (cooling) | 2.82 |
| COP (heating) | 3.33 |
| Seasonal SEER | 3.69 |
| Seasonal SCOP | 3.48 |
| Energy class (35°C) | A+ |
| Axial fans | n. 2 |
| Airflow | 7200 m³/h |
| Sound power level (cooling) | 69 dB(A) |
| Sound pressure at 10m (cooling) | 37.6 dB(A) |
| Hydraulic connections | 1" 1/4 Gas-F |
| Compressor | On/Off scroll compressors (n. 1) |
| Refrigerant | R410A refrigerant |
| Power supply | 400V 3N~50Hz three-phase |
Dimensions & Weight
| Height (A) | 1281 mm |
| Width (B) | 1165 mm |
| Depth (C) | 550 mm |
| Operating weight | 147 kg |
Technical Features
- Reversible air-to-water heat pump for heating, cooling and dehumidification – suitable for small and medium applications
- Operating range up to 46°C outdoor temperature – chilled water down to -10°C
- Scroll On/Off compressors – R410A refrigerant – brazed plate heat exchanger
- Galvanized steel casing with polyester paint RAL 9003
- MODUCONTROL controller – 4-digit display with LED status and alarm indicators
- Compatible with VMF system – BACnet/IP, Modbus TCP/IP, RS-485, AerLink WiFi
- Eurovent Certified – eligible for Italian Conto Termico incentive
- Wide range of versions: standard, with pump, with buffer tank, with high-head pump
- Integrated desuperheater for domestic hot water production
- Inverter fans (sizes 031÷091) – continuous condensing temperature control
Compatible Accessories
- Communication: AERBAC-MODU (BACnet/IP, Modbus TCP/IP), MODU-485BL (Modbus RS-485), AERLINK (WiFi)
- Supervision: MULTICONTROL (up to 4 units), PR3 (basic remote panel), PR4 (LCD touch panel)
- Probes: SDHW (DHW), SPLW (secondary circuit), VMF-CRP
- Energy: SGD (PV integration), DRE (soft start)
- Installation: VT (vibration dampers), BDX (condensate tray)
- Anti-freeze heaters (factory fitted): RA (tank), KR (heat exchanger), KRB (base)
- DCPX option: condensing temperature control (sizes 021/026 and 103÷203)
