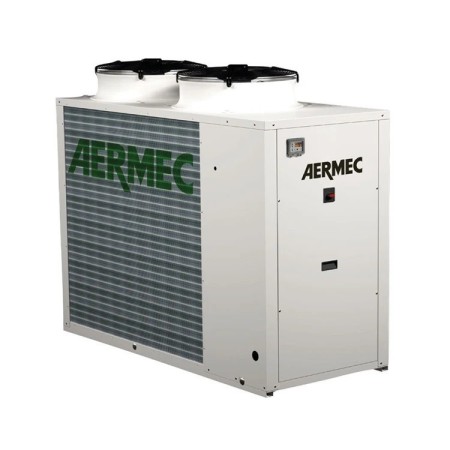

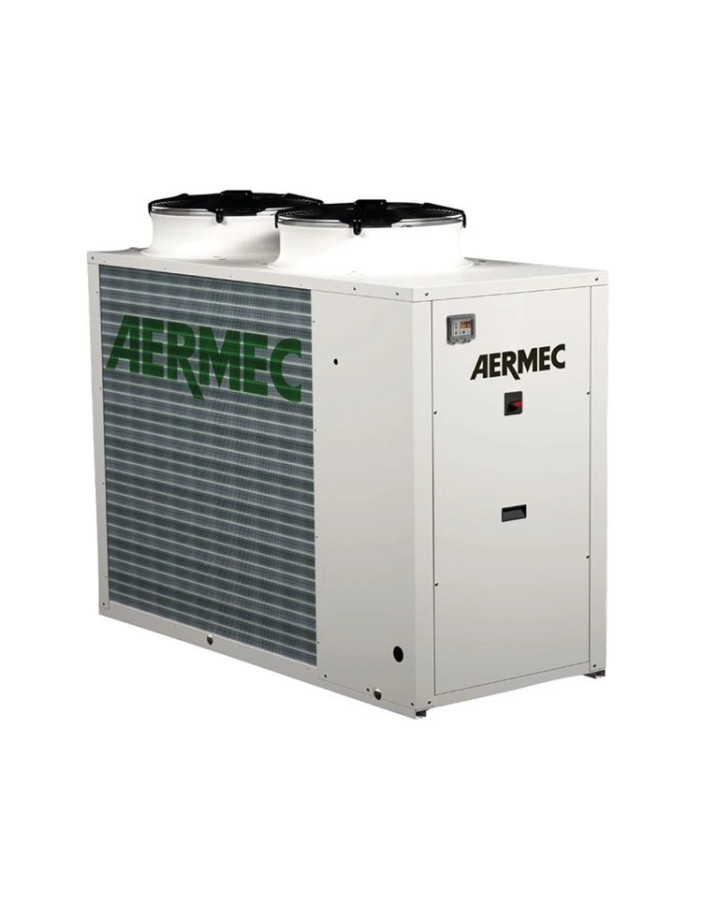

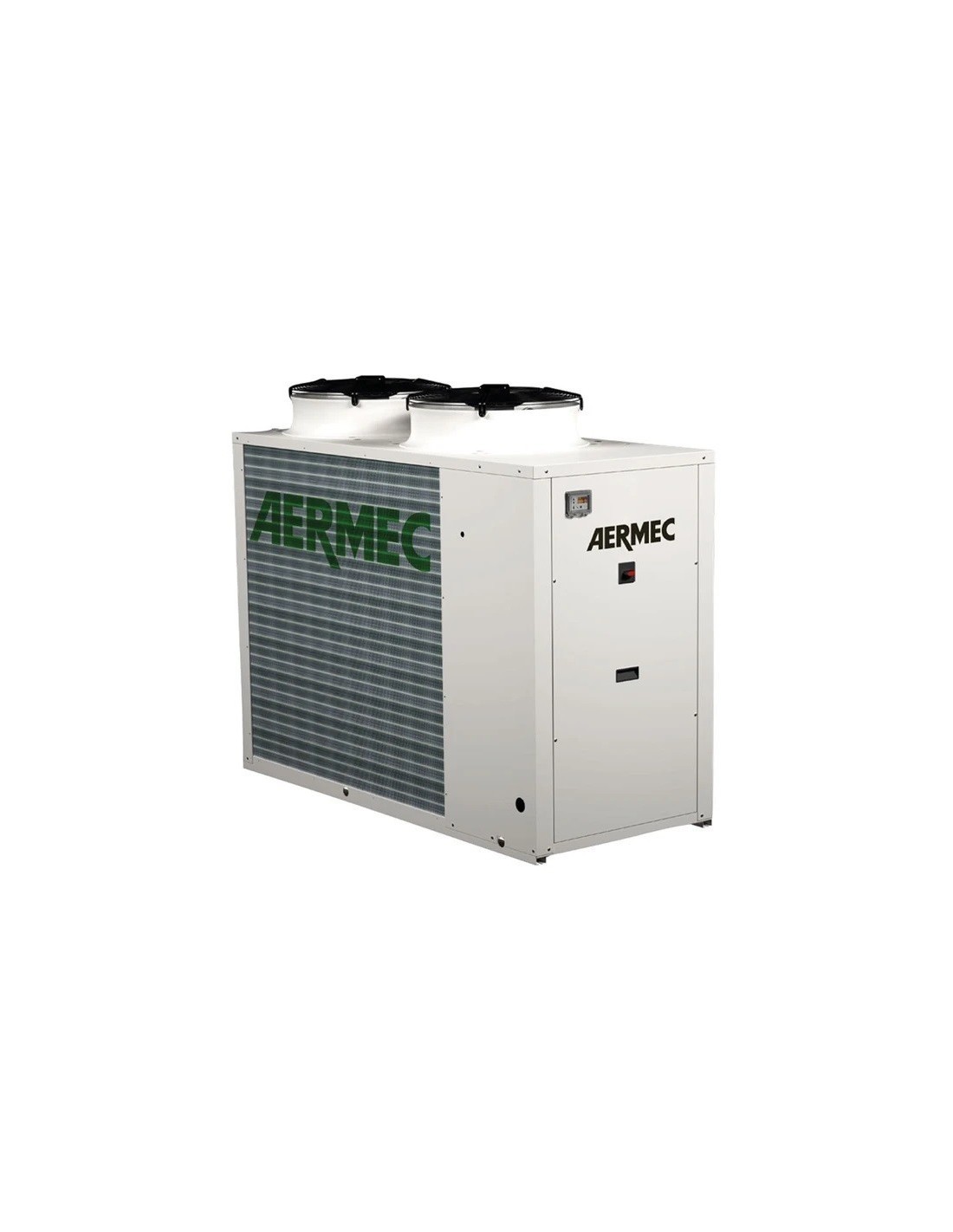

Aermec ANL102°°°°°C° rwater chiller
AERMEC ANL102°°°°°C° – Air-cooled chiller/heat pump – Standard.
25.5 kW (freddo 12/7°C) / 26.2 kW (caldo 40/45°C) • EER 2.79 • COP 2.99.
SEER 3.58 • SCOP 3.53 • Classe A+ • R410A refrigerant.
400V 3N~50Hz three-phase.
1750×750×1450 mm • 270 kg.
Description
Air-cooled chiller/heat pump AERMEC ANL102°°°°°C° – Standard.
Performance Data
| Cooling capacity (12/7°C – outdoor 35°C) | 25.5 kW |
| Heating capacity (40/45°C – outdoor 7°C) | 26.2 kW |
| EER (cooling) | 2.79 |
| COP (heating) | 2.99 |
| Seasonal SEER | 3.58 |
| Seasonal SCOP | 3.53 |
| Energy class (35°C) | A+ |
| Axial fans | n. 2 |
| Airflow | 14000 m³/h |
| Sound power level (cooling) | 76 dB(A) |
| Sound pressure at 10m (cooling) | 44.5 dB(A) |
| Hydraulic connections | 1" 1/4 Gas-F |
| Compressor | On/Off scroll compressors (n. 2) |
| Refrigerant | R410A refrigerant |
| Power supply | 400V 3N~50Hz three-phase |
Dimensions & Weight
| Height (A) | 1450 mm |
| Width (B) | 1750 mm |
| Depth (C) | 750 mm |
| Operating weight | 270 kg |
Technical Features
- Reversible air-to-water heat pump for heating, cooling and dehumidification – suitable for small and medium applications
- Operating range up to 46°C outdoor temperature – chilled water down to -10°C
- Scroll On/Off compressors – R410A refrigerant – brazed plate heat exchanger
- Galvanized steel casing with polyester paint RAL 9003
- MODUCONTROL controller – 4-digit display with LED status and alarm indicators
- Compatible with VMF system – BACnet/IP, Modbus TCP/IP, RS-485, AerLink WiFi
- Eurovent Certified – eligible for Italian Conto Termico incentive
- Wide range of versions: standard, with pump, with buffer tank, with high-head pump
Compatible Accessories
- Communication: AERBAC-MODU (BACnet/IP, Modbus TCP/IP), MODU-485BL (Modbus RS-485), AERLINK (WiFi)
- Supervision: MULTICONTROL (up to 4 units), PR3 (basic remote panel), PR4 (LCD touch panel)
- Probes: SDHW (DHW), SPLW (secondary circuit), VMF-CRP
- Energy: SGD (PV integration), DRE (soft start)
- Installation: VT (vibration dampers), BDX (condensate tray)
- Anti-freeze heaters (factory fitted): RA (tank), KR (heat exchanger), KRB (base)
- DCPX option: condensing temperature control (sizes 021/026 and 103÷203)
