Aermec FCZI201AS inverter-modulated fan coil unit
AERMEC FCZI201AS – High – No On-board Control – 4-pipe – Brushless Inverter.
Vertical installation only (floor-standing or wall-suspended).
1.60 kW / 1.60 kW • 290 m³/h.
Left-hand hydraulic connections • Ø 1/2".
Dimensions 486×750×220 mm • weight 15 kg.
Description
Fan coil unit AERMEC FCZI201AS with Brushless Inverter motor for floor-standing and wall-mounted installation. Vertical installation only (floor-standing or wall-suspended). Compatible with the VMF control system.

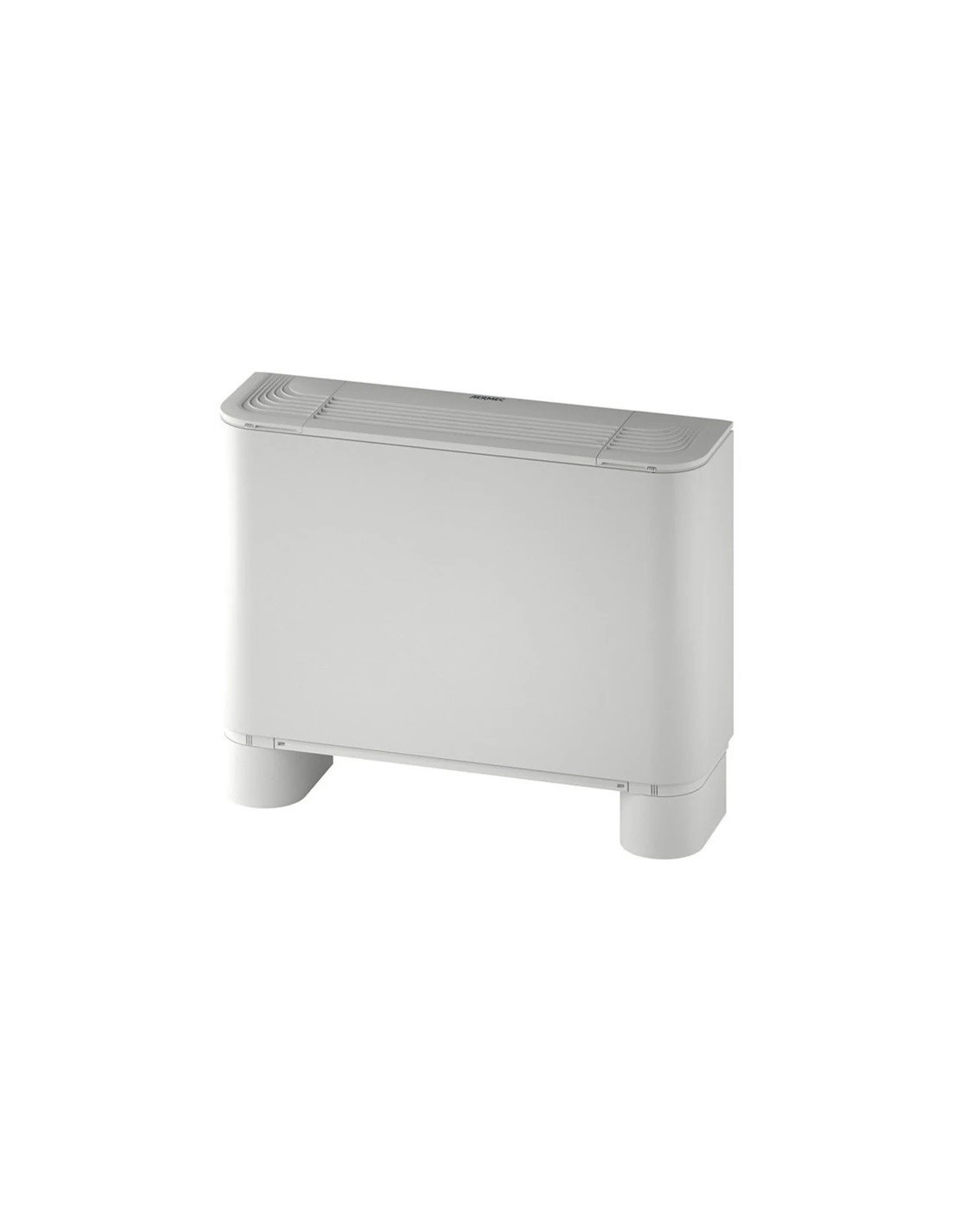

The aesthetic feet visible in the photos (accessory ZXZ) are not included in the supply.
Hydraulic Connections
Left-hand hydraulic connections, Ø 1/2".
Not reversible (4-pipe system with secondary coil).
Performance Data
| Cooling capacity (7/12°C – max speed) | 1.60 kW |
| Heating capacity (70/60°C – max speed) | 1.60 kW |
| Heating capacity (65/55°C – max speed – Eurovent) | 1.60 kW |
| Max airflow (high speed) | 290 m³/h |
| Double-inlet centrifugal fans | n. 1 |
| System | 4-pipe |
| Sound power level (max speed – Eurovent) | 51 dB(A) sound power / 43 dB(A) sound pressure |
| Power supply / Motor | Brushless Inverter 0–10V • 230V~50Hz |
Dimensions & Weight
| Width (B) | 750 mm |
| Height (A) | 486 mm |
| Depth (C) | 220 mm |
| Empty weight | 15 kg |
Technical Features
- Steel casing with polyester anti-corrosion paint RAL 9003 – plastic air-distribution grille RAL 7047
- Brushless Inverter motor with continuous 0–100% speed variation via 0–10V signal – over 50% energy saving vs. standard motors
- Antistatic centrifugal fans with optimised blade profile – removable volutes for easy cleaning
- Finned coil heat exchanger: copper tubes and aluminium fins; manifolds with air vents
- Plastic condensate collection tray with external drain
- Air filter class Coarse 25% – removable and washable
- Backlit touch controller programmable via smart device (AerSuite App)
- Eurovent Certified Performance
Compatible Optional Accessories
- ZXZ – aesthetic structural feet (not included in photos)
- VCZ / VCZD – 3-way or 2-way motorised valve kit
- BCZ4 / BCZ5 – enlarged condensate collection tray
- DSCZ4 – condensate lift pump
- TXBI – on-board thermostat for brushless motor
- T-TOUCH-I – on-board touch control for brushless motor
- VMF system – thermostats and user interfaces (VMF-E19I, DI24, TX, AER503IR)
