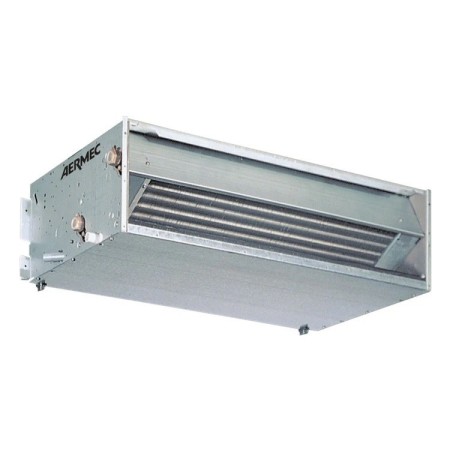

Aermec FCZI502PR inverter-modulated fan coil unit
AERMEC FCZI502PR – Without Casing – Right-hand Connections – 4-pipe (enlarged secondary coil) – Brushless Inverter.
Concealed installation (without casing, for false ceiling or recess).
4.25 kW / 3.73 kW • 720 m³/h.
Right-hand hydraulic connections • Ø 3/4".
Dimensions 486×1200×220 mm • weight 24 kg.
Description
Fan coil unit AERMEC FCZI502PR with Brushless Inverter motor for floor-standing and wall-mounted installation. Concealed installation (without casing, for false ceiling or recess).
Front closure panel PCZ is not included and must be ordered separately.
Hydraulic Connections
Right-hand hydraulic connections, Ø 3/4".
Not reversible during installation.
Performance Data
| Cooling capacity (7/12°C – max speed) | 4.25 kW |
| Heating capacity (70/60°C – max speed) | 3.73 kW |
| Heating capacity (65/55°C – max speed – Eurovent) | 3.73 kW |
| Max airflow (high speed) | 720 m³/h |
| Double-inlet centrifugal fans | n. 2 |
| System | 4-pipe (enlarged secondary coil) |
| Sound power level (max speed – Eurovent) | 56 dB(A) sound power / 48 dB(A) sound pressure |
| Power supply / Motor | Brushless Inverter 0–10V • 230V~50Hz |
Dimensions & Weight
| Width (B) | 1200 mm |
| Height (A) | 486 mm |
| Depth (C) | 220 mm |
| Empty weight | 24 kg |
Technical Features
- Steel casing with polyester anti-corrosion paint RAL 9003 – plastic air-distribution grille RAL 7047
- Brushless Inverter motor with continuous 0–100% speed variation via 0–10V signal – over 50% energy saving vs. standard motors
- Antistatic centrifugal fans with optimised blade profile – removable volutes for easy cleaning
- Finned coil heat exchanger: copper tubes and aluminium fins; manifolds with air vents
- Plastic condensate collection tray with external drain
- Air filter class Coarse 25% – removable and washable
- Backlit touch controller programmable via smart device (AerSuite App)
- Eurovent Certified Performance
Compatible Optional Accessories
- PCZ – front closure panel (not included)
- VCZ / VCZD – 3-way or 2-way motorised valve kit
- BCZ – condensate collection tray
