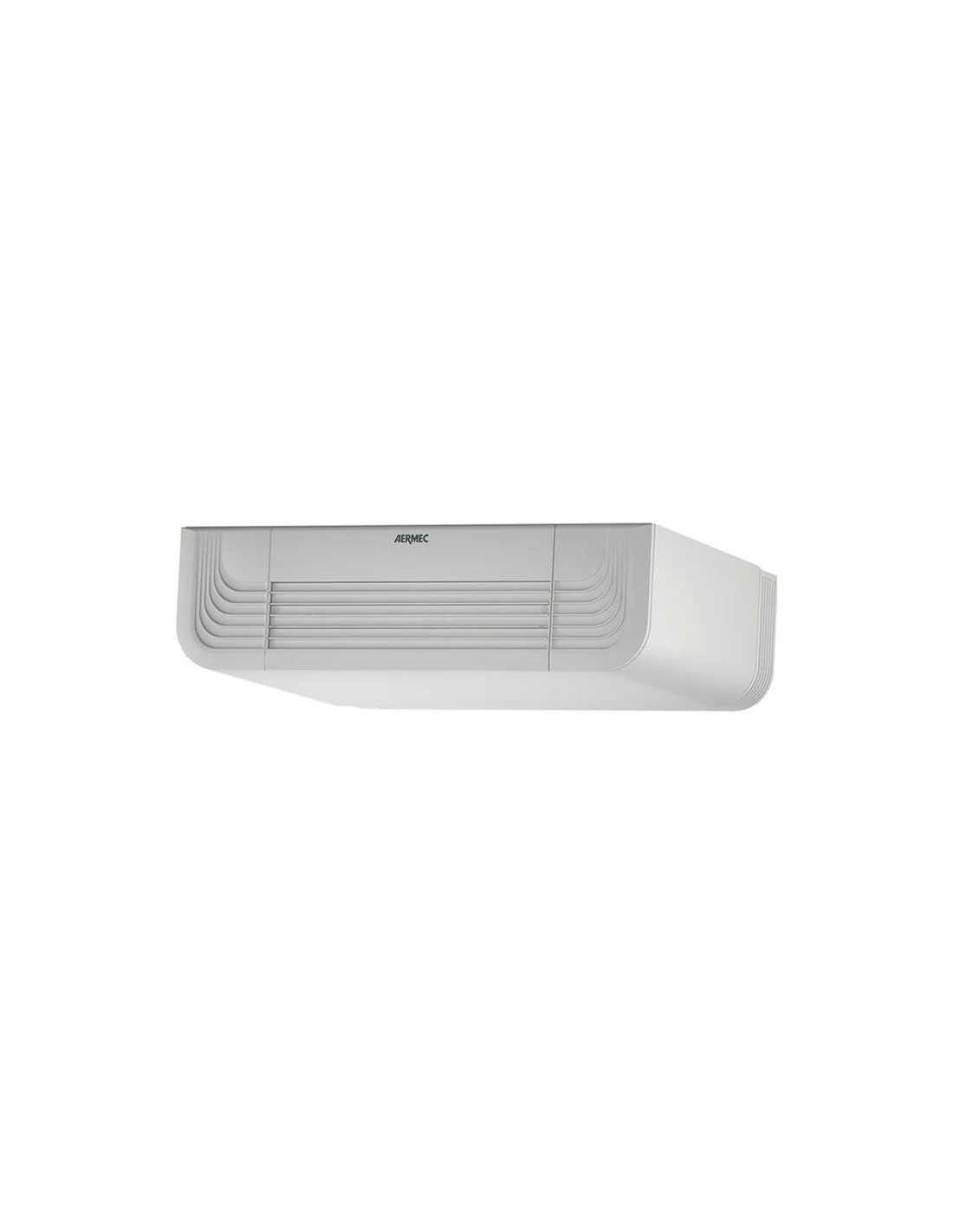

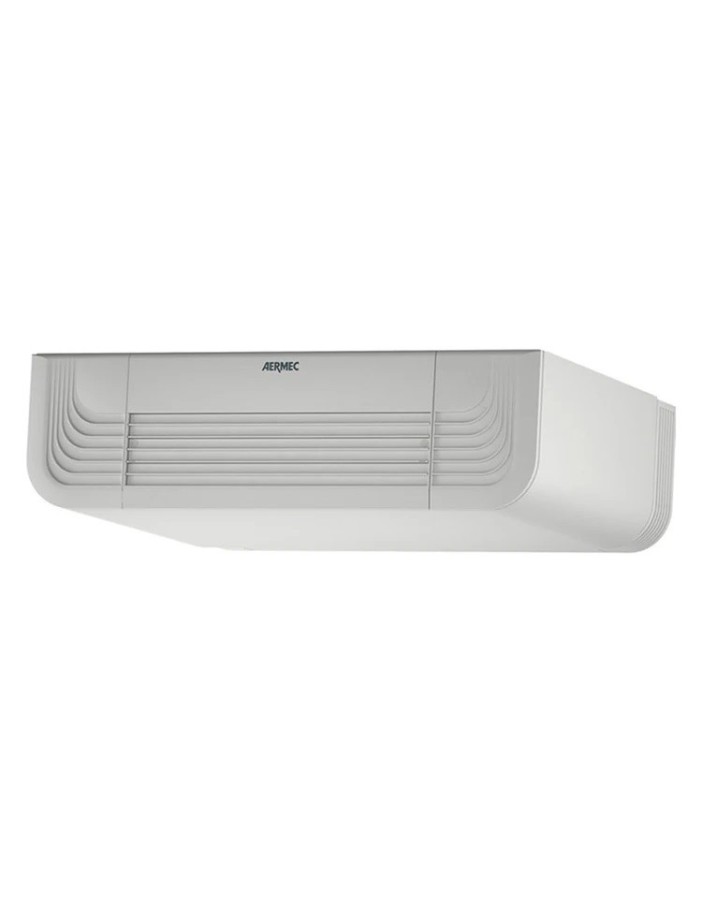

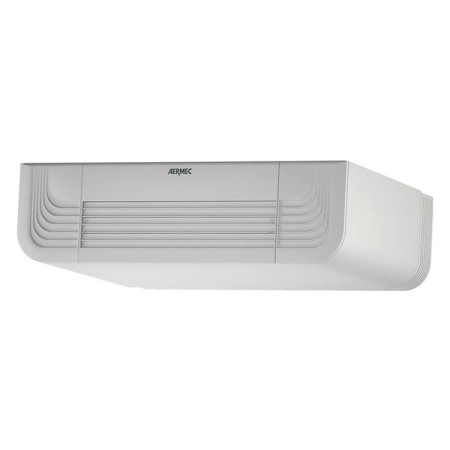

Aermec FCZ102UA fan coil unit
AERMEC FCZ102UA – Universal – Fixed Grille – No On-board Control – 4-pipe (enlarged secondary coil).
Vertical and horizontal installation (compatible with 2 and 4-pipe systems).
1.00 kW cooling • 1.17 kW heating • 200 m³/h.
Left-hand hydraulic connections (standard) • Ø 1/2".
Dimensions 486×640×220 mm • weight 14 kg • power supply 230V∼50Hz.
Description
Fan coil unit AERMEC FCZ102UA for floor-standing and wall-mounted installation. Vertical and horizontal installation (compatible with 2 and 4-pipe systems). Compatible with the VMF control system.
Aesthetic feet ZXZ and decorative grille GA are not included. Add structural kit FIKIT for floor installation.
Hydraulic Connections
Left-hand hydraulic connections (standard), Ø 1/2".
Not reversible (4-pipe system with secondary coil).
Performance Data
| Cooling capacity (7/12°C – max speed) | 1.00 kW |
| Heating capacity (70/60°C – max speed) | 1.17 kW |
| Heating capacity (65/55°C – max speed – Eurovent) | 1.17 kW |
| Max airflow (high speed) | 200 m³/h |
| Double-inlet centrifugal fans | n. 1 |
| System | 4-pipe (enlarged secondary coil) |
| Sound level (max speed – Eurovent) | 45 dB(A) sound power / 37 dB(A) sound pressure |
| Power supply | 230V∼50Hz |
Dimensions & Weight
| Width (B) | 640 mm |
| Height (A) | 486 mm |
| Depth (C) | 220 mm |
| Empty weight | 14 kg |
Technical Features
- Steel casing with polyester anti-corrosion paint RAL 9003 – plastic air-distribution grille RAL 7047
- Finned coil heat exchanger: copper tubes and aluminium fins; manifolds with air vents
- Plastic condensate collection tray with external drain
- Air filter class Coarse 25% – removable and washable
- Single-phase motor, 3 speeds, permanent capacitor, on anti-vibration mounts
- Eurovent Certified Performance
Compatible Optional Accessories
- ZXZ – aesthetic structural feet (not included)
- GA – decorative bottom intake grille
- FIKIT – structural bracket for floor installation (required with GA)
- AMP / AMPZ – suspended installation kit
- VCZ / VCZD – 3-way or 2-way motorised valve kit
- BCZ4 / BCZ5 / BCZ6 – enlarged condensate collection tray
- VMF system – thermostats and user interfaces (VMF-E19, DI24, VMF-E3, etc.)
