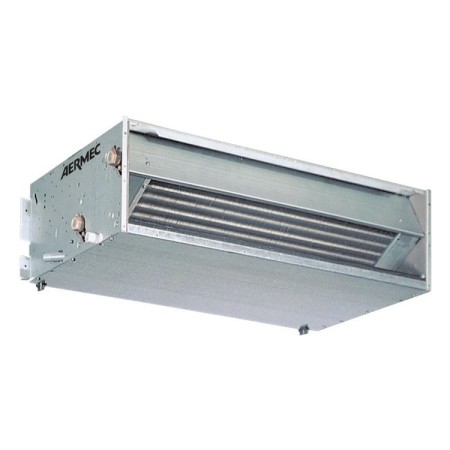

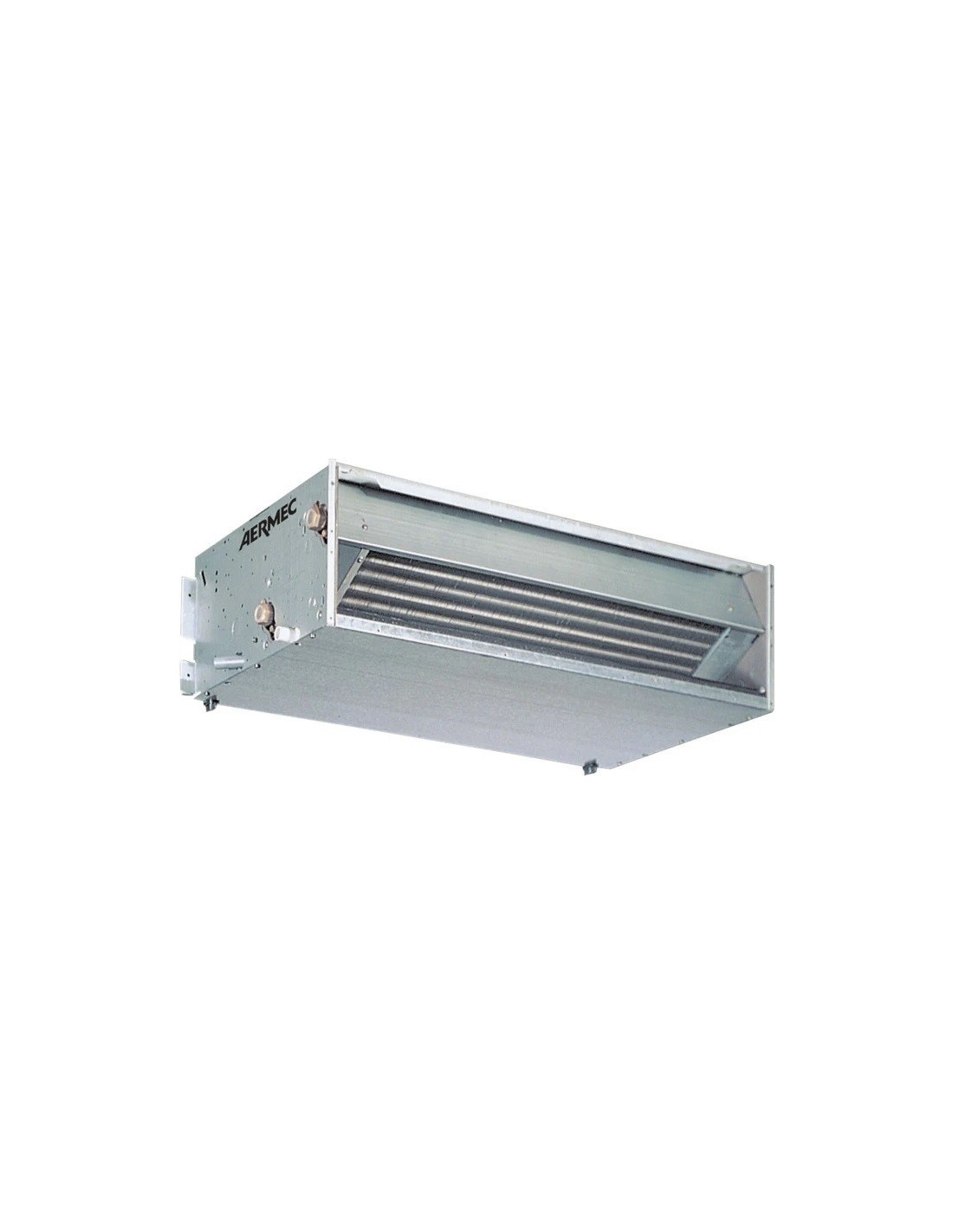

Aermec FCZ150P fan coil unit
AERMEC FCZ150P – Without Casing – Left-hand Connections – 2-pipe.
Concealed installation (for false ceiling or recess, without casing).
1.27 kW cooling • 2.65 kW heating • 200 m³/h.
Heating capacity low temp. (45/40°C): 1.31 kW.
Left-hand hydraulic connections (standard) • Ø 1/2".
Dimensions 486×640×220 mm • weight 14 kg • power supply 230V∼50Hz.
Description
Fan coil unit AERMEC FCZ150P for floor-standing and wall-mounted installation. Concealed installation (for false ceiling or recess, without casing).
Front closure panel PCZ is not included and must be ordered separately.
Hydraulic Connections
Left-hand hydraulic connections (standard), Ø 1/2".
Reversible during installation. Also available to order with right-hand connections.
Performance Data
| Cooling capacity (7/12°C – max speed) | 1.27 kW |
| Heating capacity (70/60°C – max speed) | 2.65 kW |
| Heating capacity low temp. (45/40°C – Eurovent) | 1.31 kW |
| Max airflow (high speed) | 200 m³/h |
| Double-inlet centrifugal fans | n. 1 |
| System | 2-pipe |
| Sound level (max speed – Eurovent) | 45 dB(A) sound power / 37 dB(A) sound pressure |
| Power supply | 230V∼50Hz |
Dimensions & Weight
| Width (B) | 640 mm |
| Height (A) | 486 mm |
| Depth (C) | 220 mm |
| Empty weight | 14 kg |
Technical Features
- Steel casing with polyester anti-corrosion paint RAL 9003 – plastic air-distribution grille RAL 7047
- Finned coil heat exchanger: copper tubes and aluminium fins; manifolds with air vents
- Plastic condensate collection tray with external drain
- Air filter class Coarse 25% – removable and washable
- Single-phase motor, 3 speeds, permanent capacitor, on anti-vibration mounts
- Eurovent Certified Performance
Compatible Optional Accessories
- PCZ – front closure panel (not included)
- VCZ / VCZD – 3-way or 2-way motorised valve kit
- BCZ – condensate collection tray
