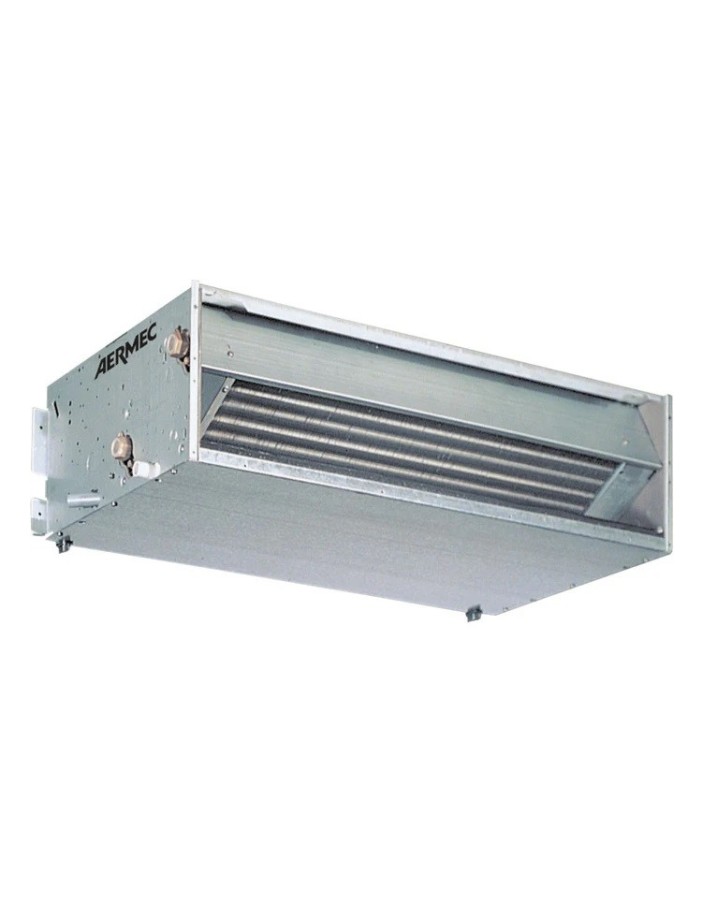

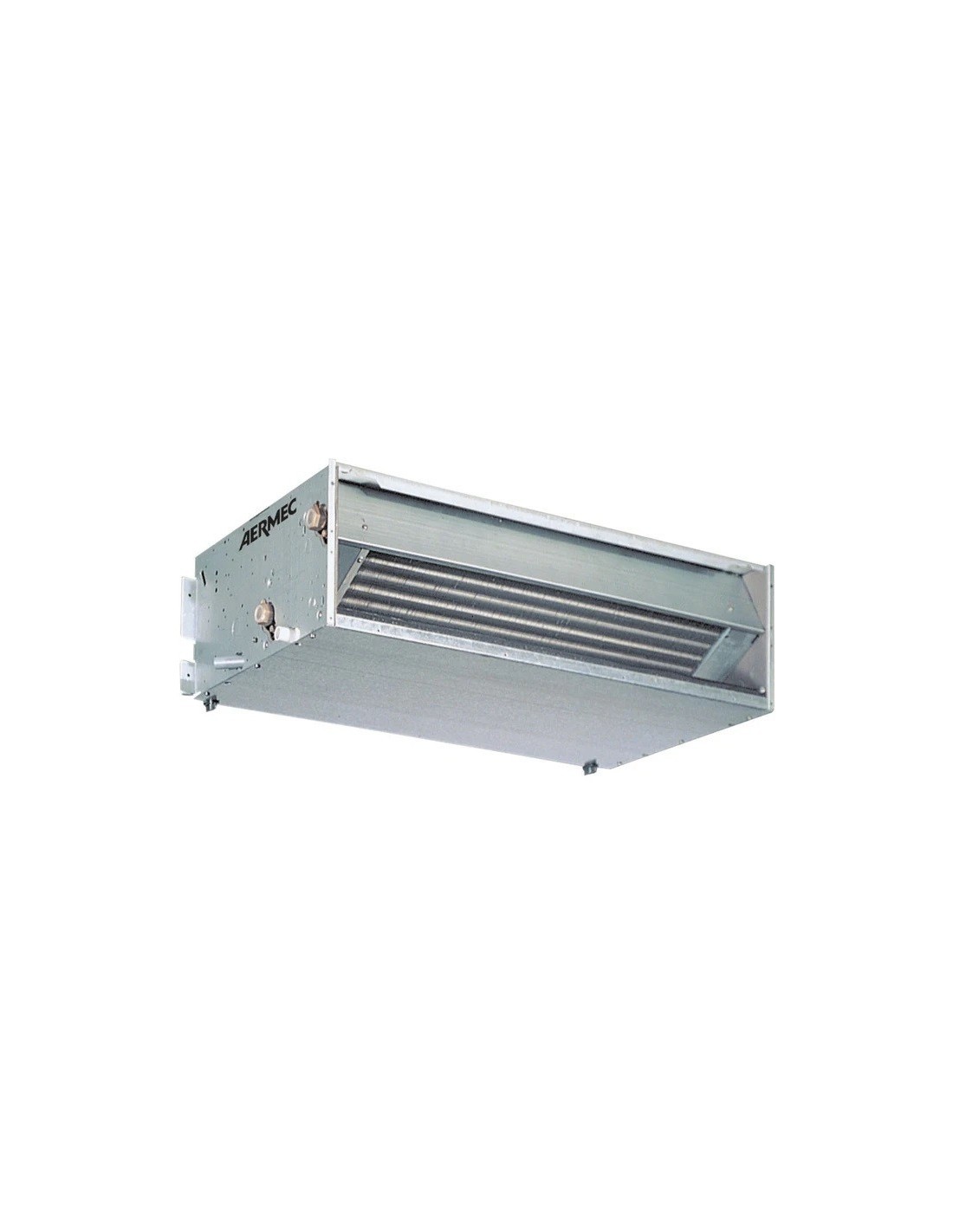

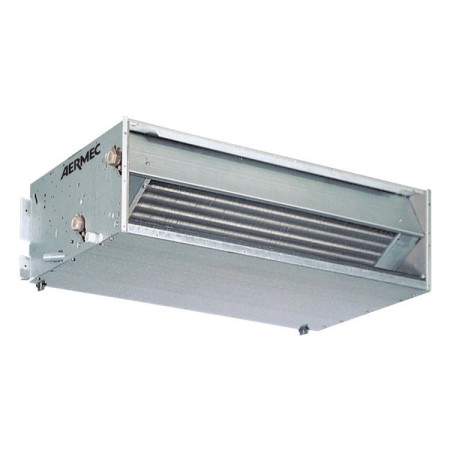

Aermec FCZ201POR fan coil unit
AERMEC FCZ201POR – Sans Habillage – Raccords Opposés – 4-pipe.
Concealed installation (for false ceiling or recess, without casing).
1.60 kW cooling • 1.60 kW heating • 290 m³/h.
Right-hand hydraulic connections • Ø 1/2".
Dimensions 486×750×220 mm • weight 15 kg • power supply 230V∼50Hz.
Description
Fan coil unit AERMEC FCZ201POR for floor-standing and wall-mounted installation. Concealed installation (for false ceiling or recess, without casing).
Front closure panel PCZ is not included and must be ordered separately.
Hydraulic Connections
Right-hand hydraulic connections, Ø 1/2".
Not reversible during installation.
Performance Data
| Cooling capacity (7/12°C – max speed) | 1.60 kW |
| Heating capacity (70/60°C – max speed) | 1.60 kW |
| Heating capacity (65/55°C – max speed – Eurovent) | 1.60 kW |
| Max airflow (high speed) | 290 m³/h |
| Double-inlet centrifugal fans | n. 1 |
| System | 4-pipe |
| Sound level (max speed – Eurovent) | 51 dB(A) sound power / 43 dB(A) sound pressure |
| Power supply | 230V∼50Hz |
Dimensions & Weight
| Width (B) | 750 mm |
| Height (A) | 486 mm |
| Depth (C) | 220 mm |
| Empty weight | 15 kg |
Technical Features
- Steel casing with polyester anti-corrosion paint RAL 9003 – plastic air-distribution grille RAL 7047
- Finned coil heat exchanger: copper tubes and aluminium fins; manifolds with air vents
- Plastic condensate collection tray with external drain
- Air filter class Coarse 25% – removable and washable
- Single-phase motor, 3 speeds, permanent capacitor, on anti-vibration mounts
- Eurovent Certified Performance
Compatible Optional Accessories
- PCZ – front closure panel (not included)
- VCZ / VCZD – 3-way or 2-way motorised valve kit
- BCZ – condensate collection tray
