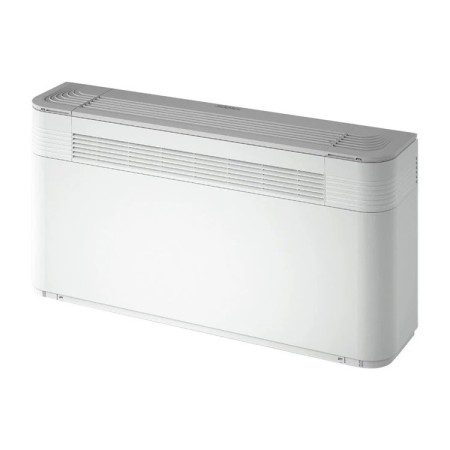

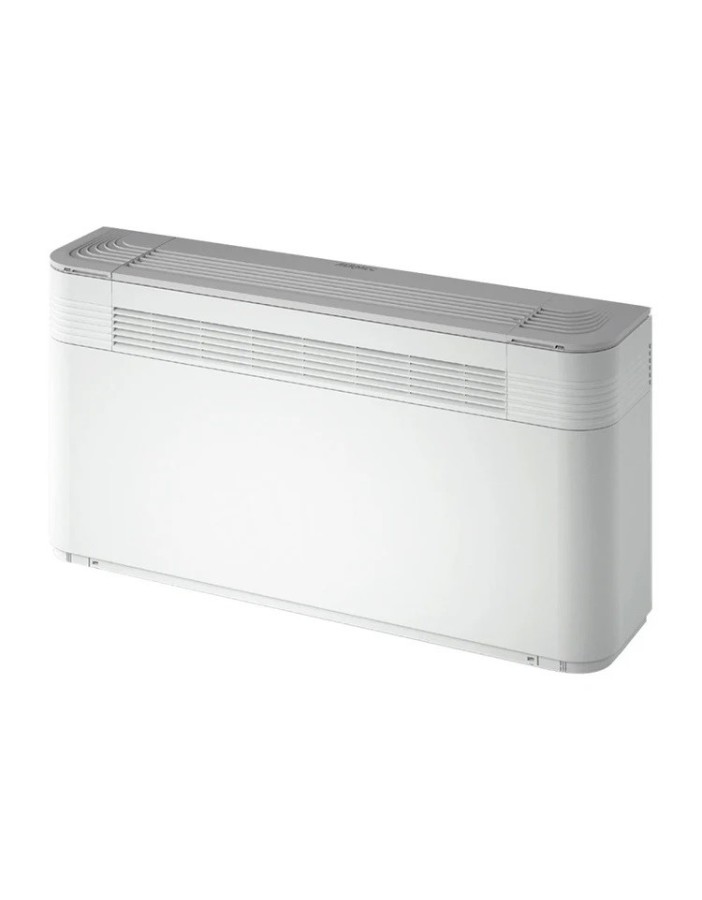

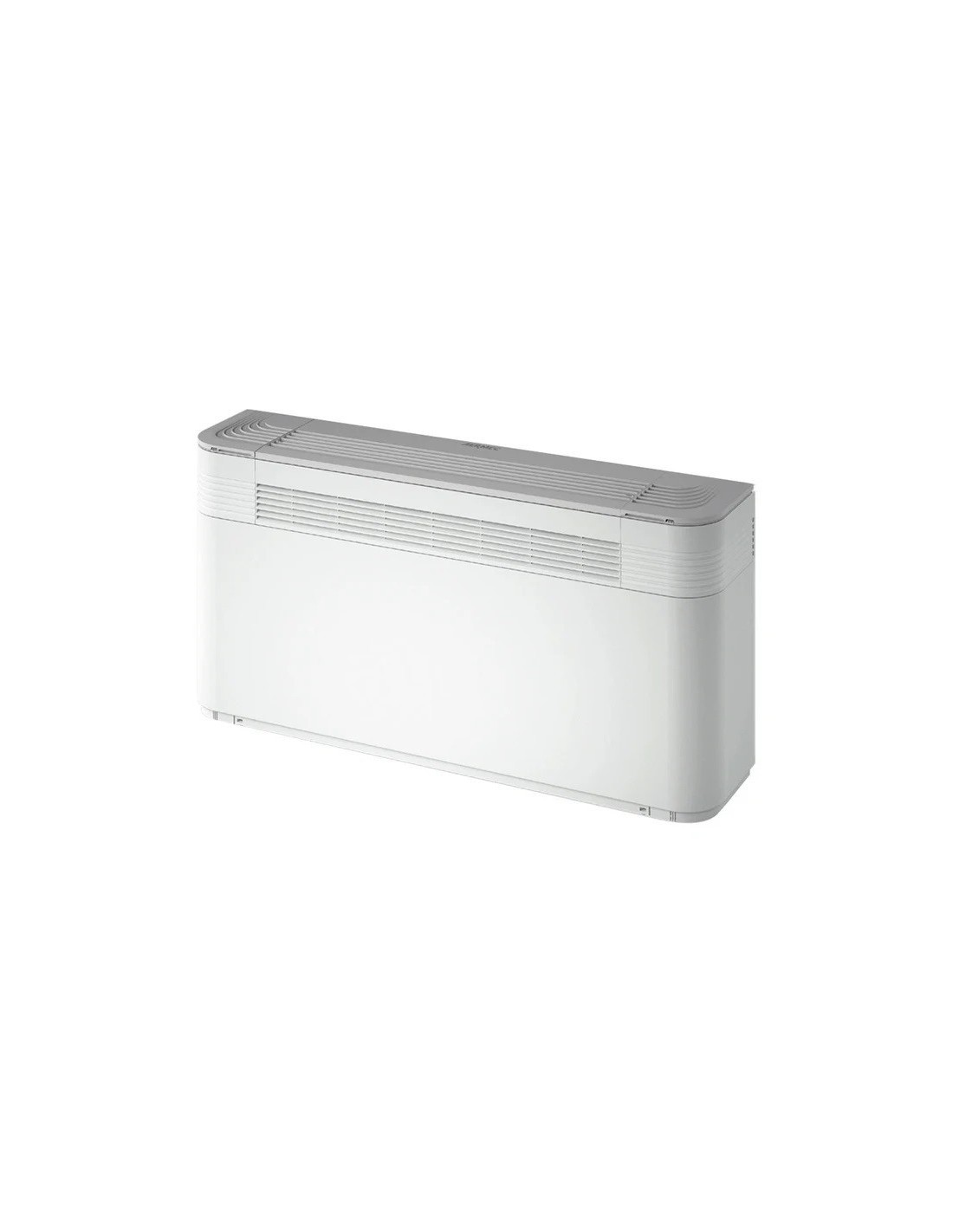

Aermec FCZ300D fan coil unit
AERMEC FCZ300D – Dualjet – With On-board Control – 2-pipe.
Vertical installation only (floor-standing or wall-suspended).
2.65 kW cooling • 5.50 kW heating • 450 m³/h.
Heating capacity low temp. (45/40°C): 2.73 kW.
Left-hand hydraulic connections (standard) • Ø 3/4".
Dimensions 486×980×220 mm • weight 17 kg • power supply 230V∼50Hz.
Description
Fan coil unit AERMEC FCZ300D for floor-standing and wall-mounted installation. Vertical installation only (floor-standing or wall-suspended).
Dualjet double-outlet system for optimised two-direction air distribution.
Front closure panel PCZ is not included and must be ordered separately.
Hydraulic Connections
Left-hand hydraulic connections (standard), Ø 3/4".
Reversible during installation. Also available to order with right-hand connections.
Performance Data
| Cooling capacity (7/12°C – max speed) | 2.65 kW |
| Heating capacity (70/60°C – max speed) | 5.50 kW |
| Heating capacity low temp. (45/40°C – Eurovent) | 2.73 kW |
| Max airflow (high speed) | 450 m³/h |
| Double-inlet centrifugal fans | n. 2 |
| System | 2-pipe |
| Sound level (max speed – Eurovent) | 48 dB(A) sound power / 40 dB(A) sound pressure |
| Power supply | 230V∼50Hz |
Dimensions & Weight
| Width (B) | 980 mm |
| Height (A) | 486 mm |
| Depth (C) | 220 mm |
| Empty weight | 17 kg |
Technical Features
- Steel casing with polyester anti-corrosion paint RAL 9003 – plastic air-distribution grille RAL 7047
- Finned coil heat exchanger: copper tubes and aluminium fins; manifolds with air vents
- Plastic condensate collection tray with external drain
- Air filter class Coarse 25% – removable and washable
- Single-phase motor, 3 speeds, permanent capacitor, on anti-vibration mounts
- Eurovent Certified Performance
- Dualjet double-outlet system for two-direction air distribution
Compatible Optional Accessories
- ZXZ – aesthetic structural feet (not included in photos)
- VCZ / VCZD – 3-way or 2-way motorised valve kit
- BCZ4 / BCZ5 – enlarged condensate collection tray
- DSCZ4 – condensate lift pump
- VMF system – thermostats and user interfaces (VMF-E19, DI24, TX, TXB, AER503IR)
