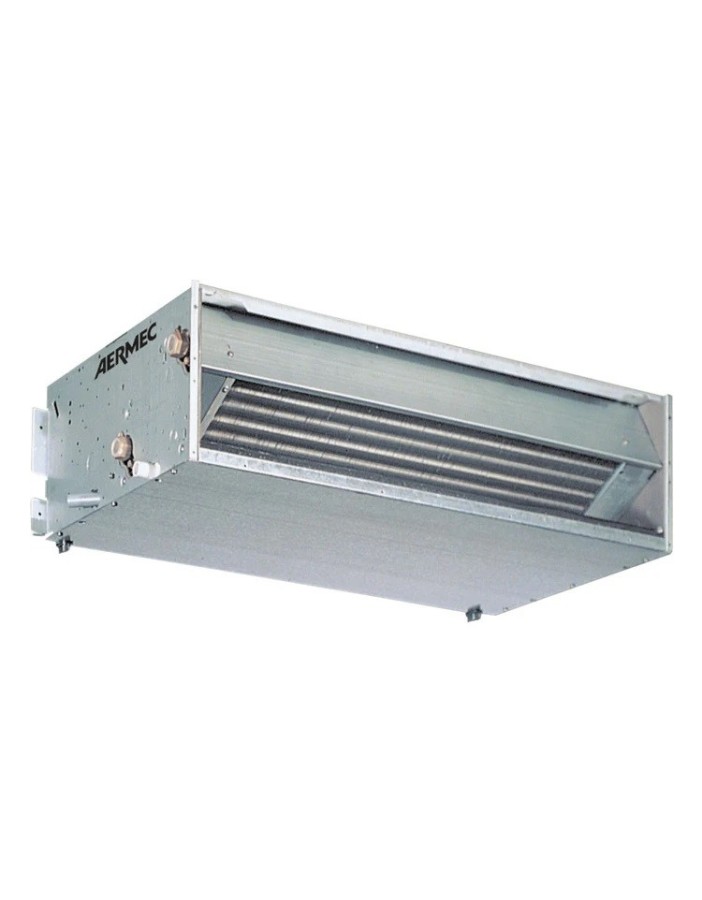

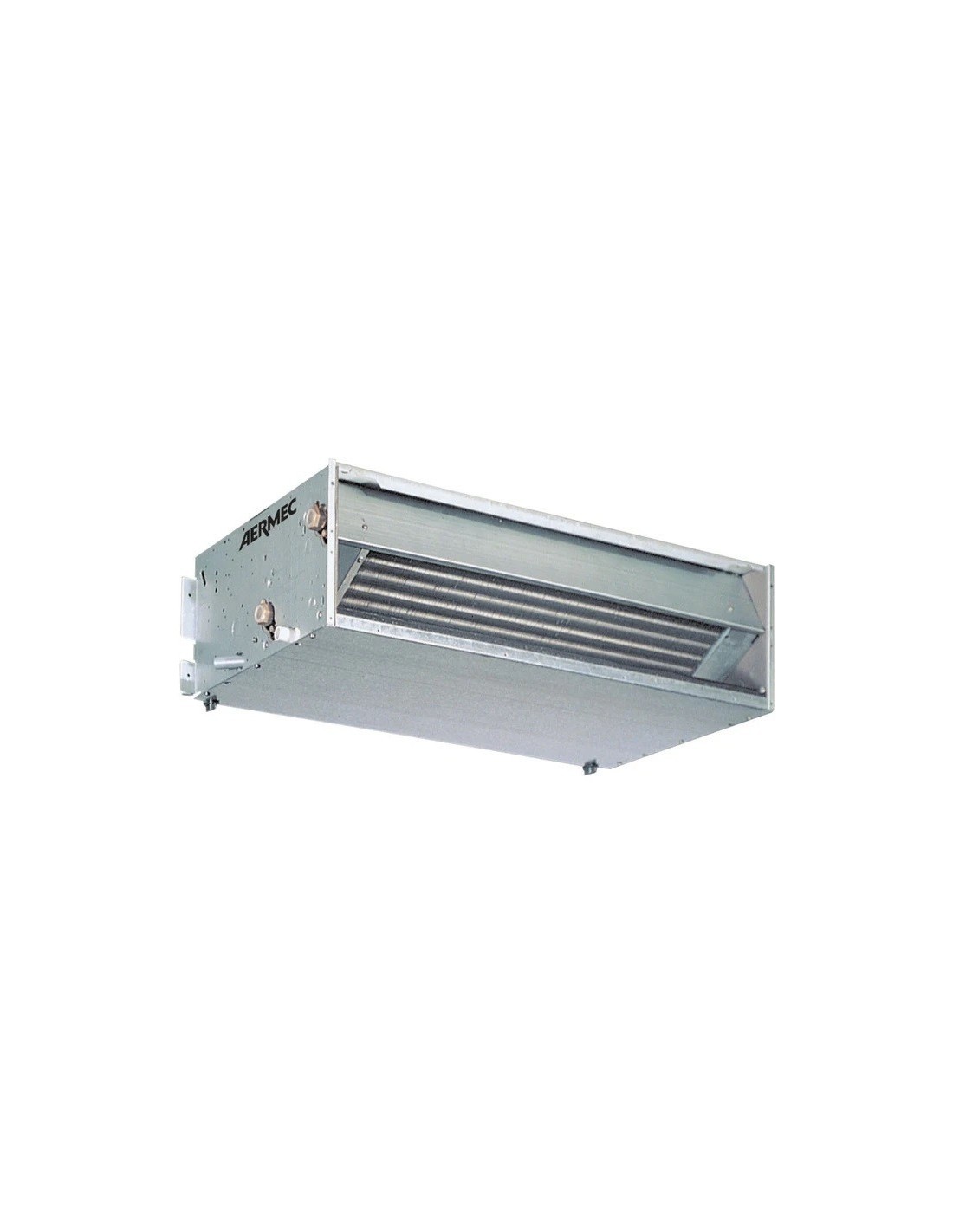

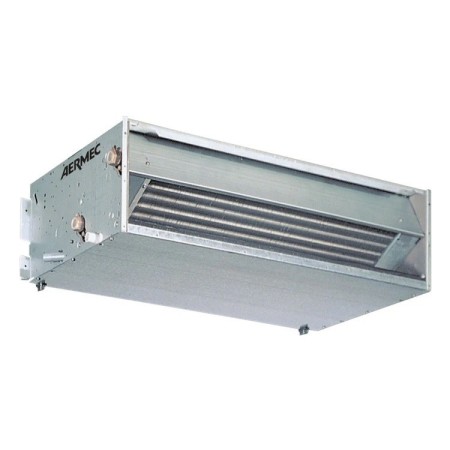

Aermec FCZ400PR fan coil unit
AERMEC FCZ400PR – Without Casing – Right-hand Connections – 2-pipe.
Concealed installation (for false ceiling or recess, without casing).
3.60 kW cooling • 7.15 kW heating • 600 m³/h.
Heating capacity low temp. (45/40°C): 3.55 kW.
Right-hand hydraulic connections • Ø 3/4".
Dimensions 486×1200×220 mm • weight 33 kg • power supply 230V∼50Hz.
Description
Fan coil unit AERMEC FCZ400PR for floor-standing and wall-mounted installation. Concealed installation (for false ceiling or recess, without casing).
Front closure panel PCZ is not included and must be ordered separately.
Hydraulic Connections
Right-hand hydraulic connections, Ø 3/4".
Not reversible during installation.
Performance Data
| Cooling capacity (7/12°C – max speed) | 3.60 kW |
| Heating capacity (70/60°C – max speed) | 7.15 kW |
| Heating capacity low temp. (45/40°C – Eurovent) | 3.55 kW |
| Max airflow (high speed) | 600 m³/h |
| Double-inlet centrifugal fans | n. 2 |
| System | 2-pipe |
| Sound level (max speed – Eurovent) | 51 dB(A) sound power / 43 dB(A) sound pressure |
| Power supply | 230V∼50Hz |
Dimensions & Weight
| Width (B) | 1200 mm |
| Height (A) | 486 mm |
| Depth (C) | 220 mm |
| Empty weight | 33 kg |
Technical Features
- Steel casing with polyester anti-corrosion paint RAL 9003 – plastic air-distribution grille RAL 7047
- Finned coil heat exchanger: copper tubes and aluminium fins; manifolds with air vents
- Plastic condensate collection tray with external drain
- Air filter class Coarse 25% – removable and washable
- Single-phase motor, 3 speeds, permanent capacitor, on anti-vibration mounts
- Eurovent Certified Performance
Compatible Optional Accessories
- PCZ – front closure panel (not included)
- VCZ / VCZD – 3-way or 2-way motorised valve kit
- BCZ – condensate collection tray
