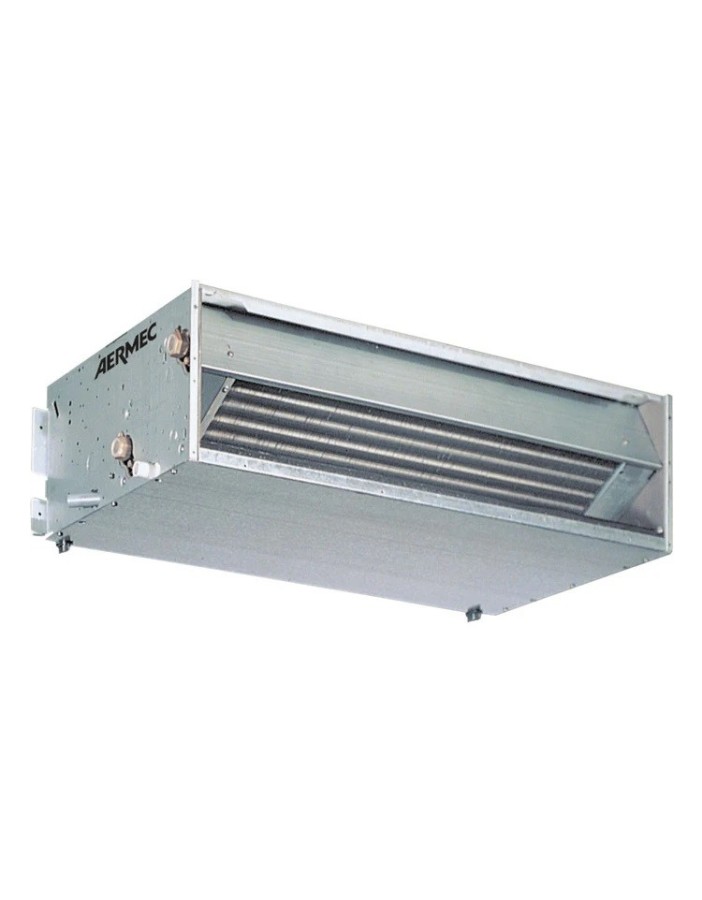

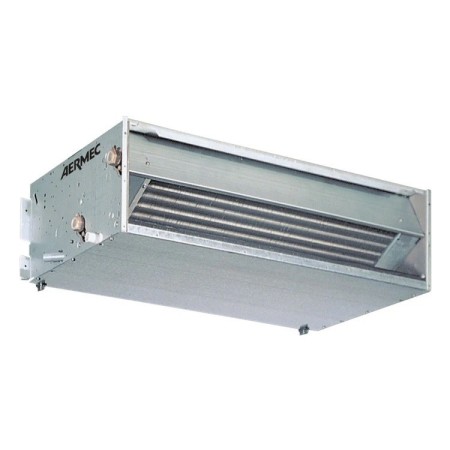

Aermec FCZ701PAF fan coil unit
AERMEC FCZ701PAF – Without Casing – Front Air Intake – 4-pipe.
Concealed installation (for false ceiling or recess, without casing).
5.50 kW cooling • 4.94 kW heating • 1140 m³/h.
Left-hand hydraulic connections • Ø 3/4".
Dimensions 486×1320×220 mm • weight 31 kg • power supply 230V∼50Hz.
Description
Fan coil unit AERMEC FCZ701PAF for floor-standing and wall-mounted installation. Concealed installation (for false ceiling or recess, without casing).
Front closure panel PCZ is not included and must be ordered separately.
Hydraulic Connections
Left-hand hydraulic connections, Ø 3/4".
Not reversible (4-pipe system with secondary coil).
Performance Data
| Cooling capacity (7/12°C – max speed) | 5.50 kW |
| Heating capacity (70/60°C – max speed) | 4.94 kW |
| Heating capacity (65/55°C – max speed – Eurovent) | 4.94 kW |
| Max airflow (high speed) | 1140 m³/h |
| Double-inlet centrifugal fans | n. 3 |
| System | 4-pipe |
| Sound level (max speed – Eurovent) | 62 dB(A) sound power / 54 dB(A) sound pressure |
| Power supply | 230V∼50Hz |
Dimensions & Weight
| Width (B) | 1320 mm |
| Height (A) | 486 mm |
| Depth (C) | 220 mm |
| Empty weight | 31 kg |
Technical Features
- Steel casing with polyester anti-corrosion paint RAL 9003 – plastic air-distribution grille RAL 7047
- Finned coil heat exchanger: copper tubes and aluminium fins; manifolds with air vents
- Plastic condensate collection tray with external drain
- Air filter class Coarse 25% – removable and washable
- Single-phase motor, 3 speeds, permanent capacitor, on anti-vibration mounts
- Eurovent Certified Performance
Compatible Optional Accessories
- PCZ – front closure panel (not included)
- VCZ / VCZD – 3-way or 2-way motorised valve kit
- BCZ – condensate collection tray
