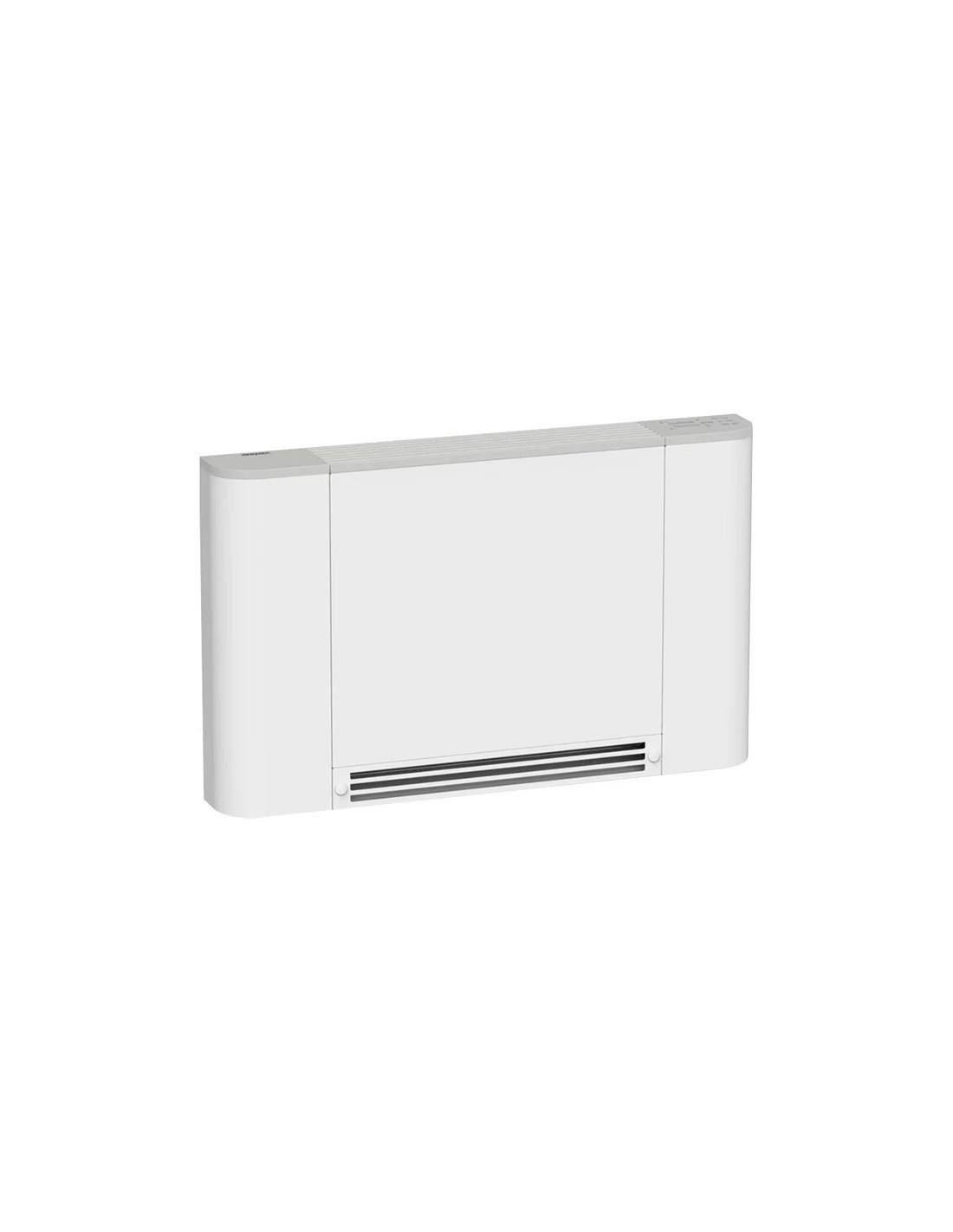

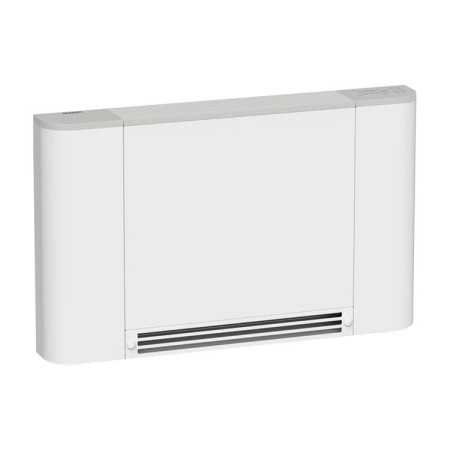

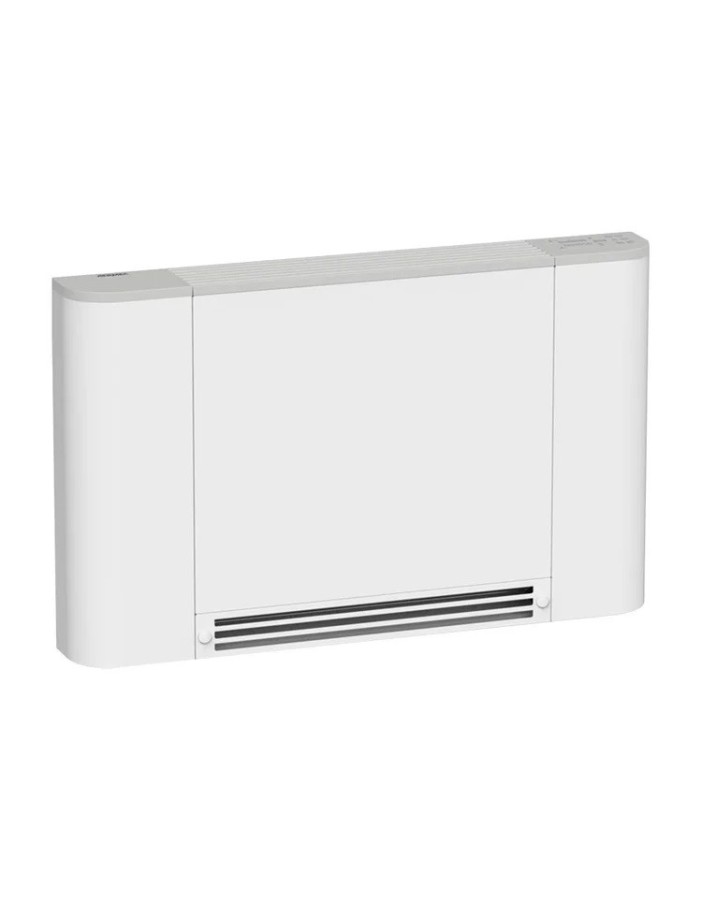

Aermec ULSI20 fan coil unit
AERMEC ULSI20 – Slim inverter fan coil unit – Standard.
Vertical installation – wall or floor (slim depth).
1.50 kW (freddo) / 2.86 kW (caldo) • 241 m³/h.
Heating capacity low temp. (45/40°C – Eurovent): 1.43 kW.
Left-hand hydraulic connections • Ø 1/2".
Width 940×130×580 mm • Empty weight 13 kg.
Description
Slim inverter fan coil unit AERMEC ULSI20 – Standard. Vertical installation – wall or floor (slim depth).
The aesthetic feet (accessory ZXS) are not included.
Hydraulic Connections
Left-hand hydraulic connections • Ø 1/2".
Reversible during installation.
Performance Data
| Cooling capacity (7/12°C – max speed) | 1.50 kW |
| Heating capacity (70/60°C – max speed) | 2.86 kW |
| Heating capacity low temp. (45/40°C – Eurovent) | 1.43 kW |
| Max airflow (high speed) | 241 m³/h |
| System | 2-pipe |
| Sound power level (max speed – Eurovent) | 51 dB(A) sound power / 43 dB(A) sound pressure |
| Power supply / Motor | Brushless IP66 motor with built-in driver, continuous speed variation. 230V~50Hz. Eurovent Certified. |
Dimensions & Weight
| Width (B) | 940 mm |
| Height (A) | 130 mm |
| Depth (C) | 580 mm |
| Empty weight | 13 kg |
Technical Features
- Galvanised steel casing with white epoxy paint RAL 9003 – depth only 130 mm
- Tangential fans for maximum acoustic comfort
- Brushless IP66 motor with built-in driver, continuous speed variation
- Finned coil: copper tubes and aluminium fins; manifolds with air vents
- Air filter – removable and washable
- Eurovent Certified Performance
Compatible Optional Accessories
- ZXS – aesthetic structural feet (not included)
- VCS2 / VCS3 – 2-way or 3-way motorised valve kit (Ø 1/2")
- BCSV – condensate tray for valve kit
- DSC7 – condensate drain kit
- TXBIS – on-board thermostat
- DSKTS – thermostat with display and ergonomic dial
- VMF system – thermostats and interfaces (VMF-E19I, DI24, VMF-E2S, etc.)
