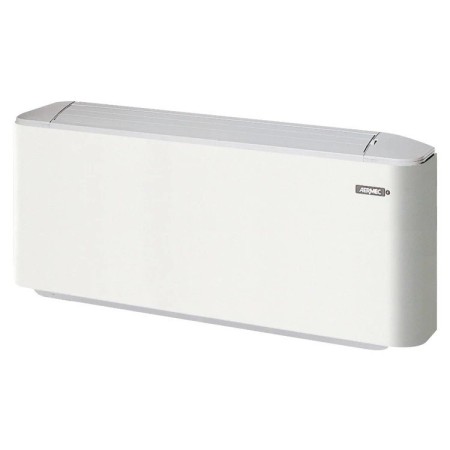

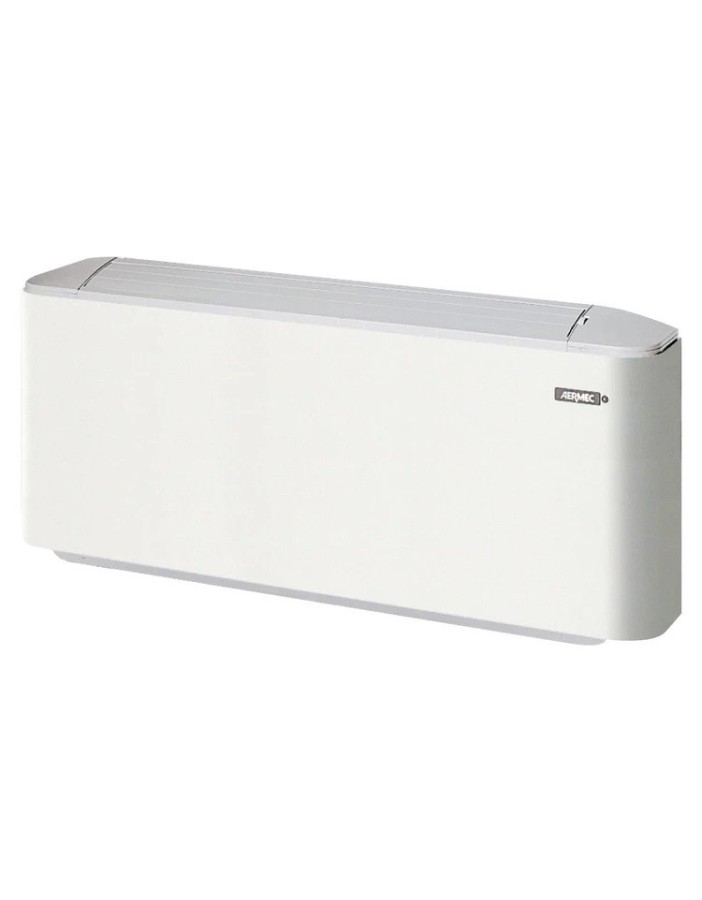

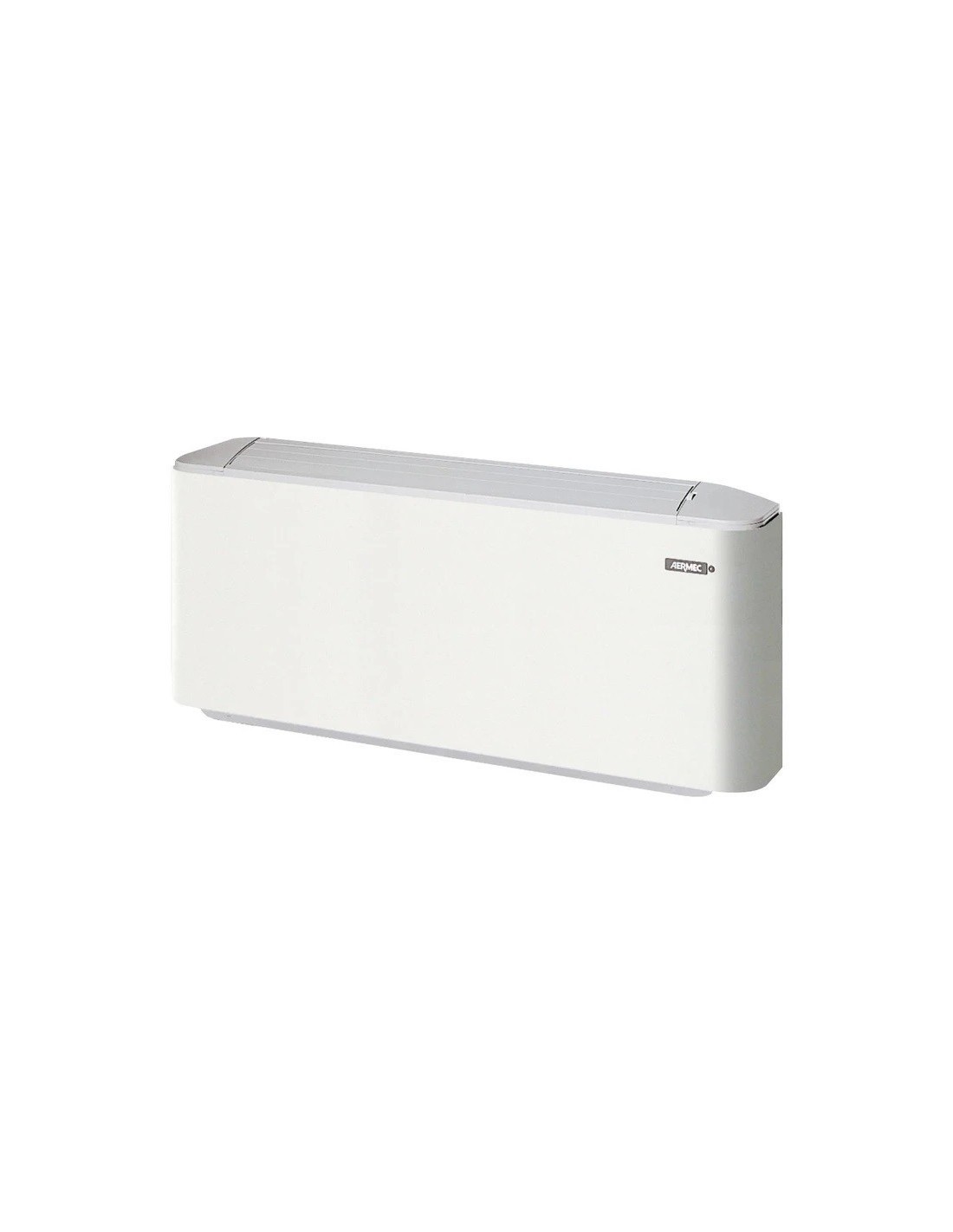

Aermec UL36R radiant plate fan coil unit
AERMEC UL36R – Fan coil unit with radiant panel – Radiant version – 3-speed motor.
Vertical installation – wall or floor, with radiant panel (radiant + forced convection).
2.83 kW (freddo) / 5.94 kW (caldo 70/60°C) • 460 m³/h.
Static heating capacity (50°C inlet): 3.54 kW.
Right-hand hydraulic connections • Ø 14 mm.
Width 1200×513×173 mm • Empty weight 20 kg.
Description
Fan coil unit with radiant panel AERMEC UL36R – Radiant version – 3-speed motor. Vertical installation – wall or floor, with radiant panel (radiant + forced convection).
Floor mounting feet (accessory ZU) are not included.
Front radiant panel for low-temperature radiant heating (only 45°C) – silent comfort even with the fan off. Compatible with boilers and heat pumps.
Four operating modes: Radiant / Radiant + Natural convection / Radiant + Forced convection / Forced convection.
Hydraulic Connections
Right-hand hydraulic connections • Ø 14 mm.
Connections not reversible (radiant panel). Available to order with right-hand connections.
Performance Data
| Cooling capacity (7/12°C – max speed) | 2.83 kW |
| Heating capacity (70/60°C – max speed) | 5.94 kW |
| Static heating capacity (50°C inlet) | 3.54 kW |
| Static radiant capacity (70°C) | 0.75 kW |
| Static radiant capacity (50°C) | 0.45 kW |
| Static radiant capacity (35°C) | 0.23 kW |
| Max airflow (high speed) | 460 m³/h |
| System | 2-pipe |
| Sound power level (max speed – Eurovent) | 50 dB(A) sound power / 40 dB(A) sound pressure |
| Power supply / Motor | Brushless Inverter motor with continuous 0–100% speed variation. 230V~50Hz. Eurovent Certified. |
Dimensions & Weight
| Width (B) | 1200 mm |
| Height (A) | 513 mm |
| Depth (C) | 173 mm |
| Empty weight | 20 kg |
Technical Features
- Front panel for low-temperature radiant heating – operates at only 45°C; Electrostatically pre-charged air filter
- Steel casing with polyester anti-corrosion paint RAL 9003 – plastic grille RAL 7047
- Brushless Inverter motor with continuous 0–100% speed variation – up to 50% energy saving vs. 3-speed motor
- Double-inlet centrifugal fans – removable volute for easy cleaning
- Finned coil: copper tubes and aluminium fins; manifolds with air vents
- Plastic condensate tray with external drain
- Air filter – removable and washable
- Eurovent Certified Performance
Compatible Optional Accessories
- ZU – floor mounting feet (not included)
- PCU – rear closure panel
- GU – intake grille (requires ZU)
- VCHRAD – 3-way motorised valve kit specific for Radiant
- VMF system – thermostats (VMF-E4X/DX required)
