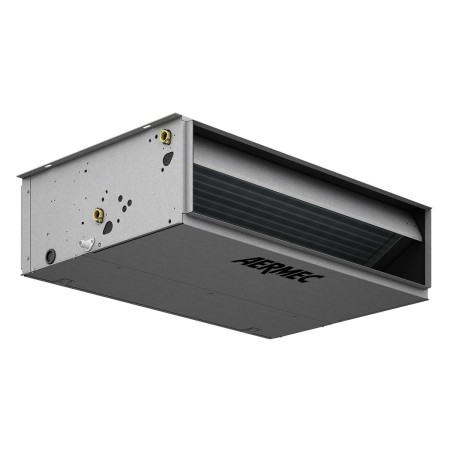

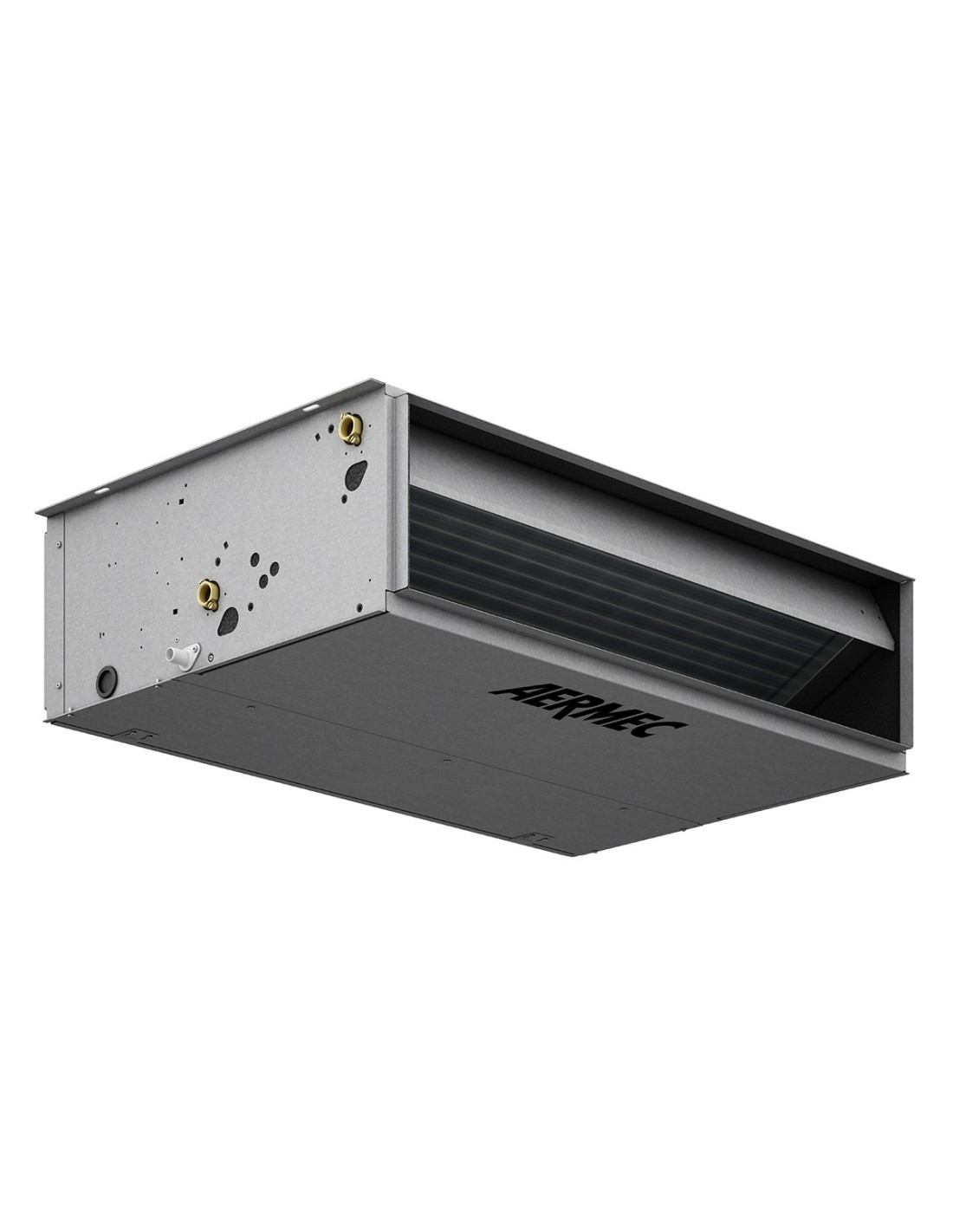

Aermec VED230I inverter fan coil unit
AERMEC VED230I – Ducted fan coil unit – with built-in Cold Plasma air purifier.
Horizontal and vertical (ceiling or floor ducted installation).
3.33 kW (freddo/frío) / 7.16 kW (caldo 70/60°C) • 590 m³/h • Available static pressure (max speed): 64 Pa.
Low-temp heating capacity (45/40°C – Eurovent): 3.56 kW.
Reversible hydraulic connections during installation. Ø 3/4".
Width (B): 1001×217×560 mm.
Description
Ducted fan coil unit AERMEC VED230I – with built-in Cold Plasma air purifier.
Horizontal and vertical (ceiling or floor ducted installation).
Equipped with integrated Cold Plasma air purifier: eliminates 90% of bacteria, ionises the air and neutralises bad odours.
Hydraulic Connections
Main coil connections: Ø 3/4".
Reversible hydraulic connections during installation.
Performance Data
| Cooling capacity (7/12°C – max speed) | 3.33 kW |
| Heating capacity (70/60°C – max speed) | 7.16 kW |
| Low-temp heating capacity (45/40°C – Eurovent) | 3.56 kW |
| Max airflow (high speed) | 590 m³/h |
| Available static pressure (max speed) | 64 Pa |
| Centrifugal fans | n. 2 (3-speed) |
| System | 2-pipe |
| Sound power level – inlet+radiated (max speed) | 57 dB(A) |
| Sound power level – outlet (max speed) | 52 dB(A) |
| Power supply | Single-phase multi-speed asynchronous motor with permanent capacitor. 230V~50Hz. Eurovent Certified. |
Dimensions & Weight
| Width (B) | 1001 mm |
| Height (A) | 217 mm |
| Depth (C) | 560 mm |
Technical Features
- Internal insulation structure Class 1 fire resistance – protection IP20
- Antistatic plastic centrifugal fans with optimised blade profile – high airflow and pressure with low noise
- Statically and dynamically balanced – removable plastic volutes for easy cleaning
- Single-phase multi-speed asynchronous motor with anti-vibration mounts and permanent capacitor
- Finned coil heat exchanger: copper tubes and aluminium fins – hydraulic connections with air vents
- Removable and washable air filter
- Supply air fitting included in the supply
- Eurovent Certified Performance
- Integrated Cold Plasma air purifier for continuous air sanitation (90% bacteria elimination)
Compatible Optional Accessories
- AMP – suspended installation kit
- BCZ4 / BCZ6 – condensate tray (BCZ4: vertical, BCZ6: horizontal)
- DSC4 / DSCZ4 – condensate pump unit
- VCF43 / VCFD3 – 3-way or 2-way motorised valve kit for main coil
- BV030/130/230/162 – additional heating-only coil (1 row)
- MZC – plenum with motorised dampers
- GA / GAF – return air grilles (with or without filter)
- GM – supply air grille with adjustable vanes
- RDA_V / RPA_V / PA_V – return air fittings and plenums
- PM_V / RPM_V – insulated supply air plenum
- VMF system – thermostats and interfaces (VMF-E19, DI24, VMF-E4X, TX, AER503IR)
