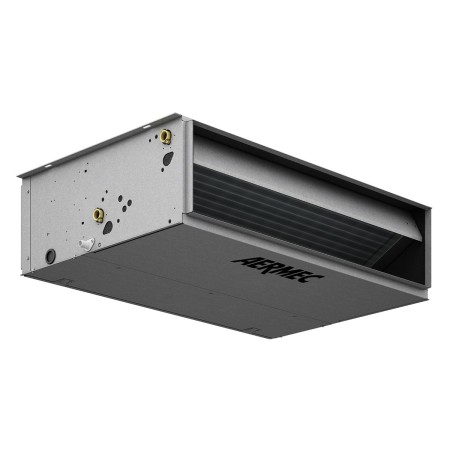

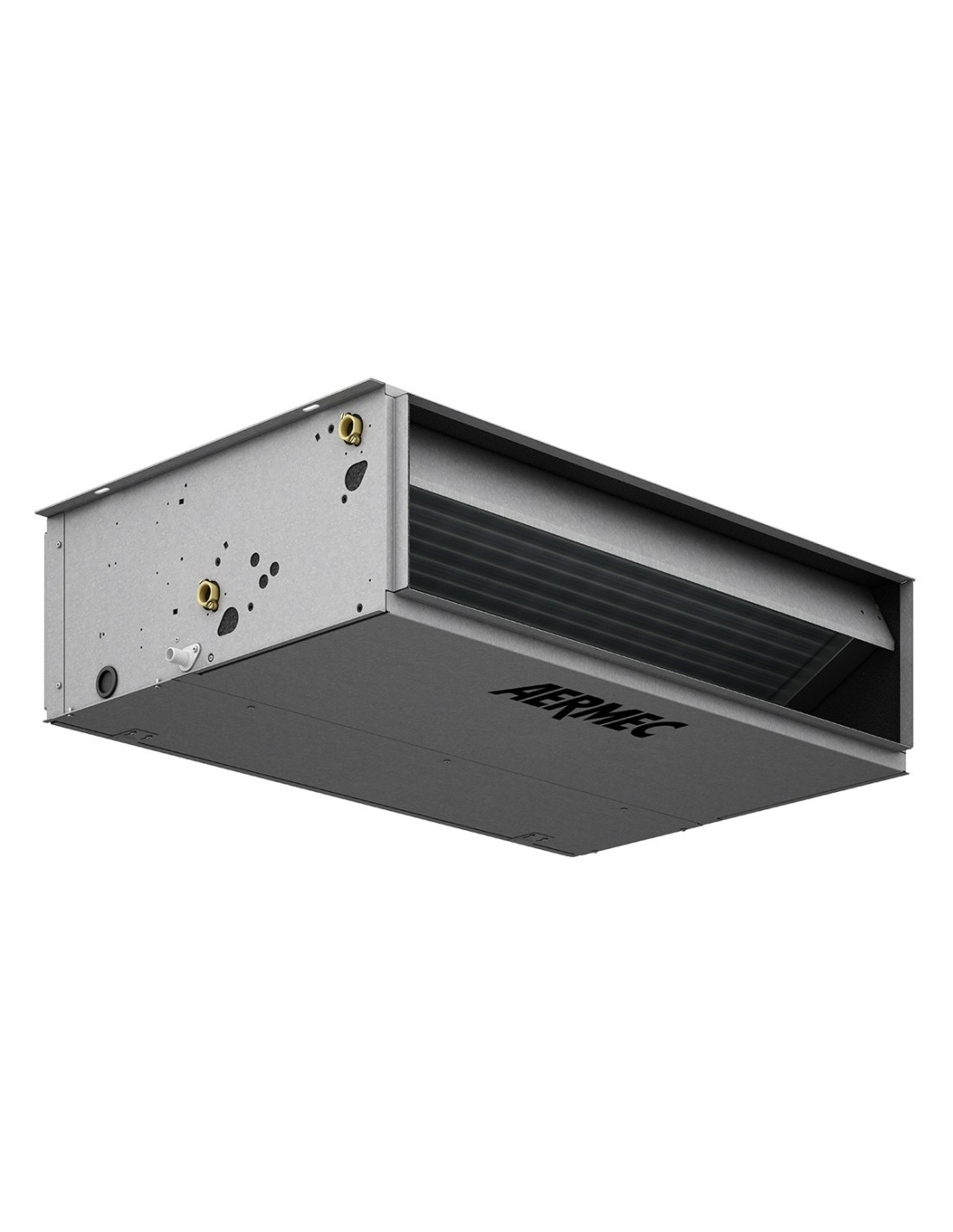

Aermec VED540I inverter fan coil unit
AERMEC VED540I – Ducted fan coil unit
Horizontal and vertical (ceiling or floor ducted installation).
8.70 kW (freddo/frío) / 19.91 kW (caldo 70/60°C) • 1500 m³/h • Available static pressure (max speed): 56 Pa.
Low-temp heating capacity (45/40°C – Eurovent): 9.90 kW.
Reversible hydraulic connections during installation. Ø 3/4".
Width (B): 1133×300×737 mm • Net weight 47 kg.
Description
Ducted fan coil unit AERMEC VED540I
Horizontal and vertical (ceiling or floor ducted installation).
Hydraulic Connections
Main coil connections: Ø 3/4".
Reversible hydraulic connections during installation.
Performance Data
| Cooling capacity (7/12°C – max speed) | 8.70 kW |
| Heating capacity (70/60°C – max speed) | 19.91 kW |
| Low-temp heating capacity (45/40°C – Eurovent) | 9.90 kW |
| Max airflow (high speed) | 1500 m³/h |
| Available static pressure (max speed) | 56 Pa |
| Centrifugal fans | n. 2 (5-speed) |
| System | 2-pipe |
| Sound power level – inlet+radiated (max speed) | 62 dB(A) |
| Sound power level – outlet (max speed) | 58 dB(A) |
| Power supply | Single-phase multi-speed asynchronous motor with permanent capacitor. 230V~50Hz. Eurovent Certified. |
Dimensions & Weight
| Width (B) | 1133 mm |
| Height (A) | 300 mm |
| Depth (C) | 737 mm |
| Net weight | 47 kg |
Technical Features
- Internal insulation structure Class 1 fire resistance – protection IP20
- Antistatic plastic centrifugal fans with optimised blade profile – high airflow and pressure with low noise
- Statically and dynamically balanced – removable plastic volutes for easy cleaning
- Single-phase multi-speed asynchronous motor with anti-vibration mounts and permanent capacitor
- Finned coil heat exchanger: copper tubes and aluminium fins – hydraulic connections with air vents
- Removable and washable air filter
- Supply air fitting included in the supply
- Eurovent Certified Performance
- 5-speed motor (V1÷V5) for maximum installation flexibility
- Integrated Cold Plasma air purifier for continuous air sanitation (90% bacteria elimination)
Compatible Optional Accessories
- BCV45 / BCV67 – condensate tray (size dependent)
- VCF45C / VCF47C – 3-way motorised valve kit for main coil
- VCF25C – 2-way motorised valve kit for main coil
- VCT – globe valve 2 or 3-way with actuator (VCTK 230V / VCTKM 24V)
- MZC5040 / MZC7050 – plenum with motorised dampers
- RDA_V / RPA_V / PA_V – return air fittings and plenums
- RPM_V / PM_V – insulated supply air plenum
- KFV – circular flange kit for plenum
- VMF system – thermostats and interfaces (VMF-E0X, VMF-E19, DI24, VMF-E4X, TX, AER503IR)
