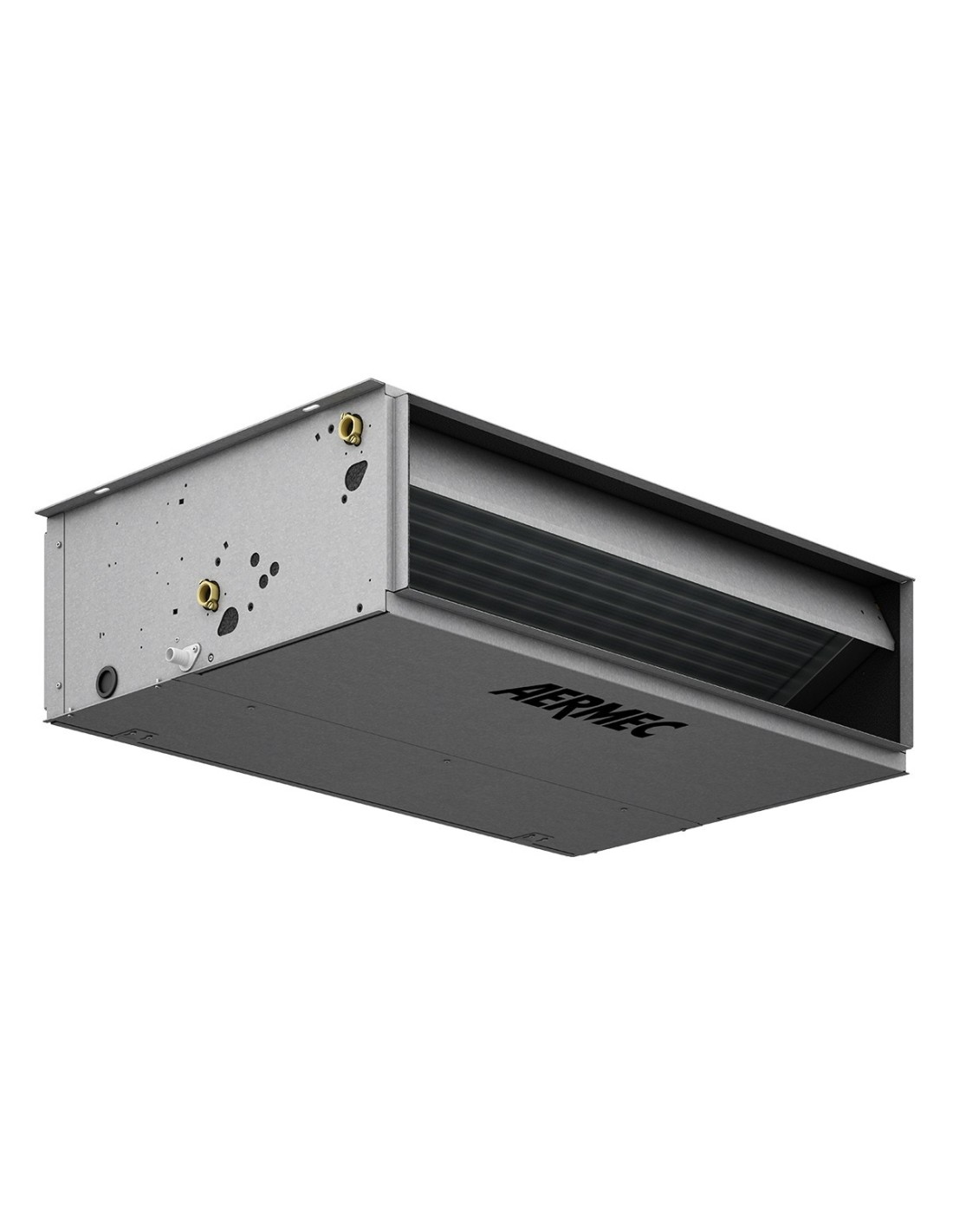

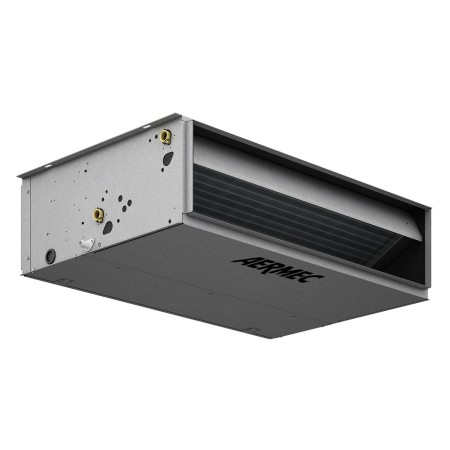

Aermec VED741I inverter fan coil unit
AERMEC VED741I – Ducted fan coil unit – with built-in Cold Plasma air purifier.
Horizontal and vertical (ceiling or floor ducted installation).
16.10 kW (Coolin) • 2358 m³/h.
Low-temp heating capacity (45/40°C – Eurovent): 12.90 kW.
Reversible hydraulic connections during installation. Ø 3/4".
Width (B): 1533×351×789 mm • Net weight 64 kg.
Description
Ducted fan coil unit AERMEC VED741I – with built-in Cold Plasma air purifier.
Horizontal and vertical (ceiling or floor ducted installation).
Equipped with integrated Cold Plasma air purifier: eliminates 90% of bacteria, ionises the air and neutralises bad odours.
Hydraulic Connections
Main coil connections: Ø 3/4".
Secondary coil connections: Ø 1/2".
Reversible hydraulic connections during installation.
Performance Data
| Cooling capacity (7/12°C – max speed) | 16.10 kW |
| Low-temp heating capacity (45/40°C – Eurovent) | 12.90 kW |
| Secondary coil heating capacity (65/55°C) | 12.90 kW |
| Max airflow (high speed) | 2358 m³/h |
| Available static pressure (max speed) | 69 Pa |
| Centrifugal fans | n. 3 (5-speed) |
| System | 4-pipe |
| Sound power level – inlet+radiated (max speed) | 68 dB(A) |
| Sound power level – outlet (max speed) | 64 dB(A) |
| Power supply | Single-phase multi-speed asynchronous motor with permanent capacitor. 230V~50Hz. Eurovent Certified. |
Dimensions & Weight
| Width (B) | 1533 mm |
| Height (A) | 351 mm |
| Depth (C) | 789 mm |
| Net weight | 64 kg |
Technical Features
- Internal insulation structure Class 1 fire resistance – protection IP20
- Antistatic plastic centrifugal fans with optimised blade profile – high airflow and pressure with low noise
- Statically and dynamically balanced – removable plastic volutes for easy cleaning
- Single-phase multi-speed asynchronous motor with anti-vibration mounts and permanent capacitor
- Finned coil heat exchanger: copper tubes and aluminium fins – hydraulic connections with air vents
- Removable and washable air filter
- Supply air fitting included in the supply
- Eurovent Certified Performance
- 5-speed motor (V1÷V5) for maximum installation flexibility
- Integrated Cold Plasma air purifier for continuous air sanitation (90% bacteria elimination)
- Ready for 4-pipe systems with secondary heating-only coil
Compatible Optional Accessories
- BCV45 / BCV67 – condensate tray (size dependent)
- VCF45C / VCF47C – 3-way motorised valve kit for main coil
- VCF25C – 2-way motorised valve kit for main coil
- VCT – globe valve 2 or 3-way with actuator (VCTK 230V / VCTKM 24V)
- MZC5040 / MZC7050 – plenum with motorised dampers
- RDA_V / RPA_V / PA_V – return air fittings and plenums
- RPM_V / PM_V – insulated supply air plenum
- KFV – circular flange kit for plenum
- VMF system – thermostats and interfaces (VMF-E0X, VMF-E19, DI24, VMF-E4X, TX, AER503IR)
