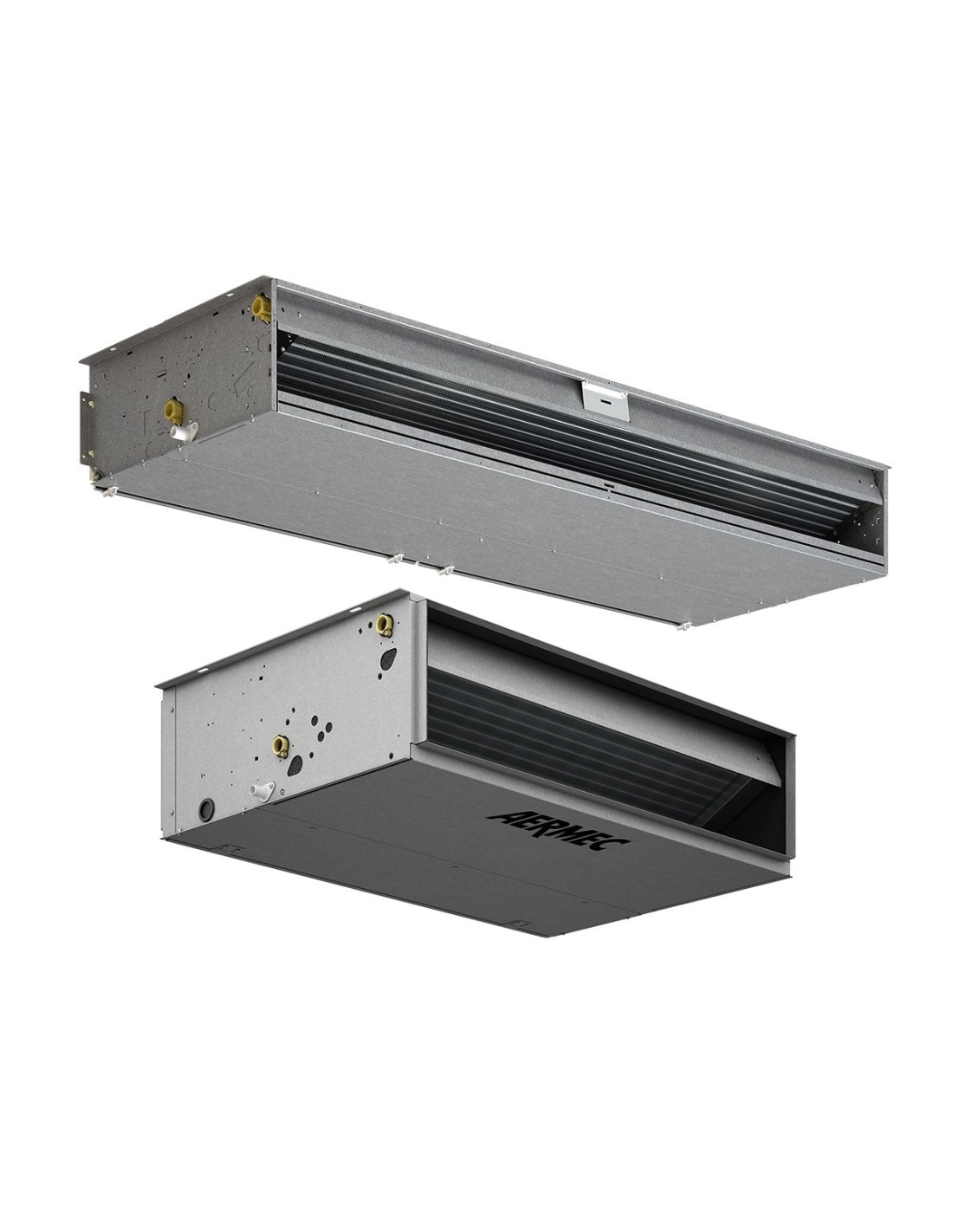

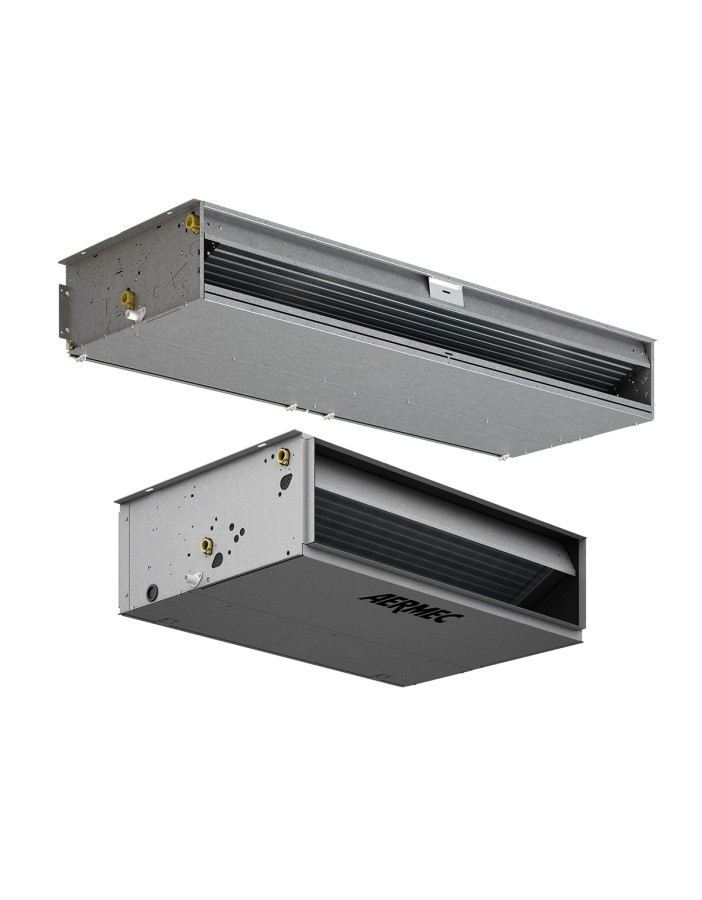

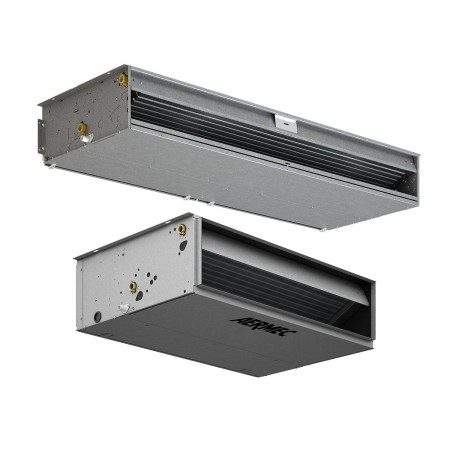

Aermec VES140I inverter fan coil unit
AERMEC VES140I – Brushless EC Inverter ducted fan coil unit.
Horizontal or vertical installation in false ceiling or technical space. 2/4-pipe systems.
3.31 kW (freddo 7/12°C) / 6.58 kW (caldo 70/60°C) • 420 m³/h.
Reversible main coil. Connections 3/4". Air filter Class G3, easy extraction.
781×584×217 mm • 24 kg.
Description
Brushless EC Inverter ducted fan coil unit AERMEC VES140I.
Horizontal or vertical installation in false ceiling or technical space. 2/4-pipe systems..
Hydraulic Connections
Reversible main coil. Connections 3/4". Air filter Class G3, easy extraction. Internal insulation Class 1 fire resistance.
Performance Data
| Cooling capacity (7/12°C – max speed) | 3.31 kW |
| Heating capacity (70/60°C – max speed) | 6.58 kW |
| Low-temp heating (45/40°C – max speed) | 3.30 kW |
| Airflow (max speed) | 420 m³/h |
| Centrifugal fans | n. 2 |
| Available static pressure (max speed) | 60 Pa |
| Sound power level inlet+radiated (max speed) | 55 dB(A) |
| Sound power level outlet (max speed) | 50 dB(A) |
| Power supply / Motor | Brushless EC Inverter motor with continuous 0–10V modulation. 230V~50Hz. IP20. Eurovent LCP. |
Dimensions & Weight
| Height (A) | 217 mm |
| Width (B) | 781 mm |
| Depth (C) | 584 mm |
| Depth with fitting (D) | 807 mm |
| Net weight | 24 kg |
Technical Features
- Horizontal or vertical installation – 2 or 4-pipe systems, low-temperature compatible
- Antistatic plastic centrifugal fans with aerofoil profile
- Brushless EC Inverter motor with continuous 0–100% modulation via 0–10V signal – precise load adaptation without temperature swings
- Significant energy savings vs. traditional motor. Eurovent LCP certified
- Reversible main coil, optimised for sensible heat
- Standard or enlarged coil for 2-pipe; hot-only coil for 4-pipe
- Air filter Class G3, easy extraction – removable plastic scrolls
- Internal insulation Class 1 fire resistance – IP20
- VMF system compatible (VMF-E19I, VMF-E4X/DX, VMF-IO, VMF-LON)
Compatible Accessories
- Controls: TX, WMT21 (with SWAI probe)
- VMF system: VMF-E19I, VMF-E4X, VMF-E4DX, VMF-IO, VMF-LON, VMF-SW, VMF-SW1
- 3-way valves: VCF43/4324 (main coil), VCF45/4524 (hot-only)
- 2-way valves: VCFD3/324, VCFD4/424 – variable flow VJP/VJP_M
- 4-pipe kit: VCF3X4L/R – supplementary coils BV030/BV130/BV230/BV162
- Installation: AMP, BC4/BC6/BC9, DSC4, ZX7/ZX8
- Plenums & fittings: RDA_V, RDAC_V, RPA_V, RPM_V, PA_V, PM_V, RDMC_V, KFV10
- Grilles: GA/GAF (return), GM (supply), SE (outdoor air)
