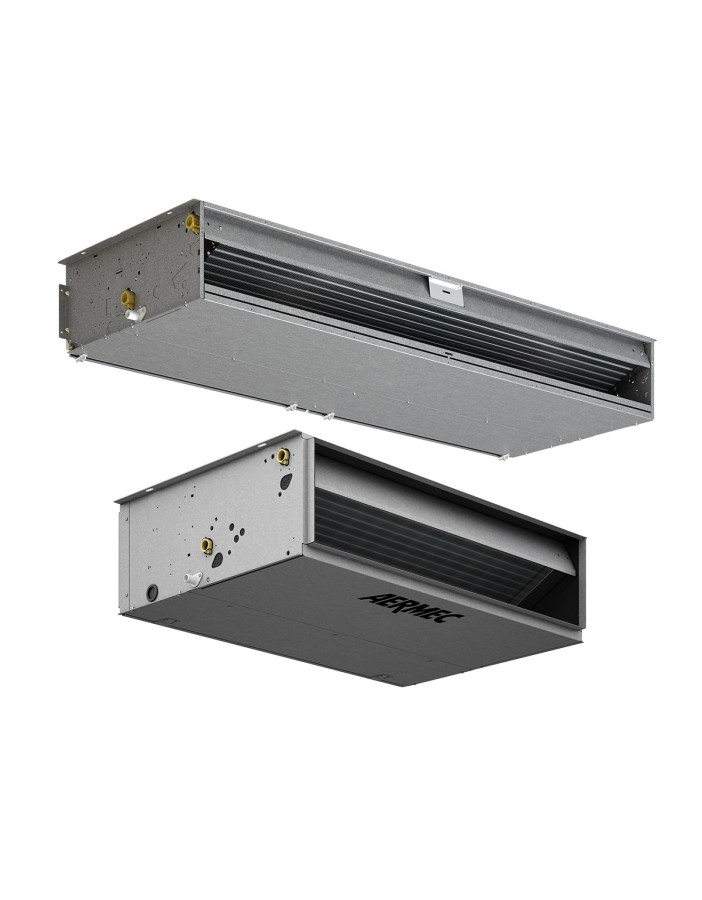

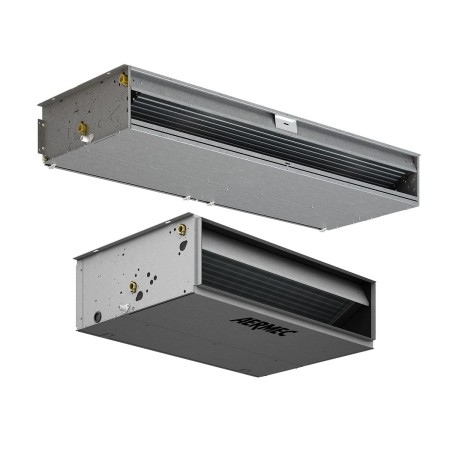

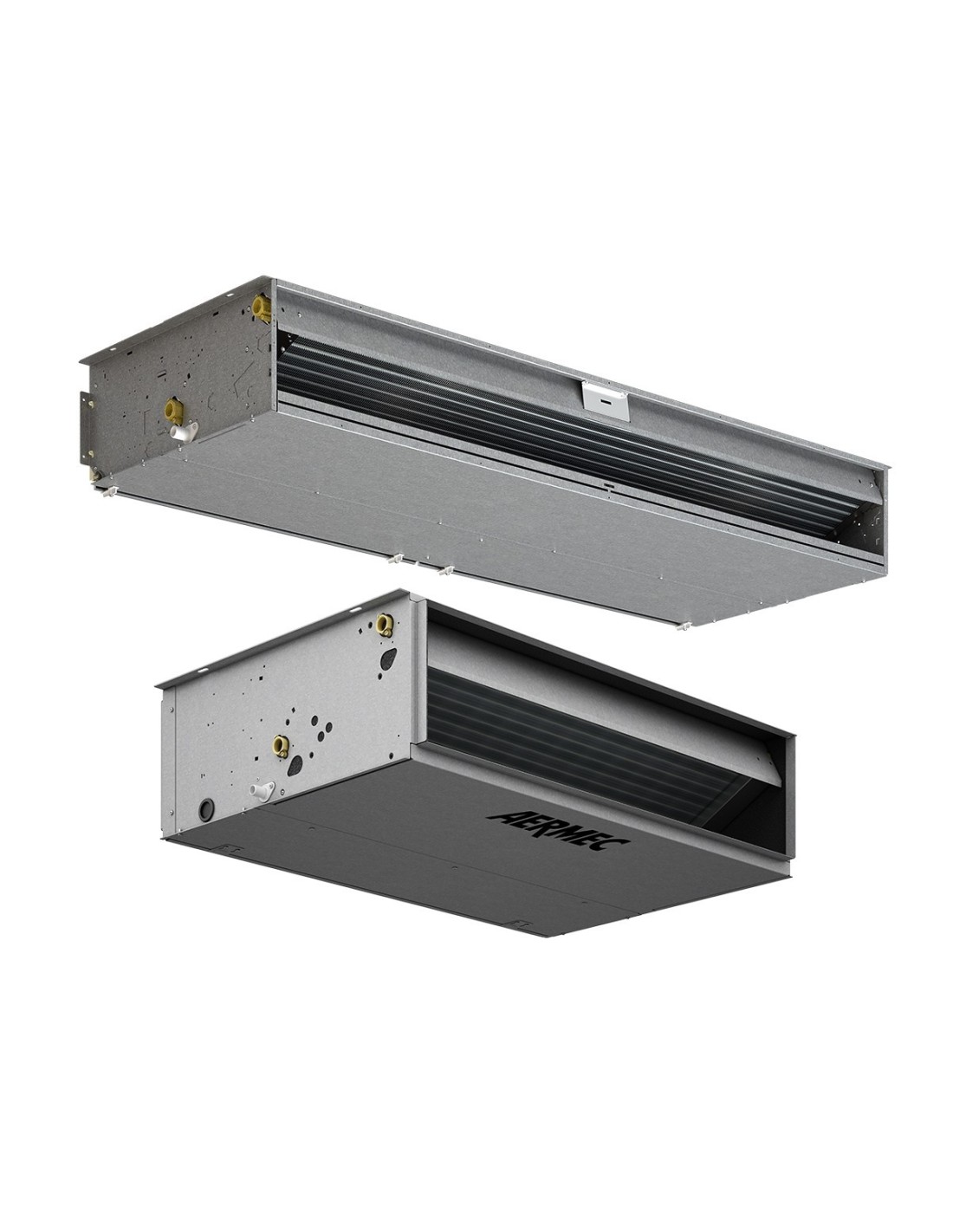

Aermec VES330 fan coil unit
AERMEC VES330 – Ducted fan coil unit.
Horizontal or vertical installation in false ceiling or technical space. 2/4-pipe systems.
5.36 kW (freddo 7/12°C) / 10.51 kW (caldo 70/60°C) • 805 m³/h.
Reversible main coil. Connections 3/4". Air filter Class G3, easy extraction.
1122×584×217 mm • 35 kg.
Description
Ducted fan coil unit AERMEC VES330.
Horizontal or vertical installation in false ceiling or technical space. 2/4-pipe systems..
Hydraulic Connections
Reversible main coil. Connections 3/4". Air filter Class G3, easy extraction. Internal insulation Class 1 fire resistance.
Performance Data
| Cooling capacity (7/12°C – max speed) | 5.36 kW |
| Heating capacity (70/60°C – max speed) | 10.51 kW |
| Low-temp heating (50/45°C – max speed) | 6.33 kW |
| Airflow (max speed) | 805 m³/h |
| Centrifugal fans | n. 3 |
| Available static pressure (max speed) | 66 Pa |
| Sound power level inlet+radiated (max speed) | 58 dB(A) |
| Sound power level outlet (max speed) | 54 dB(A) |
| Power supply / Motor | Asynchronous 3-speed motor (H/M/L). 230V~50Hz. IP20. |
Dimensions & Weight
| Height (A) | 217 mm |
| Width (B) | 1122 mm |
| Depth (C) | 584 mm |
| Depth with fitting (D) | 1148 mm |
| Net weight | 35 kg |
Technical Features
- Horizontal or vertical installation – 2 or 4-pipe systems, compatible with any heat generator including low-temperature
- Antistatic plastic centrifugal fans with aerofoil profile for high performance and low noise
- Asynchronous motor with 3 speeds (H/M/L)
- Reversible main coil, optimised for sensible heat exchange
- Standard or enlarged coil for 2-pipe; hot-only coil accessory for 4-pipe
- Air filter Class G3, easy extraction – removable plastic scrolls
- Internal insulation Class 1 fire resistance – IP20
- VMF system compatible – wide range of controls and valves
Compatible Accessories
- Controls: TX, KTLP, PX/PX2, PXAE, PXAR, TPF, WMT05/06/10, FMT10, FMT21
- VMF system: VMF-E0X, VMF-E19, VMF-E4X/DX, VMF-IO, VMF-LON, VMF-SW, VMF-SW1
- 3-way valves: VCF43/VCF43S (main coil), VCF45 (hot-only)
- 2-way valves: VCFD3/VCFD4 – variable flow VJP/VJP_M
- 4-pipe kit: VCF3X4L/R – supplementary coils BV030/BV130/BV230/BV162
- Installation: AMP (hanging kit), BC4/BC6/BC9 (condensate trays), DSC4 (drain), ZX7/ZX8 (feet)
- Plenums & fittings: RDA_V, RDAC_V, RPA_V, RPM_V, PA_V, PM_V, RDMC_V, KFV10
- Grilles: GA/GAF (return), GM (supply adjustable), SE (outdoor air)
