Tank lt. 9000 approved diesel dispenser

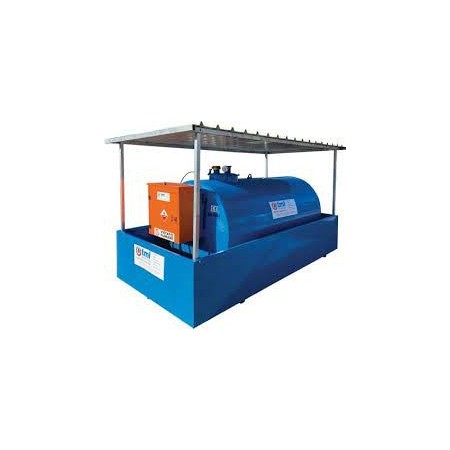

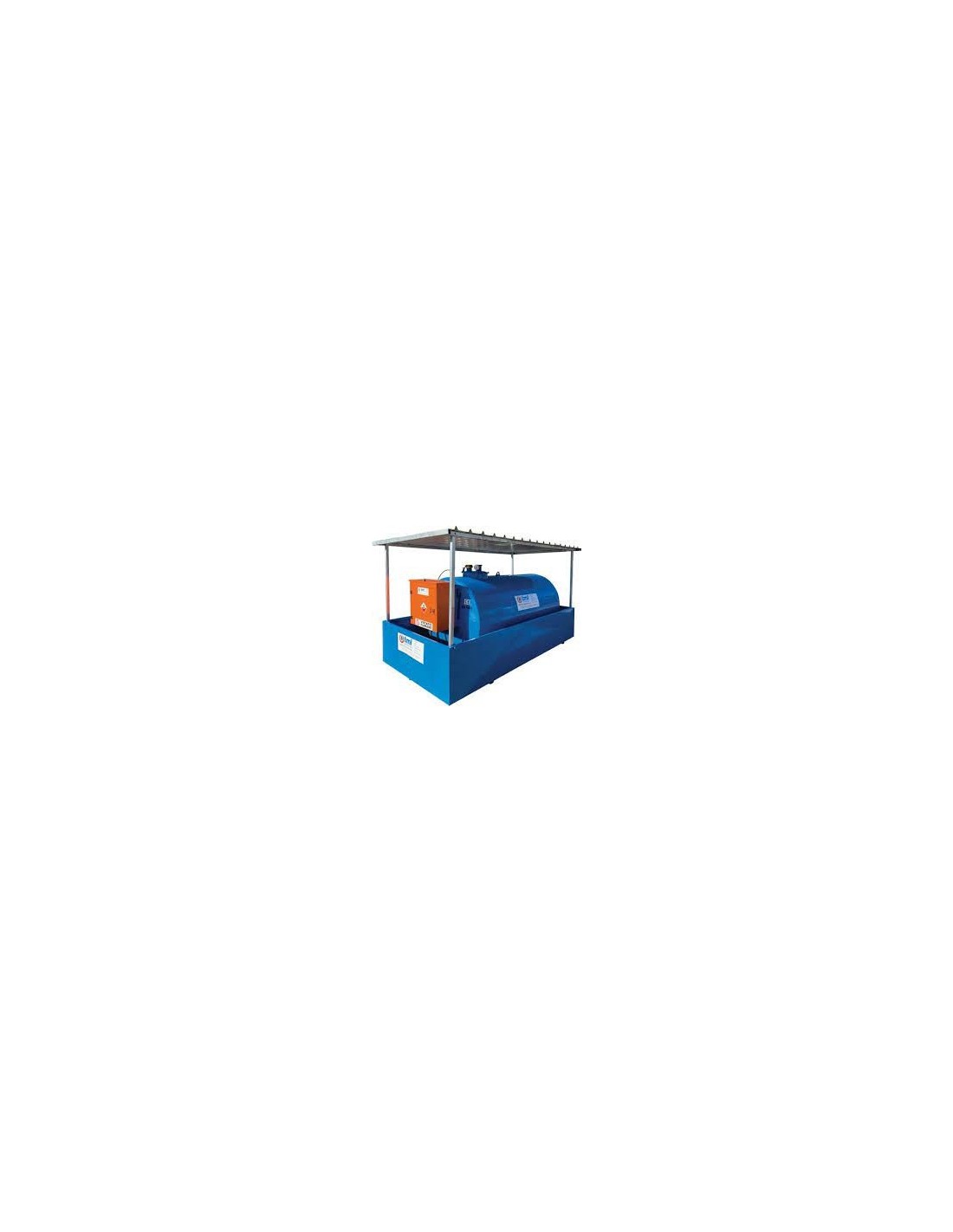

Approved fixed diesel dispensing tank 9000 litres – TML SE OM

The TML SE 9000 OM is a fixed diesel tank approved under D.M. 31/07/34, D.M. 19/03/1990 and D.M. 22/11/2017, with Test Certificate No. 3704/1437 (01/07/1999) and Ministry of the Interior approval. Suitable for permanent installation at industrial sites, hauliers, quarries, construction sites and farms.

Technical specifications

• Capacity: 9000 litres
• Material: S 235 Jr
• Internal treatment: Untreated
• External treatment: Anti-rust + two-component enamel RAL 5015
• Main dimensions: Ø 1800mm × Ls 3850mm
• Containment basin: 110% of geometric capacity
• Operating conditions: Atmospheric pressure / 25°C
• Warranty: 2 years (construction), 1 year (electrical parts)

Standard equipment

• Fully enclosed pump housing box
• Control panel with pump cutoff and emergency button
• Dispensing unit – 56 lt/min with 5 m hose and automatic nozzle
• Resettable total and partial flow meter
• Ø 420mm internal manhole with fittings
• Approved 3" load-limiting valve + 3" lockable loading cap
• Approved terminal flame arrestor
• Analogue level indicator
• Integrated containment basin
• Earthing system fitting
• Approval certificates + user manual

Optional accessories

Protective canopy, filtration kit (KFTZ), OCIO electronic level indicator, management system (Cube MC, MC Box System, Self-Service Column).
