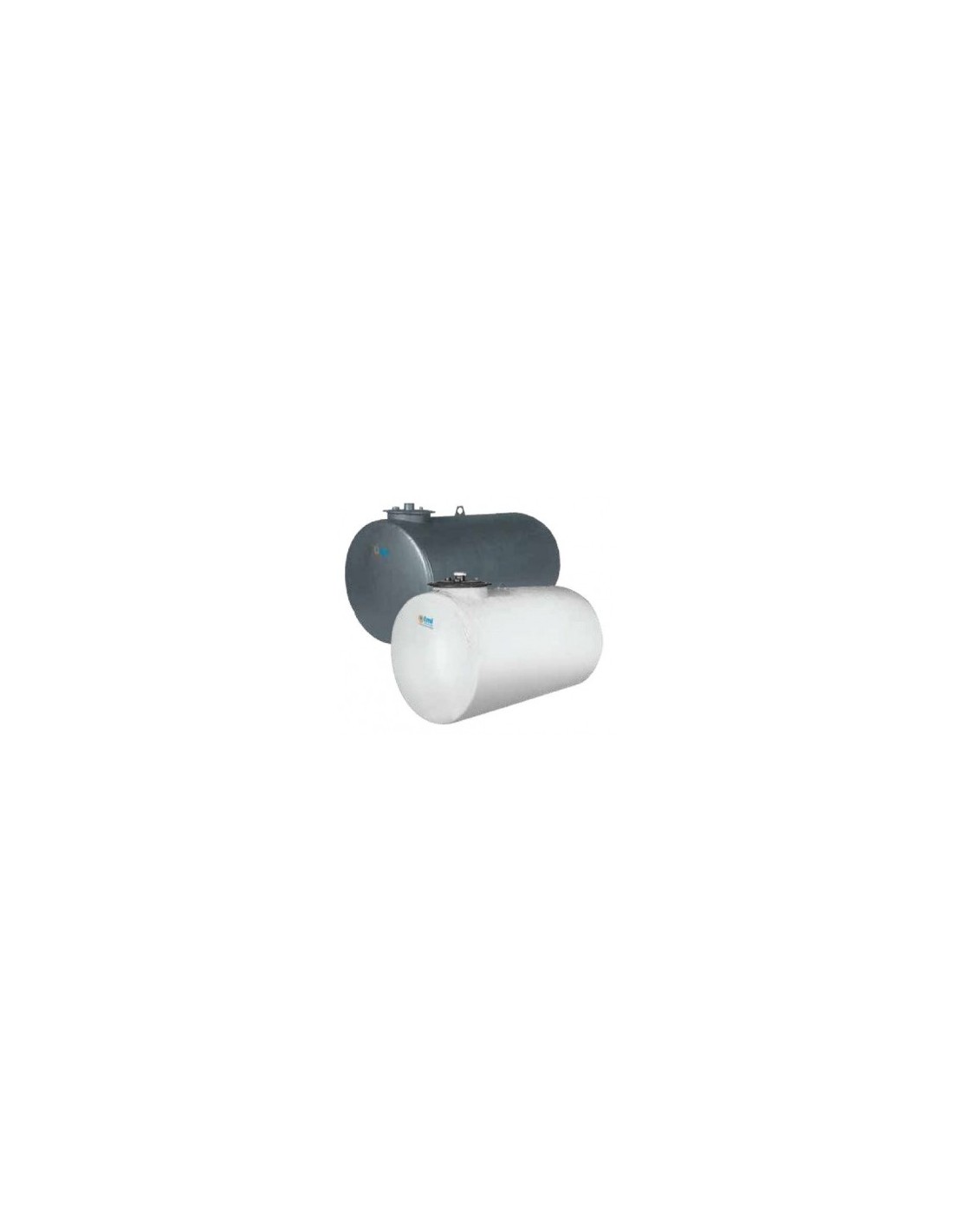

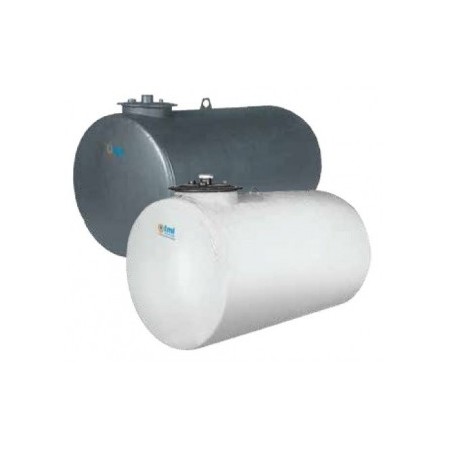

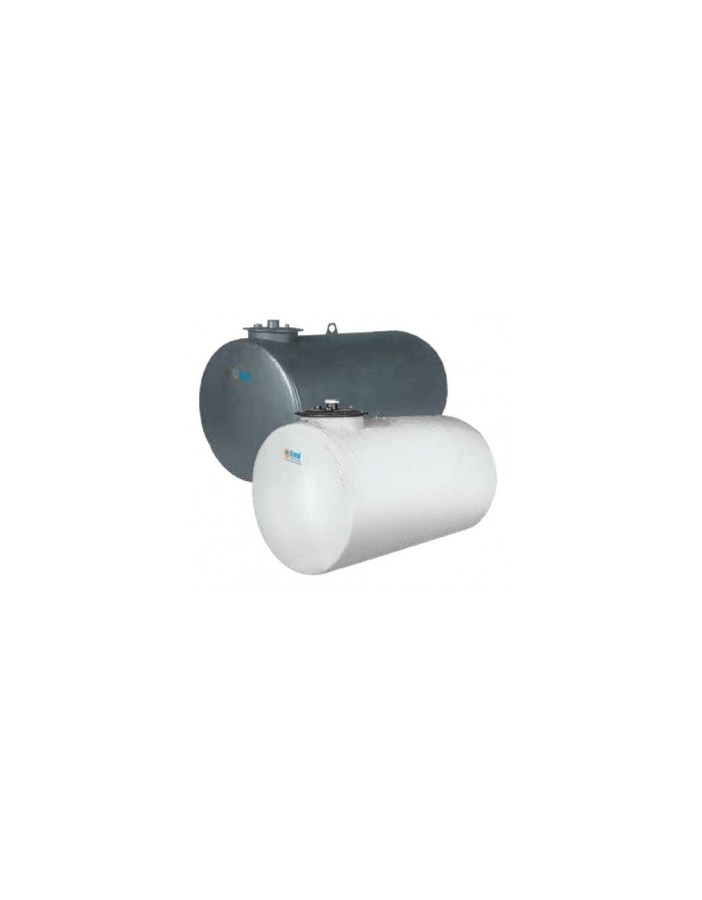

LT painted diesel storage tank. 6000 in FE th. 30/10 from underground
TML SG6000CA30 diesel storage tank – 6000L capacity, 30/10mm wall, painted finish. For category C liquids (diesel, mineral oils, lubricants, flash point >65°C).
- Capacity: 6000 L
- Material: Steel S235Jr, 30/10 mm wall
- External finish: Industrial enamel paint
- Max pressure/temp: Atmospheric / 25°C
- Dimensions: Ø1700x3050mm
- Manway Ø: 400 mm
- Warranty: 2 years
Description
TML SG6000CA30 Diesel Storage Tank – 6000L th.30/10 Painted
The TML SG6000CA30 tank is designed for storing category C liquids (flash point above 65°C): diesel, mineral oils, lubricants. Built from steel S235Jr, 30/10mm wall, external finish: industrial enamel paint.
Standard equipment: bolted manway with fittings, 1 bar pressure test certificate, calibration table (cm/L).
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | SG6000CA30 |
| Capacity | 6000 L |
| Material | Steel S235Jr |
| Wall thickness | 30/10 mm |
| Internal treatment | Bare steel |
| External treatment | Industrial enamel paint |
| Max pressure / temperature | Atmospheric / 25°C |
| Dimensions (Ø × H total) | Ø1700x3050mm |
| Manway Ø | 400 mm |
| Warranty | 2 years for manufacturing defects |
Standards
Italian Ministerial Decree 28/04/2005 (heating systems) – D.M. 29/11/2002 (fuel distribution). Custom tanks on request.
Available Accessories
Anti-spill pit, Ø620/Ø745 manway, support legs, 50% containment basin, protective canopy, 90% load-limiting valve (3"), lockable cap (3"), flame arrester (1"½), dip rod.
