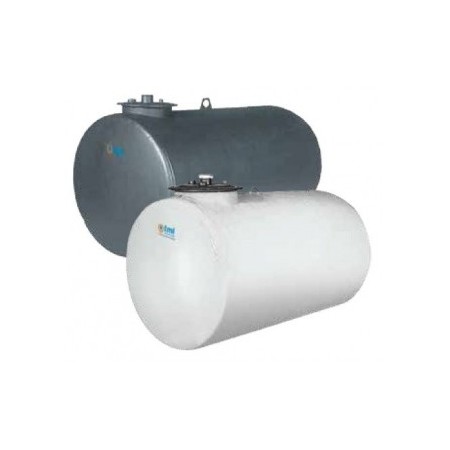

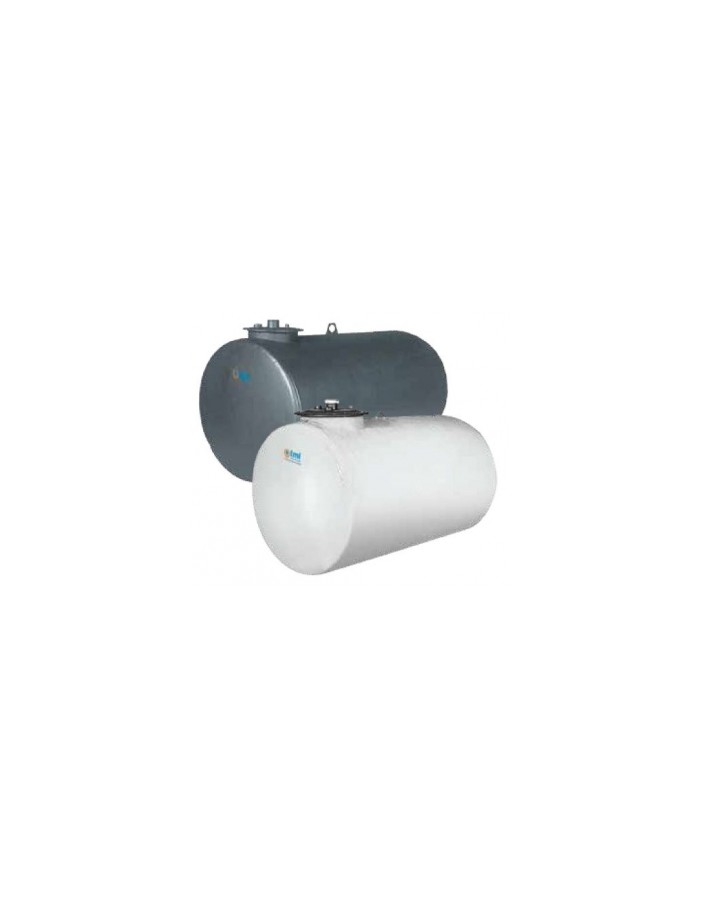

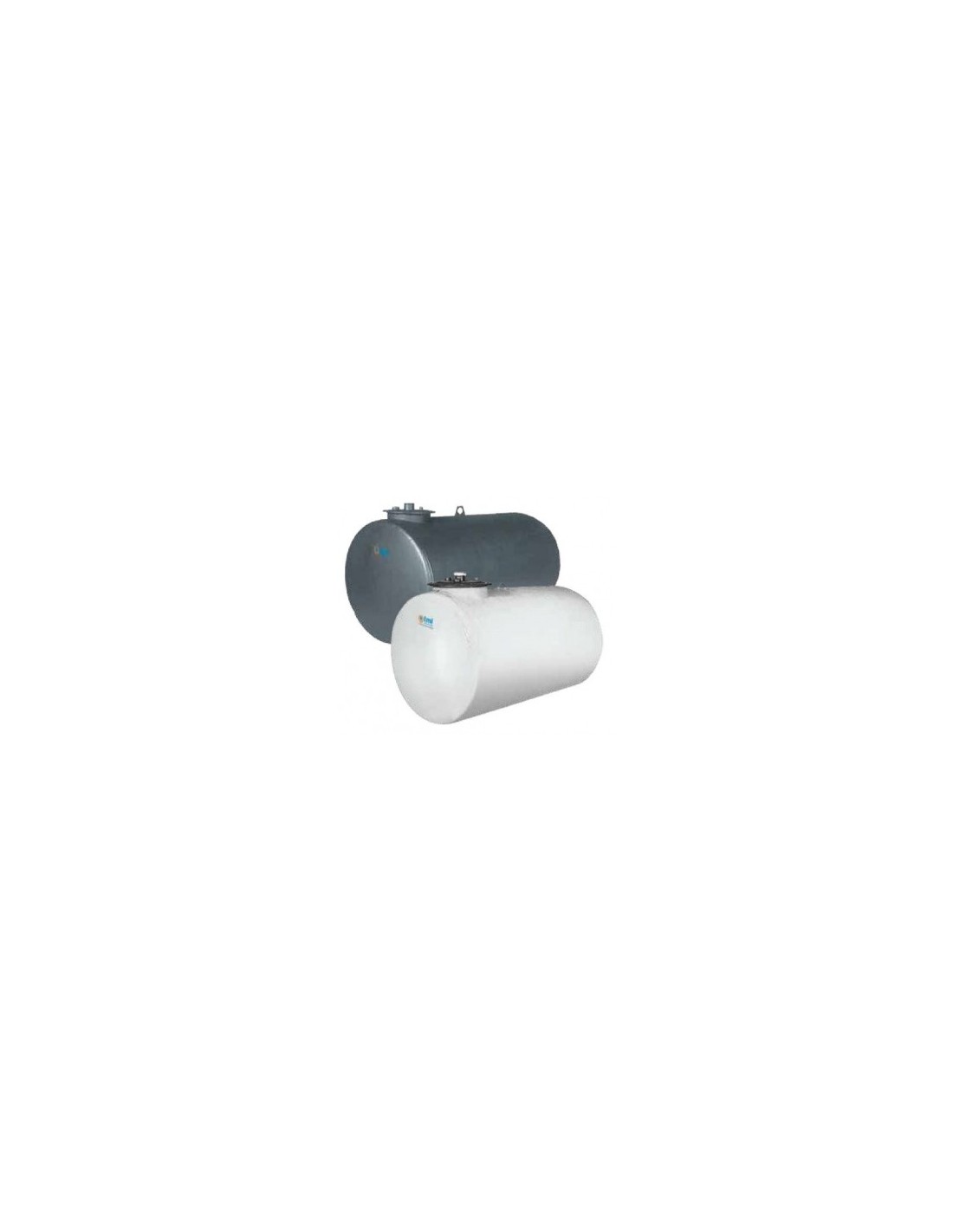

LT fiberglass diesel storage tank. 1200 in FE th. 40/10 underground
TML SG1200VT40 diesel storage tank – 1200L capacity, 40/10mm wall, fiberglass coated finish. For category C liquids (diesel, mineral oils, lubricants, flash point >65°C).
- Capacity: 1200 L
- Material: Steel S235Jr, 40/10 mm wall
- External finish: Fiberglass coating
- Max pressure/temp: Atmospheric / 25°C
- Dimensions: Ø950x1700mm
- Manway Ø: 300 mm
- Warranty: 2 years
Description
TML SG1200VT40 Diesel Storage Tank – 1200L th.40/10 Fiberglass coated
The TML SG1200VT40 tank is designed for storing category C liquids (flash point above 65°C): diesel, mineral oils, lubricants. Built from steel S235Jr, 40/10mm wall, external finish: fiberglass coating.
Standard equipment: bolted manway with fittings, 1 bar pressure test certificate, calibration table (cm/L).
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | SG1200VT40 |
| Capacity | 1200 L |
| Material | Steel S235Jr |
| Wall thickness | 40/10 mm |
| Internal treatment | Bare steel |
| External treatment | Fiberglass coating |
| Max pressure / temperature | Atmospheric / 25°C |
| Dimensions (Ø × H total) | Ø950x1700mm |
| Manway Ø | 300 mm |
| Warranty | 2 years for manufacturing defects |
Standards
Italian Ministerial Decree 28/04/2005 (heating systems) – D.M. 29/11/2002 (fuel distribution). Custom tanks on request.
Available Accessories
Anti-spill pit, Ø620/Ø745 manway, support legs, 50% containment basin, protective canopy, 90% load-limiting valve (3"), lockable cap (3"), flame arrester (1"½), dip rod.
