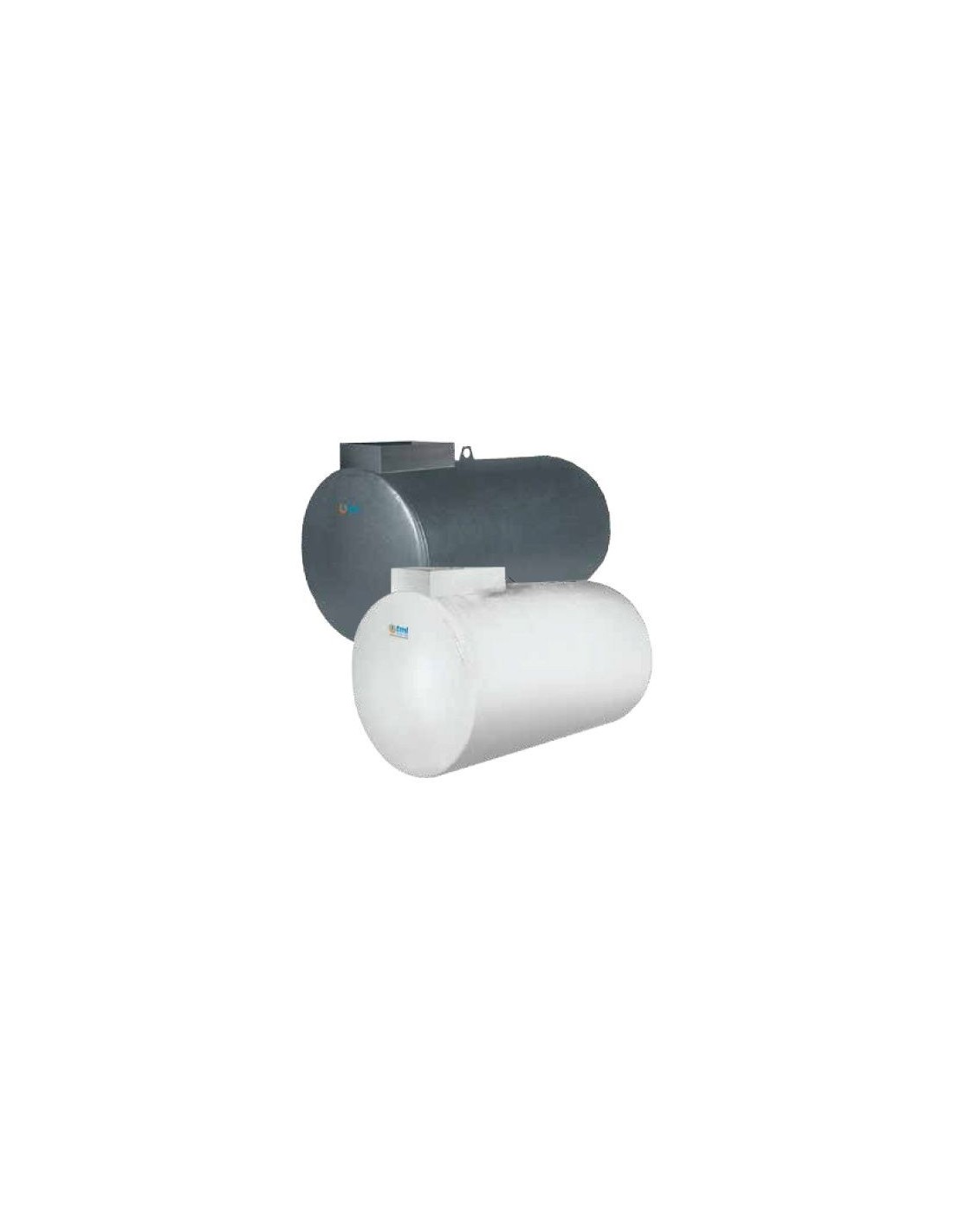

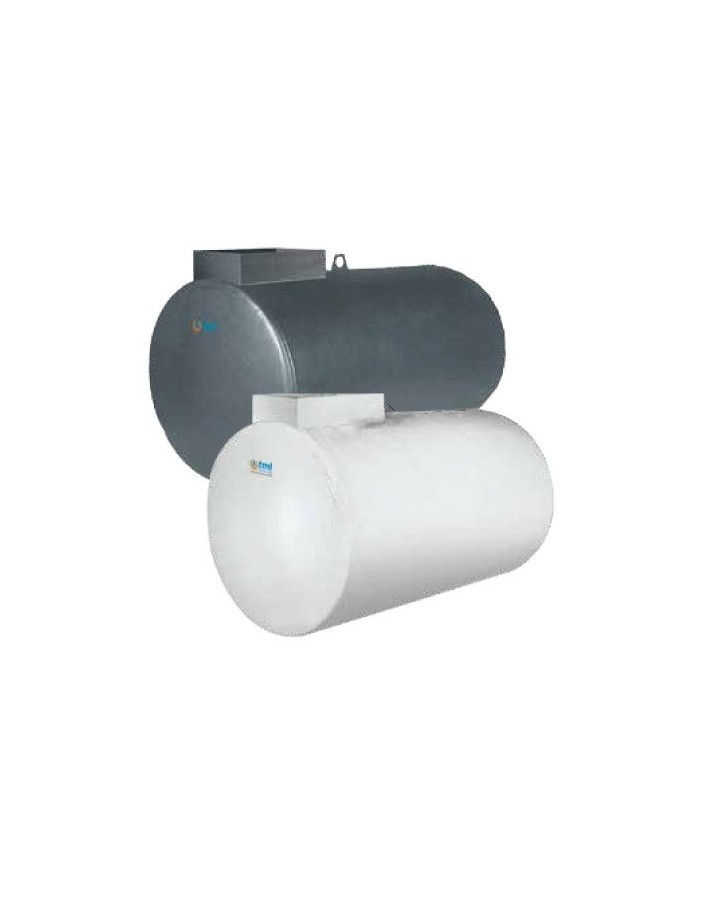

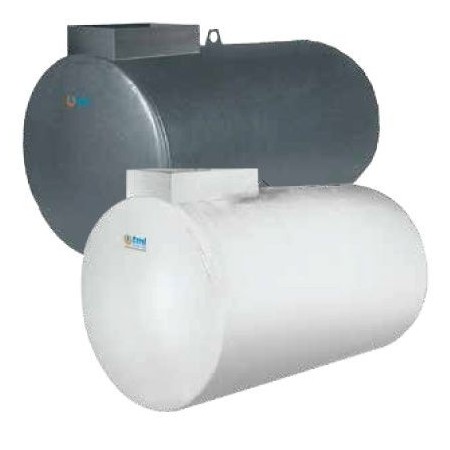

LT painted fuel storage tank. 10000 in FE double wall th. 40/10-30/10 from underground
TML DP10000CA43 double wall fuel tank – 10000L, int.40/10/ext.30/10, painted. Safety interstitial space for continuous leak monitoring. Compliant with D.M. 29/11/2002.
- Capacity: 10000 L
- Inner / outer wall thickness: 40/10 / 30/10 mm
- External finish: Industrial enamel paint
- Interstitial volume: 625 L (interstitial liquid: 125 kg)
- Gap G: 1200 mm
- Dimensions: Ø2040x3450mm
- Manway Ø: 400 mm
- Warranty: 2 years
Description
TML DP10000CA43 Double Wall Fuel Tank – 10000L int.40/10/ext.30/10 Painted
The TML DP10000CA43 is a double wall steel S235Jr fuel storage tank with safety interstitial space for continuous leak monitoring, compliant with D.M. 29/11/2002.
Standard equipment: bolted manway with fittings, anti-spill pit, pressure test certificate (1 bar tank / 0.5 bar interstitial), calibration table (cm/L).
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | DP10000CA43 |
| Capacity | 10000 L |
| Inner wall thickness | 40/10 mm |
| Outer wall thickness | 30/10 mm |
| External treatment | Industrial enamel paint |
| Max pressure / temperature | Atmospheric / 25°C |
| Interstitial volume | 625 L |
| Interstitial liquid (20% dilution) | 125 kg |
| Gap G | 1200 mm |
| Dimensions (Ø × H total) | Ø2040x3450mm |
| Manway Ø | 400 mm |
| Warranty | 2 years for manufacturing defects |
Standards
Italian Ministerial Decree 28/04/2005 – D.M. 29/11/2002. Custom tanks available on request.
Available Accessories
90% load-limiting valve (3"), lockable cap (3"), flame arrester (1"½), dip rod, leak detector kit, interstitial liquid, support legs.
