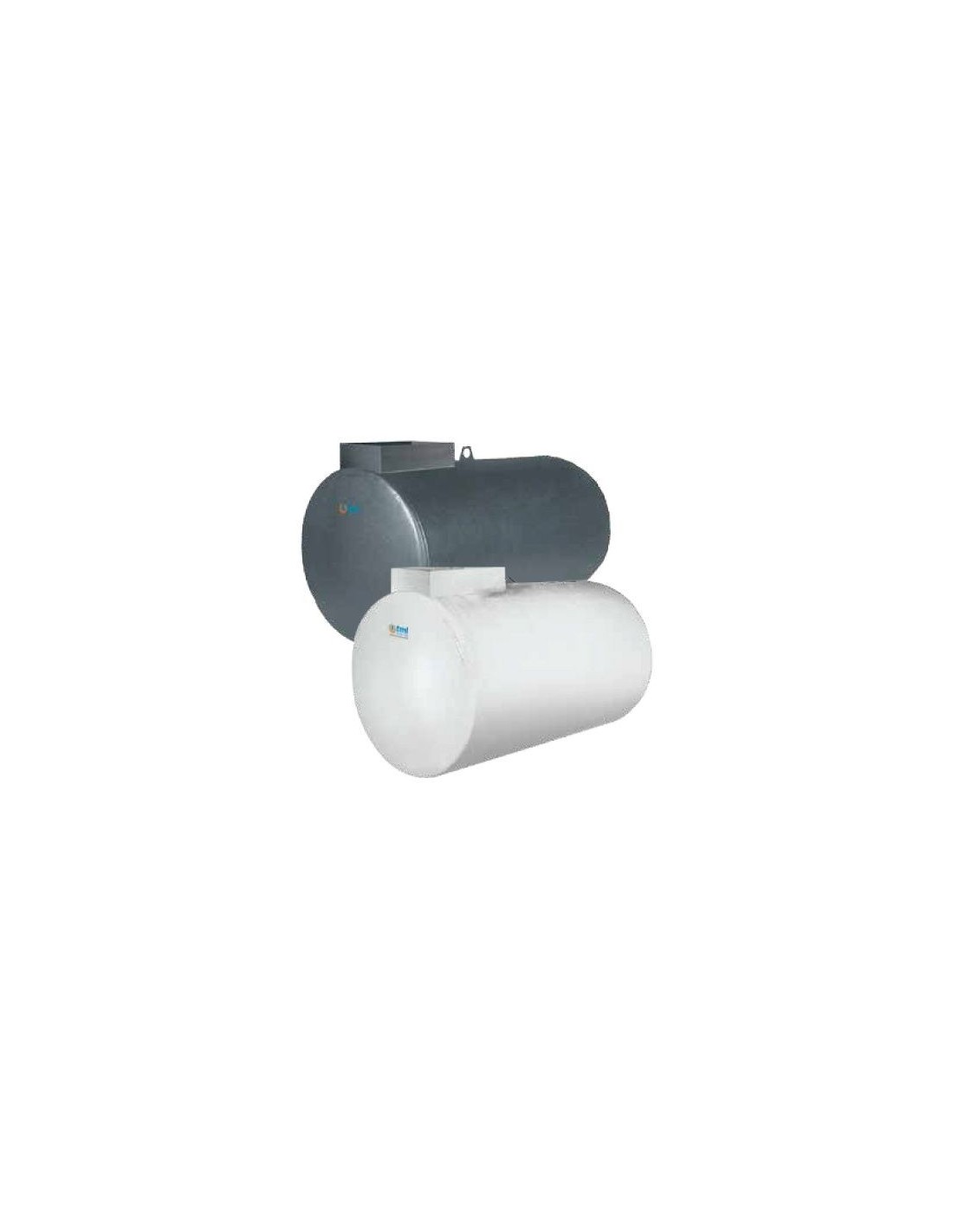

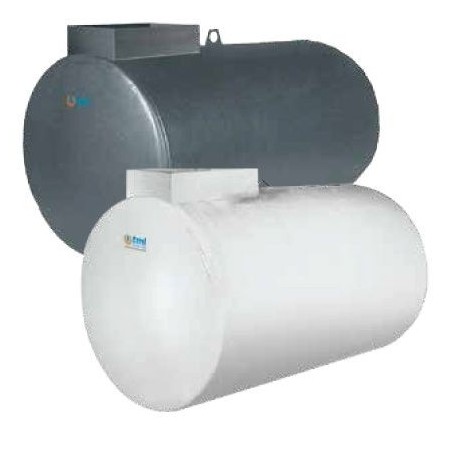

LT painted fuel storage tank. 50000 in FE double wall th. 60/10-60/10 underground
TML DP50000CA66 double wall fuel tank – 50000L, int.60/10/ext.60/10, painted. Safety interstitial space for continuous leak monitoring. Compliant with D.M. 29/11/2002.
- Capacity: 50000 L
- Inner / outer wall thickness: 60/10 / 60/10 mm
- External finish: Industrial enamel paint
- Interstitial volume: 2500 L (interstitial liquid: 500 kg)
- Gap G: 1200 mm
- Dimensions: Ø2550x10570mm
- Manway Ø: 500 mm
- Warranty: 2 years
Description
TML DP50000CA66 Double Wall Fuel Tank – 50000L int.60/10/ext.60/10 Painted
The TML DP50000CA66 is a double wall steel S235Jr fuel storage tank with safety interstitial space for continuous leak monitoring, compliant with D.M. 29/11/2002.
Standard equipment: bolted manway with fittings, anti-spill pit, pressure test certificate (1 bar tank / 0.5 bar interstitial), calibration table (cm/L).
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | DP50000CA66 |
| Capacity | 50000 L |
| Inner wall thickness | 60/10 mm |
| Outer wall thickness | 60/10 mm |
| External treatment | Industrial enamel paint |
| Max pressure / temperature | Atmospheric / 25°C |
| Interstitial volume | 2500 L |
| Interstitial liquid (20% dilution) | 500 kg |
| Gap G | 1200 mm |
| Dimensions (Ø × H total) | Ø2550x10570mm |
| Manway Ø | 500 mm |
| Warranty | 2 years for manufacturing defects |
Standards
Italian Ministerial Decree 28/04/2005 – D.M. 29/11/2002. Custom tanks available on request.
Available Accessories
90% load-limiting valve (3"), lockable cap (3"), flame arrester (1"½), dip rod, leak detector kit, interstitial liquid, support legs.
