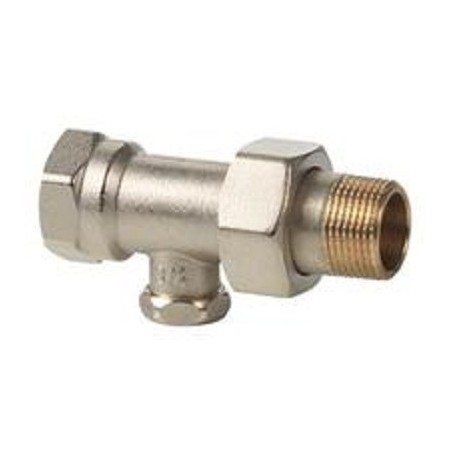

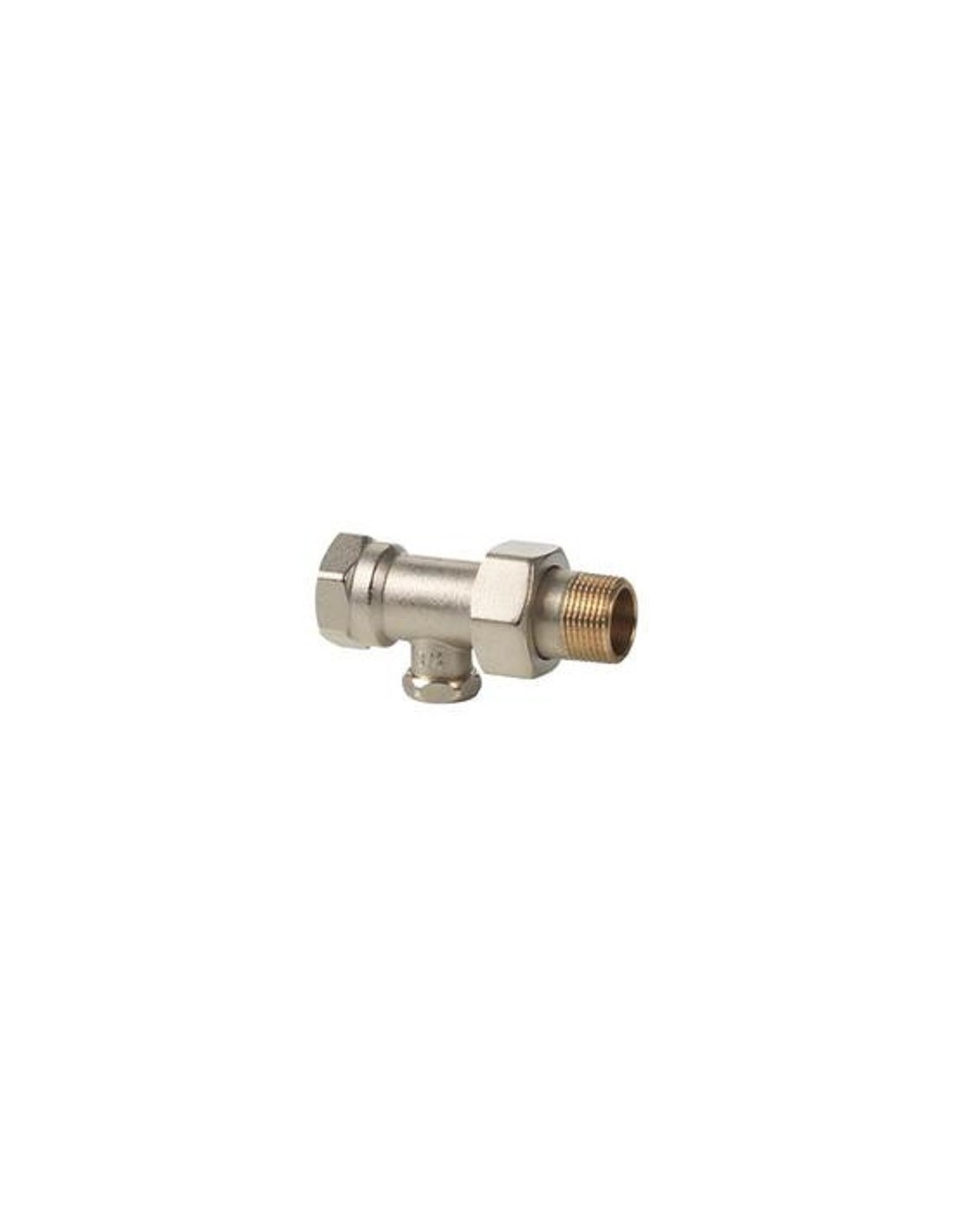

SIEMENS ADN20 LOCKSHIELD STRAIGHT 3/4"
BARGAIN PRICE DUE TO:
- Damaged or missing original packaging
- Slight cosmetic defects possible
Description
Straight N/F thermostatic radiator valve DN 20 PN 10 for heating systems for regulating, controlling and limiting the room temperature in combination with a thermostatic regulator or electric actuator. Recommended fluid water with max. 40% glycol. Complies with EN 215-1. Adjustable Kvs 0.31 ... 1.41 m3/h. All valves are supplied with a protective cover that allows manual adjustments. The cover should only be used for protection until the system is complete then it will be replaced with suitable servo controls. Control unit replaceable without having to empty the system. The valves can be used with servocontrols of the series: RTN.., SSA.., STA.. Stroke = >1.2 mm Dp max = 60 kPa DPv100 = 5...20 kPa Fluid temperature = 1...120 °C Pressure operating pressure = 1000 kPa Valve body = Nickel-plated brass
