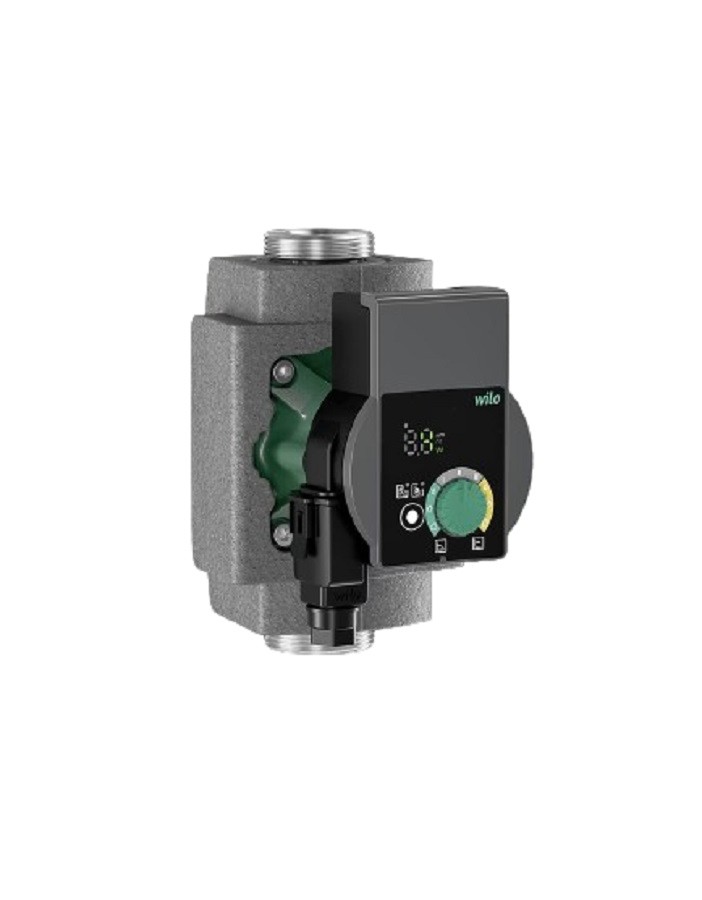

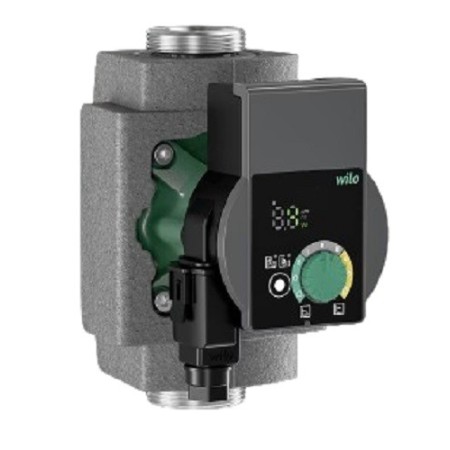

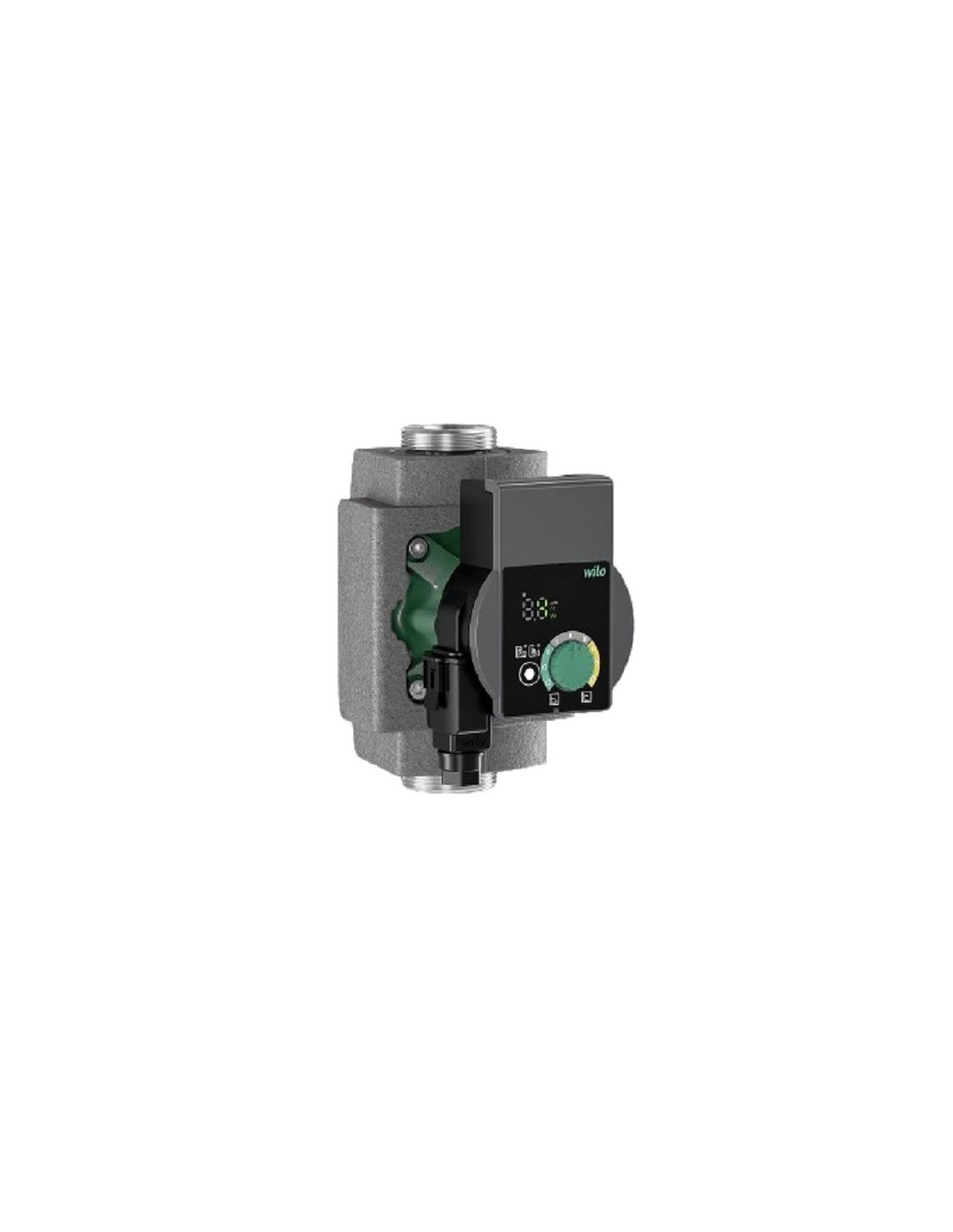

Wilo YONOS PICO-Z 25/0,5-6 Premium circulator with single wet rotor, EC technology for electronic control, galvanized, for DHW circuits, 1" PN10 threaded connections, 130mm wheelbase, 1X230V
Wilo Yonos PICO-Z 25/0,5-6 130 – High-efficiency wet-rotor circulator. EEI ≤ 0.20 | Art. no. 4255416
- Connection: G 1'' 1/2 | Centre distance: 130 mm
- Fluid temp.: -10 °C +95 °C | PN 10
- Power supply: monofase
- Protection: IP X4D
- Application: DHW recirculation
Description
Wilo Yonos PICO-Z 25/0,5-6 130 – High-Efficiency Wet-Rotor Circulator
The Wilo Yonos PICO-Z 25/0,5-6 130 (Article no. 4255416): Circolatore singolo a rotore bagnato ad alta efficienza. Alim. monofase. Bocche filettate G 1'' 1/2. Temp. -10 °C +95 °C. Grado protezione IP X4D. Pressione nom. PN 10. Interasse 130 mm.
Technical Data
- Article no.: 4255416
- Connection: G 1'' 1/2
- Centre distance: 130 mm
- Fluid temp.: -10 °C +95 °C
- Nominal pressure: PN 10
- Power supply: monofase
- Protection: IP X4D
Features & Benefits
- Self-protecting EC motor with electronic control
- Dynamic Adapt plus technology
- Colour display with intuitive menu and Wilo Green Button
- One-click commissioning via Wilo-Connector
- Modes: variable/constant DP, manual, night set-back
- EEI ≤ 0.20 – among the most efficient on the market
- Compliant with ErP 2009/125/EC and Reg. (EU) 641/2009
