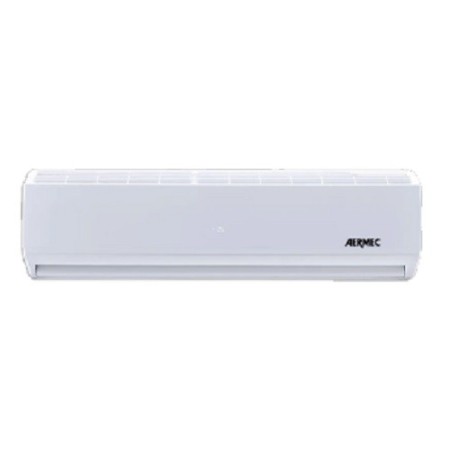

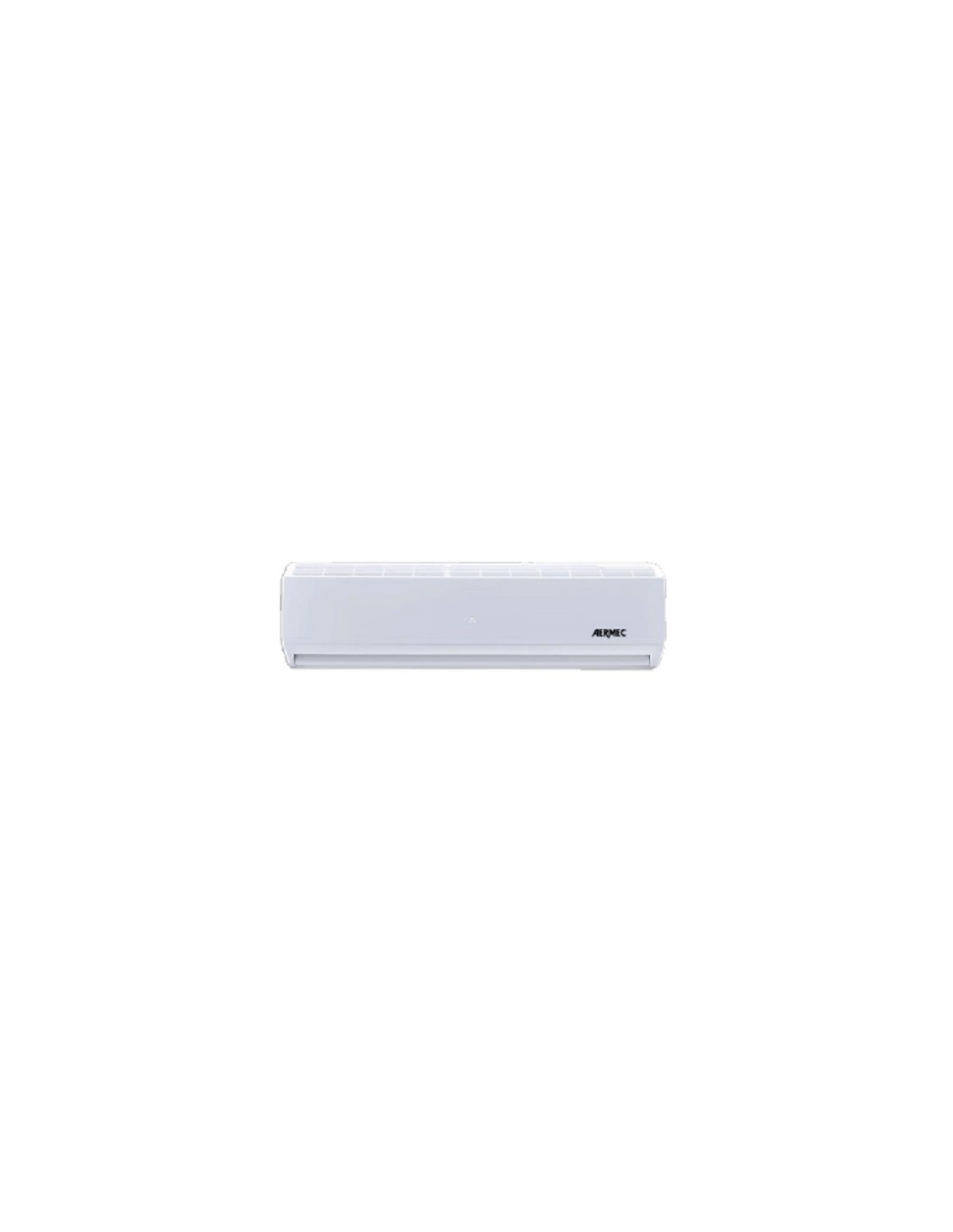

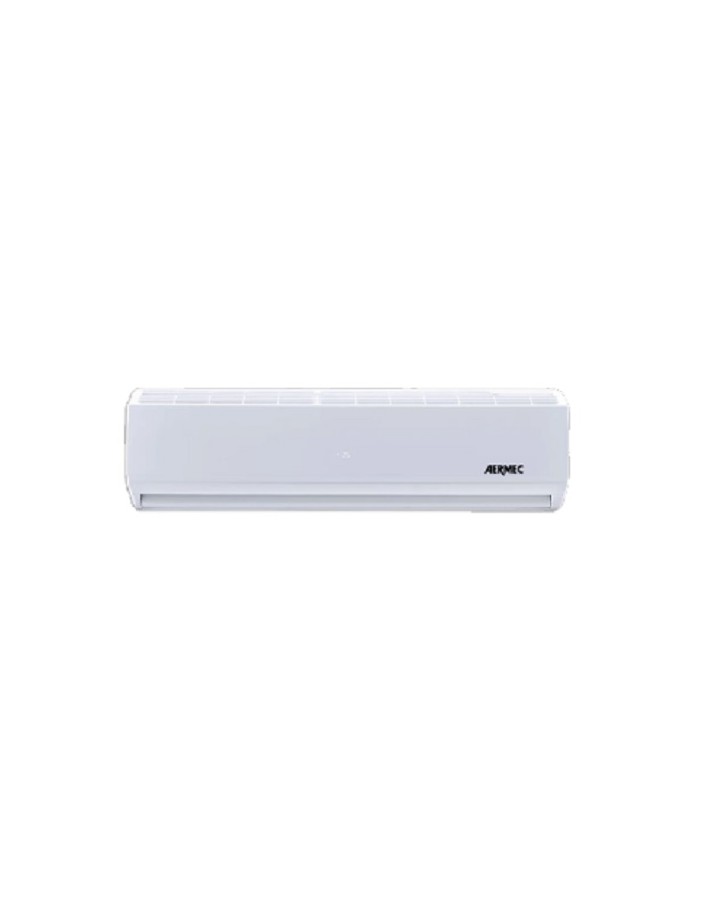

FCW432V water fan coil unit
Aermec FCW432V wall fan coil unit FCW series, size 43, with 2-way valve. Cooling capacity 3.8 kW, max heating capacity (70/60°C) 7.97 kW. Compact dimensions 360×1170×220 mm, 19 kg. Max sound level 54 dB(A). 230V~50Hz. Eurovent certified.
Description
Aermec FCW432V Wall Fan Coil Unit series FCW
The FCW432V fan coil unit by Aermec is the ideal hydronic terminal for wall installation in residential and light commercial applications. The flat panel design in white RAL 9010 blends seamlessly into any environment. Its compact footprint (360×1170×220 mm) makes it comparable to a modern radiator.
Key Features
- High-aesthetic flat panel design, pure white RAL 9010 Pantone GRIS 1C
- Horizontally adjustable air supply vanes
- 3-speed tangential asynchronous motor (L/M/H), low noise
- Copper tube / aluminium fin heat exchanger with female BSP 1/2" hydraulic connections
- Easy-remove, cleanable air filter
- Integrated Internal 2-way valve
- Control: integrated microprocessor, compatible with TLW4 remote and PFW5 panel
- Power supply: 230V~50Hz
- Eurovent Performance certified compliant with EN 16583:15
- Cold Plasma ionizer kit compatible (accessory FCWCP)
- VMF-485LINK compatible for VMF-E5/VMF-E6 supervisors
Technical Data FCW432V
| Parameter | Value |
|---|---|
| Max cooling capacity (7°C/12°C, speed H) | 3.8 kW |
| Max heating capacity (70°C/60°C, speed H) | 7.97 kW |
| Max heating capacity (45°C/40°C, speed H) | 3.96 kW |
| Sound pressure level (speed H) | 54 dB(A) |
| Max power input (speed H) | 48 W |
| Dimensions A×B×C | 360×1170×220 mm |
| Empty weight | 19 kg |
| Hydraulic connections | 1/2" female BSP |
| Power supply | 230V~50Hz |
| Version | with 2-way valve |
Compatible Accessories
TLW4 remote control (mandatory), PFW5 wired panel, Cold Plasma ionizer kit FCWCP, VMF-485LINK
