Description
Description

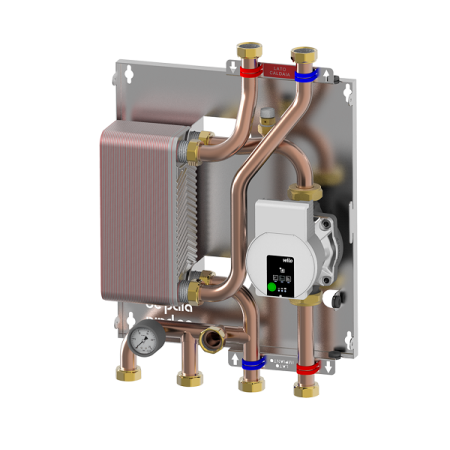

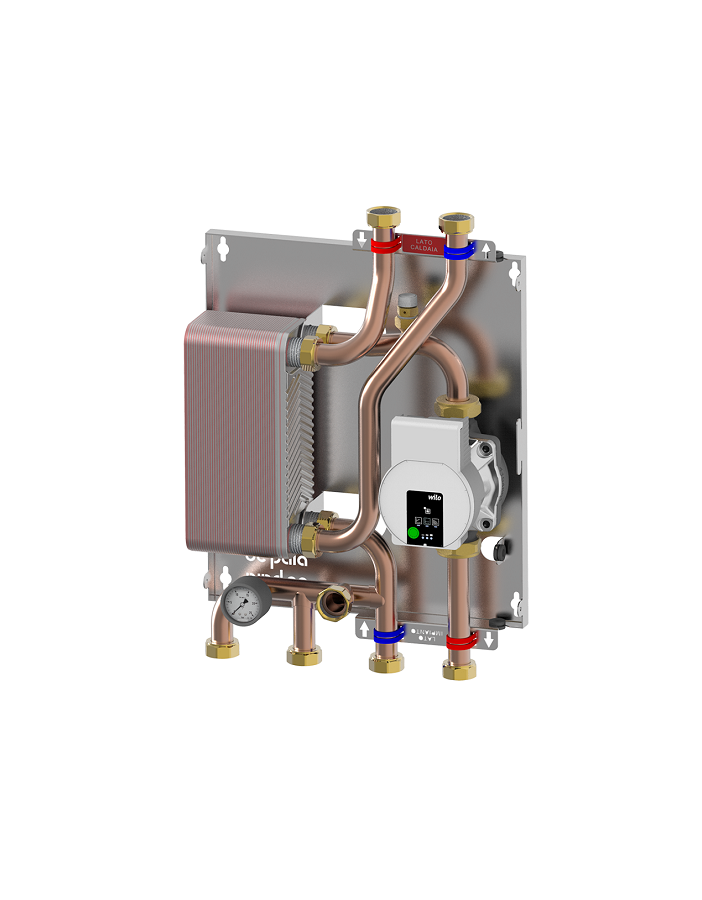

Module dedicated to the separation of the fluid of the primary circuit (heat generator) from that of the secondary circuit by means of a brazed plate heat exchanger and booster pump.
Available in versions for direct relaunch or for mixed relaunch by thermostatic valve with adjustable fixed point.
The SEPDIR separation module is equipped with connections for the hydraulic loading and unloading of the heating system circuit, connection for safety valve and expansion tank (by the installer) and pressure gauge.
Technical Data
Nominal pressure: 6 bar
Fluid operating temperature: 15° - 85°C
Fluid: Clean water (no solids/abrasives)
Connections designed for loading/unloading
Materials:
Fixing plate: 12/10 galvanized steel
Pipes: copper
Thermostatic Valve: brass
Gaskets: EPDM
Seals: PTFE
Brazed plate heat exchanger: AISI 316 stainless steel
