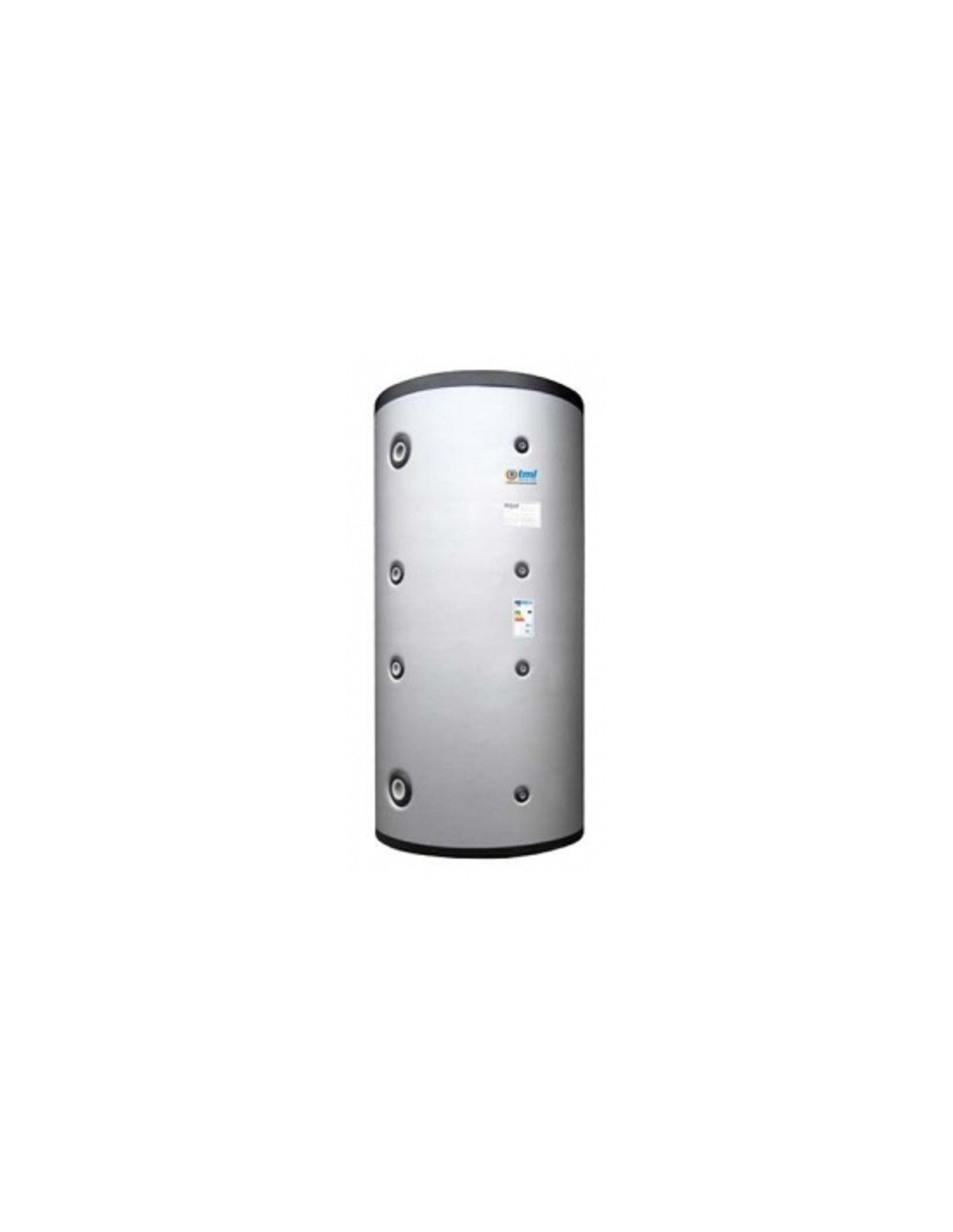

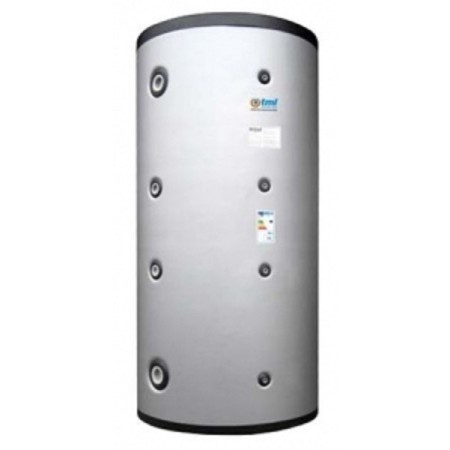

copy of Tml ACF00200R Hot/cold storage lt. 200 Thermal flywheel for rigid insulation heat pumps
TML ACF 289.8L hot/cold buffer tank for reversible heat pump systems. Functions as thermal flywheel and hydraulic separator.
- Capacity: 289.8 L
- Material: Carbon steel S235Jr
- Max pressure/temp: 6 bar / -10 ÷ +95°C
- Insulation: Poliuretano rigido 50mm + PVC
- Weight: 42 kg
- Dimensions: Ø500x1610mm
- ErP Class: B
- Warranty: 5 years
Description
TML ACF 289.8L Hot/Cold Buffer Tank – Code ACF00300R
The TML ACF 289.8L is a thermal buffer tank in carbon steel S235Jr, externally coated with anti-rust primer and industrial enamel, designed for hot and cold technical water storage in systems with reversible heat pumps. It also functions as a hydraulic separator, decoupling the heat source flow from the distribution circuit. Large-diameter connections allow high flow rates.
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | ACF00300R |
| Actual capacity | 289.8 L |
| Material | Carbon steel S235Jr |
| Internal treatment | Bare steel |
| External treatment | Anti-rust + industrial enamel |
| Max pressure / temperature | 6 bar / -10 ÷ +95°C |
| Insulation | Poliuretano rigido 50mm + PVC |
| Dimensions (Ø × H) | Ø500x1610mm |
| Weight | 42 kg |
| ErP Class | B |
| Warranty | 5 years |
Standards
Directive 2014/68/EU (PED) Art. 4 Par. 3 – Directive 2009/125/EC (Energy related Products)
