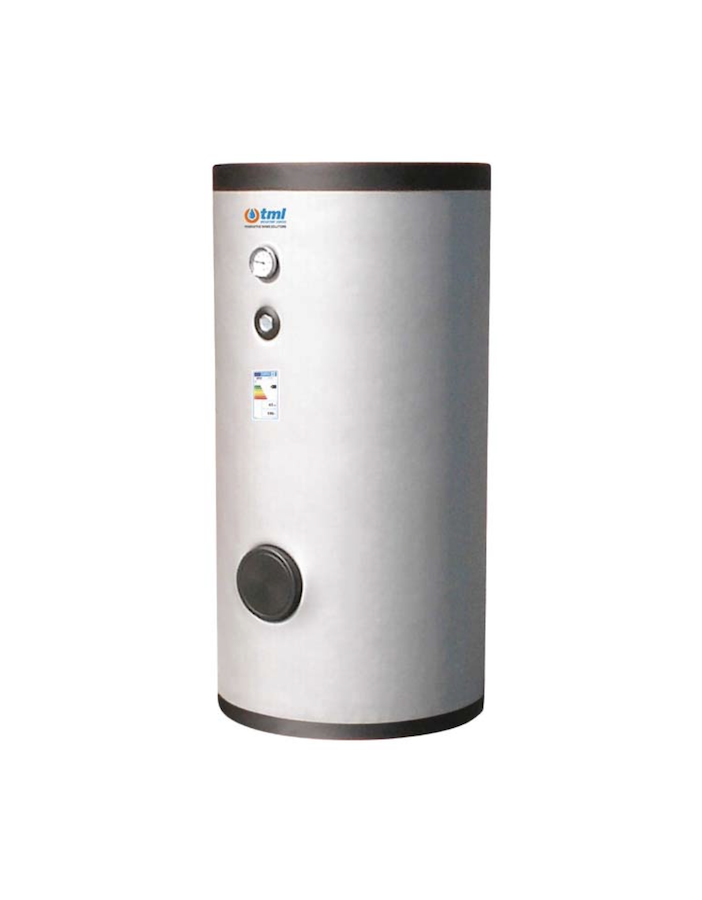

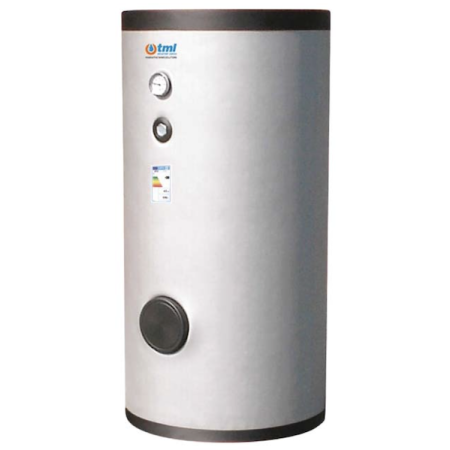

Tml WP1V00200R Kettle lt. 200 porcelain glass with a fixed coil heat exchanger rigid insulation

Heat Pump DHW Storage Tank 189 Litres in Vitreous Enamel Carbon Steel S235Jr – WP1V00200R

The WP1V00200R is a vertical domestic hot water (DHW) storage tank with a capacity of 189 litres, manufactured in vitreous enamel carbon steel S235Jr by TML Industrie Loddo for DHW production and storage with heat pump systems. The vitreous enamel body provides excellent corrosion resistance through its inorganic food-grade lining (DIN 4753.3), combining material economy with the performance required by modern heat pump installations. Equipped with a single fixed spiral coil heat exchanger offering 2.1 m² of exchange surface, it ensures efficient heat transfer even at the low primary temperatures typical of heat pump operation.

Technical Specifications – WP1V00200R

• Tank material: Carbon steel S235Jr vitreous enamel – Inorganic food-grade lining (DIN 4753.3) – Anti-rust external coating
• Max pressure / Max temperature (domestic side): 8 bar / 95°C
• Actual capacity: 189 litres
• Heat exchanger: 2.1 m² – Single fixed spiral coil – max 10 bar / 95°C
• Cathodic protection: Replaceable magnesium anode
• Insulation: Rigid PU foam + PVC, thickness 50 mm (Fire class B3 DIN 4102)
• ErP: Class B – Heat loss: 56.7 W
• Dimensions: Ø 450 mm × Height 1320 mm
• Weight: 78 kg
• Electric heater connection: 1½" fitting (heater not included)
• Warranty: 5 years

Spiral Coil Technology – Optimised for Heat Pumps

Fixed spiral coil heat exchanger for efficient heat transfer between the heat pump and the stored water. The vitreous enamel body is the ideal solution for those seeking heat pump boiler performance with an excellent price-to-quality ratio compared to stainless steel versions.

Applications and Compatibility

Ideal for air-to-water or water-to-water heat pumps. Also compatible with conventional gas boilers as backup. Pre-fitted for DHW recirculation, temperature sensor, thermostat, and electric backup heater. Available with rigid insulation (up to 600 litres) or removable flexible insulation (from 800 litres).

Standards and Certifications

The WP1V00200R complies with: PED Directive 2014/68/EU (Art. 4 Par. 3), Italian D.M. 6 April 2004 N.174, ErP Directive 2009/125/EC.
