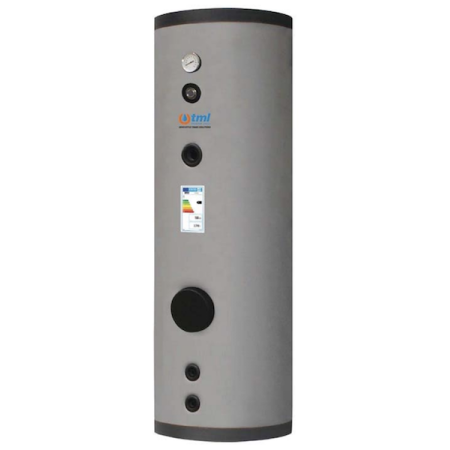

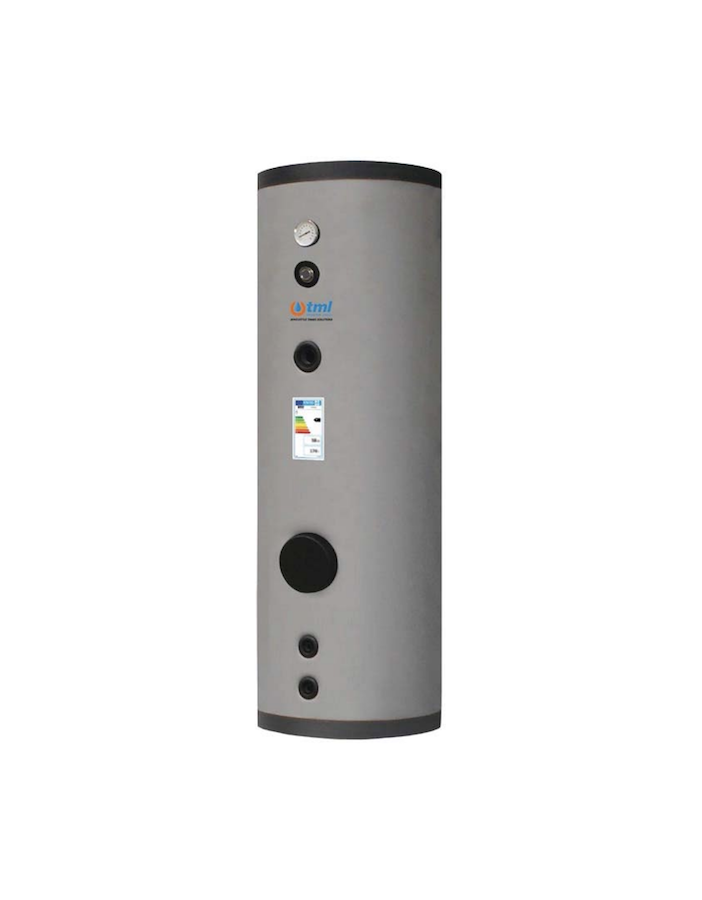

Tml TW1V00300R Kettle lt. 300 porcelain glass with a fixed coil heat exchanger rigid insulation

2-in-1 Hybrid Heat Pump Storage Tank 290 Litres in Vitreous Enamel – TW1V00300R

The TWIN TW1V00300R is an integrated 2-in-1 heat pump system combining in a single vertical unit a 290-litre DHW boiler in vitreous enamel carbon steel S235Jr (upper tank) and a 58-litre inertial buffer in carbon steel (lower tank). This innovative solution by TML Industrie Loddo allows a complete DHW production and heating system powered by a heat pump, while optimising space and reducing installation costs compared to two separate tanks.

Technical Specifications – TW1V00300R

• DHW boiler (upper tank):
• Material: vitreous enamel carbon steel S235Jr – Inorganic food-grade enamel (DIN 4753.3) inside – anti-rust coating outside
• Max pressure / Max temperature: 8 bar / 95°C
• Actual DHW capacity: 290 litres
• Heat exchanger: 3.5 m² – Fixed double parallel spiral coil – max 10 bar / 95°C
• Cathodic protection: Replaceable magnesium anode
• Inertial buffer (lower tank):
• Material: Carbon steel S235Jr – Anti-rust coating
• Max pressure / Max temperature: 4 bar / 95°C
• Buffer capacity: 58 litres
• Total insulation: Rigid PU foam + PVC 50 mm (Fire class B3 DIN 4102) – non-removable
• ErP (DHW boiler): Class B – Heat loss: 69.2 W
• Dimensions: Ø 500 mm × Height 1980 mm
• Weight: 127 kg
• Electric heater connection: 1½" fitting (heater not included)
• Warranty: 5 years

Twin Technology – Two Tanks in One Body

The TWIN system elegantly addresses the need for both a high-efficiency DHW boiler and an inertial buffer for heating. The double parallel spiral coil maximises contact surface in the coldest zones of the tank, reducing heat pump start/stop cycles and improving the overall system COP. The lower inertial buffer is fed by the same heat pump, acting as a thermal flywheel for the low-temperature heating circuit (underfloor heating, fan coils, etc.), further reducing start/stop cycles and extending heat pump service life.

Why Choose the TWIN TW1V00300R?

Compared to installing a separate DHW boiler and buffer, the TWIN offers: space savings (one footprint instead of two), reduced installation costs (fewer hydraulic connections, faster installation), optimised heat pump operation through combined thermal storage, and unified management of DHW + heating from a single heat source.

Standards and Certifications

The TW1V00300R complies with: PED Directive 2014/68/EU (Art. 4 Par. 3), Italian D.M. 6 April 2004 N.174, ErP Directive 2009/125/EC.
