DHW Thermal Storage Tank 189 Litres in AISI 316L stainless steel (1.4404) – ELX00200R

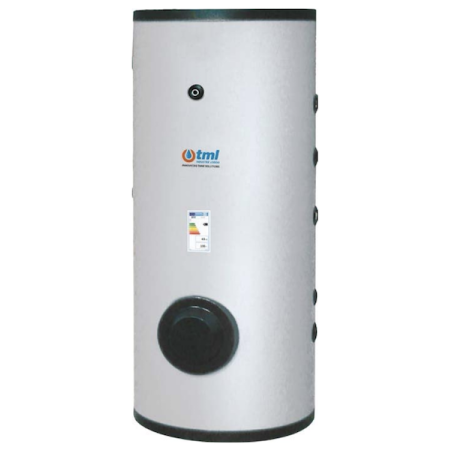

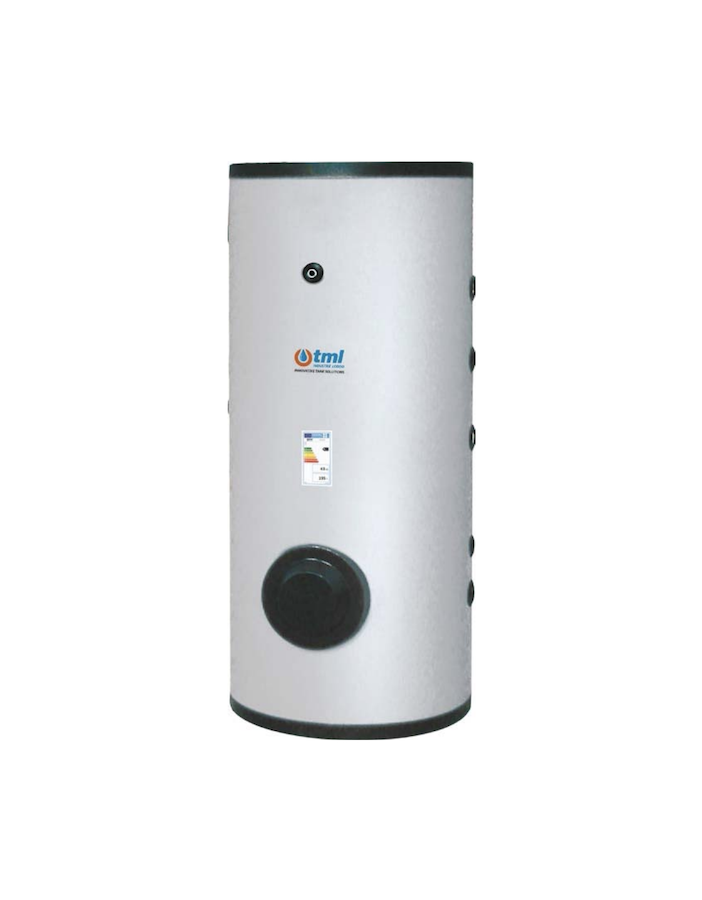

The ELX00200R is a vertical DHW thermal storage tank with a capacity of 189 litres, manufactured in AISI 316L stainless steel (1.4404) by TML Industrie Loddo for domestic hot water (DHW) storage without an internal heat exchanger. The tank is designed for the installation of high-power electric immersion heaters via a large flanged inspection port, making it the ideal solution for systems with an external DHW generator (boiler, heat pump, solar thermal) that require a dedicated storage volume, or for direct electric heating.

Technical Specifications – ELX00200R

• Material: AISI 316L stainless steel (1.4404) – Pickling and passivation inside and out
• Max pressure / Max temperature: 6 bar / 95°C
• Actual capacity: 189 litres
• Internal heat exchanger: None – heating via electric immersion heater or direct injection from external generator
• Inspection port: Flanged – suitable for high-power electric heaters (flange 120/180)
• Cathodic protection: Replaceable magnesium anode
• Insulation: rigid PU foam + PVC 50 mm (Fire class B3 DIN 4102)
• ErP: Class B – Heat loss: 56.7 W
• Dimensions: Ø 450 mm × Height 1305 mm
• Weight: 48 kg
• Electric heater connections: 1½" threaded fitting + flanged inspection port 120/180
• Warranty: 5 years

Electric Heater Compatibility

The flanged inspection port of the ELX00200R is compatible with the TML REX electric heater range (30T, 40T, 50T, 75T, 90T, 120T for 800 and 1000-litre models) and with threaded heaters mounted on a CRI/CRV 180 adapter flange. This allows the tank to be configured as a large-capacity standalone electric water heater or as a buffer storage in multi-source systems.

Applications and Compatibility

The ELX00200R is suitable for: systems with an external DHW generator (gas boiler, heat pump, solar collector) requiring a separate storage volume; off-peak tariff installations with overnight electric heating; electric backup in hybrid systems; commercial and industrial applications with high DHW demand. The vertical design promotes thermal stratification, improving storage efficiency.

Standards and Certifications

The ELX00200R complies with: PED Directive 2014/68/EU (Art. 4 Par. 3), Italian D.M. 6 April 2004 N.174, ErP Directive 2009/125/EC.
