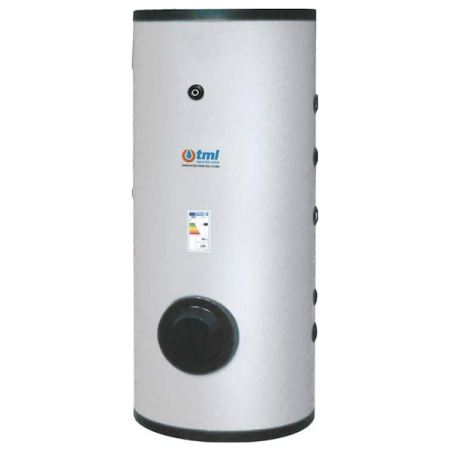

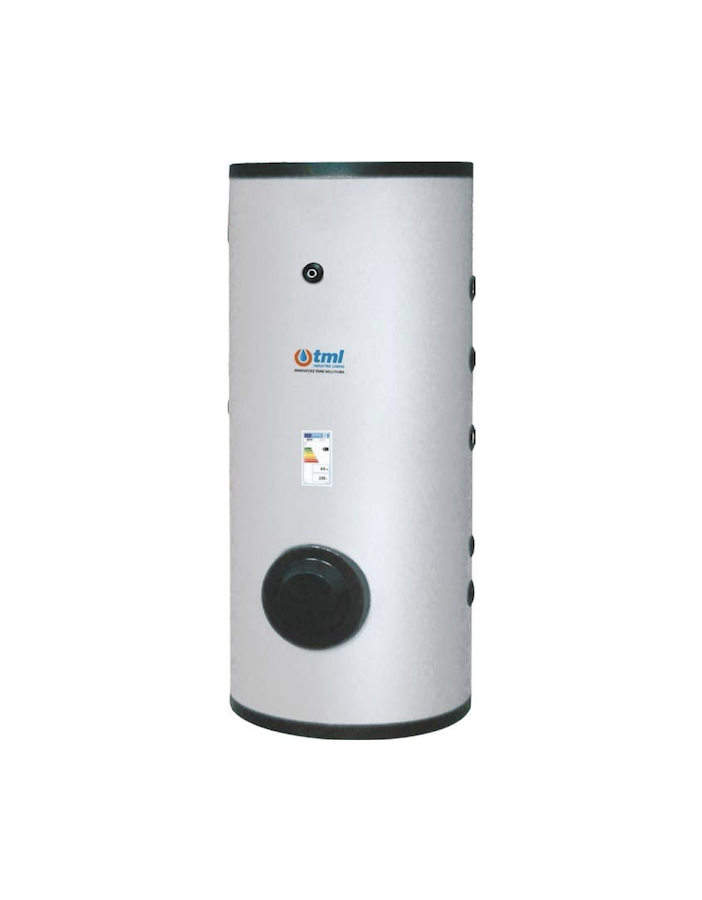

Tml ELV00500R Hot water storage lt. 500 rigid insulation porcelain glass

DHW Thermal Storage Tank 500 Litres in vitreous enamel carbon steel S235Jr – ELV00500R

The ELV00500R is a vertical DHW thermal storage tank with a capacity of 500 litres, manufactured in vitreous enamel carbon steel S235Jr by TML Industrie Loddo for domestic hot water (DHW) storage without an internal heat exchanger. The tank is designed for the installation of high-power electric immersion heaters via a large flanged inspection port, making it the ideal solution for systems with an external DHW generator (boiler, heat pump, solar thermal) that require a dedicated storage volume, or for direct electric heating.

Technical Specifications – ELV00500R

• Material: vitreous enamel carbon steel S235Jr – Inorganic food-grade enamel (DIN 4753.3) inside – anti-rust coating outside
• Max pressure / Max temperature: 8 bar / 95°C
• Actual capacity: 500 litres
• Internal heat exchanger: None – heating via electric immersion heater or direct injection from external generator
• Inspection port: Flanged – suitable for high-power electric heaters (flange 120/180)
• Cathodic protection: Replaceable magnesium anode
• Insulation: rigid PU foam + PVC 50 mm (Fire class B3 DIN 4102)
• ErP: Class B – Heat loss: 80.6 W
• Dimensions: Ø 650 mm × Height 1660 mm
• Weight: 90 kg
• Electric heater connections: 1½" threaded fitting + flanged inspection port 120/180
• Warranty: 5 years

Electric Heater Compatibility

The flanged inspection port of the ELV00500R is compatible with the TML REX electric heater range (30T, 40T, 50T, 75T, 90T, 120T for 800 and 1000-litre models) and with threaded heaters mounted on a CRI/CRV 180 adapter flange. This allows the tank to be configured as a large-capacity standalone electric water heater or as a buffer storage in multi-source systems.

Applications and Compatibility

The ELV00500R is suitable for: systems with an external DHW generator (gas boiler, heat pump, solar collector) requiring a separate storage volume; off-peak tariff installations with overnight electric heating; electric backup in hybrid systems; commercial and industrial applications with high DHW demand. The vertical design promotes thermal stratification, improving storage efficiency.

Standards and Certifications

The ELV00500R complies with: PED Directive 2014/68/EU (Art. 4 Par. 3), Italian D.M. 6 April 2004 N.174, ErP Directive 2009/125/EC.
