DHW Thermal Storage Tank ATX 300 L - TML Industrie Loddo

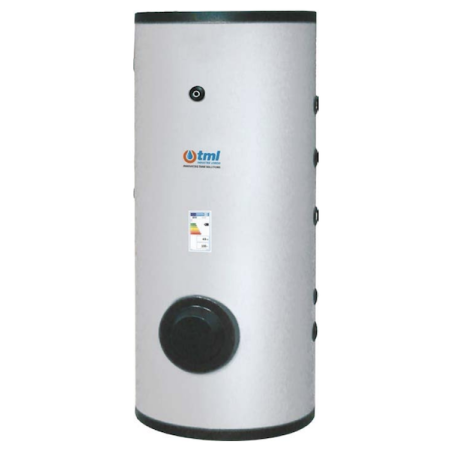

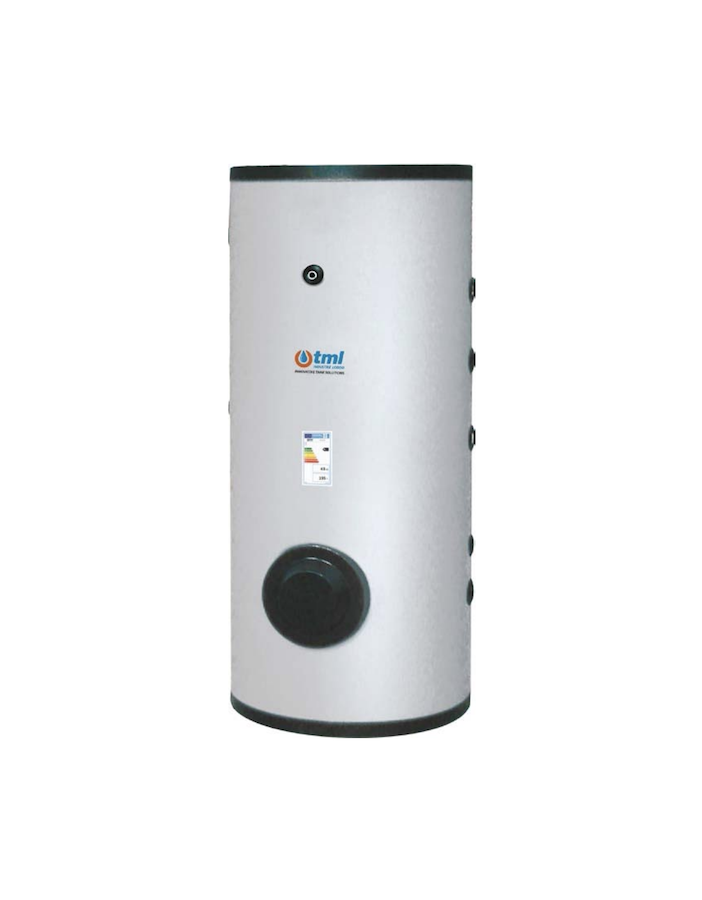

The ATX00300R thermal storage tank with 300 litres (291.7 L actual) is designed for domestic hot water (DHW) storage in residential, commercial and industrial applications. Made from stainless steel AISI 316L (1.4404), it ensures maximum hygiene and long-term reliability.

Technical Specifications

• Material: stainless steel AISI 316L (1.4404)
• Internal protective treatment: pickling and passivation
• External protective treatment: Anti-rust primer and industrial enamel coating
• Max pressure/temperature: 6 bar / 95°C
• Cathodic protection: Magnesium anode
• Nominal capacity: 300 L (actual: 291.7 L)
• Insulation: Rigid PU+PVC, thickness 50 mm
• ErP class: C
• Heat loss: 73.7 W
• Warranty: 5 years

Dimensions and Weight

• Diameter: Ø 500 mm
• Height: 1595 mm
• Weight: 61 kg

Standards and Directives

• Directive 2014/68/EU (PED) Art. 4 Par. 3
• Italian Decree 6 April 2004 N.174 (material suitability for DHW)
• Directive 2009/125/EC (Energy related Products)

Compatible with indirect preparation systems HWP I for medium/large installations. Equipped with an inspection manhole for optional electric heating element installation.
