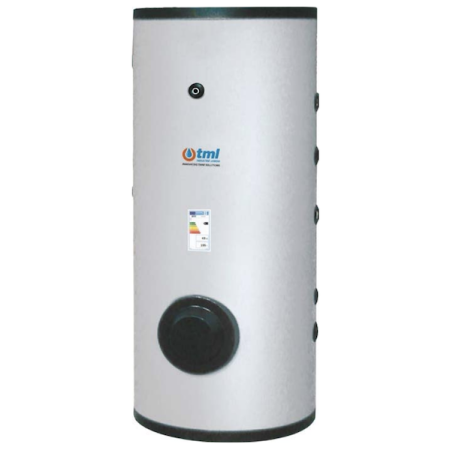

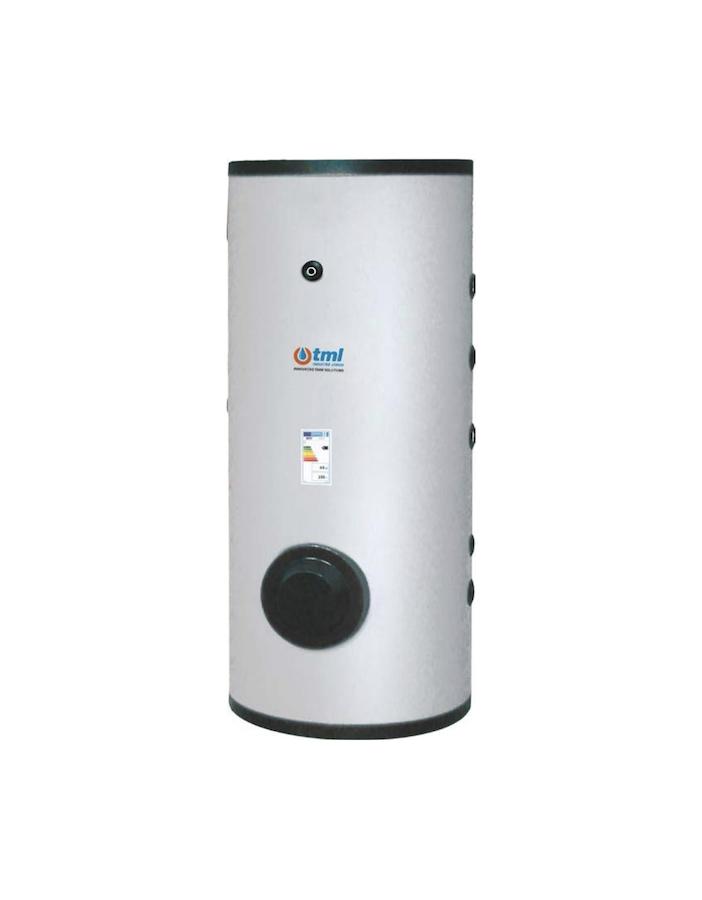

Tml ATV00800F Hot water storage tank lt. 800 Flex Insulated Porcelain Glass

DHW Thermal Storage Tank ATV 800 L - TML Industrie Loddo

The ATV00800F thermal storage tank with 800 litres (754.9 L actual) is designed for domestic hot water (DHW) storage in residential, commercial and industrial applications. Made from carbon steel with vitreous enamel coating (S235Jr), it ensures maximum hygiene and long-term reliability.

Technical Specifications

• Material: carbon steel with vitreous enamel coating (S235Jr)
• Internal protective treatment: food-grade inorganic enamel DIN 4753.3
• External protective treatment: Anti-rust primer and industrial enamel coating
• Max pressure/temperature: 8 bar / 95°C
• Cathodic protection: Magnesium anode
• Nominal capacity: 800 L (actual: 754.9 L)
• Insulation: Flexible PE+PVC, thickness 130 mm
• ErP class: C
• Heat loss: 132.6 W
• Warranty: 5 years

Dimensions and Weight

• Diameter: Ø 990 mm
• Height: 1750 mm
• Weight: 155 kg

Standards and Directives

• Directive 2014/68/EU (PED) Art. 4 Par. 3
• Italian Decree 6 April 2004 N.174 (material suitability for DHW)
• Directive 2009/125/EC (Energy related Products)

Compatible with indirect preparation systems HWP I for medium/large installations. Equipped with an inspection manhole for optional electric heating element installation.
