Tml PRX0050070R Rapid preparer with inspectable heat exchanger lt. 500 stainless steel AISI 316L rigid insulation

Fast DHW Preparation Unit PRX 500 L / 70 kW - TML Industrie Loddo

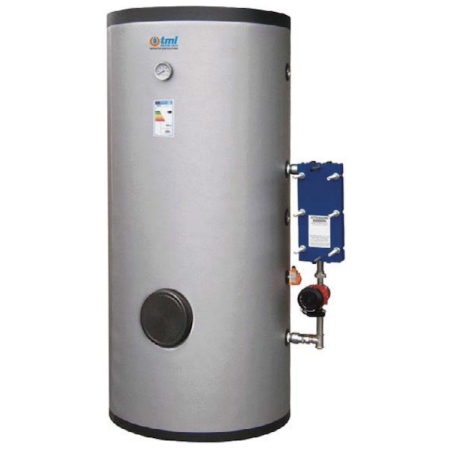

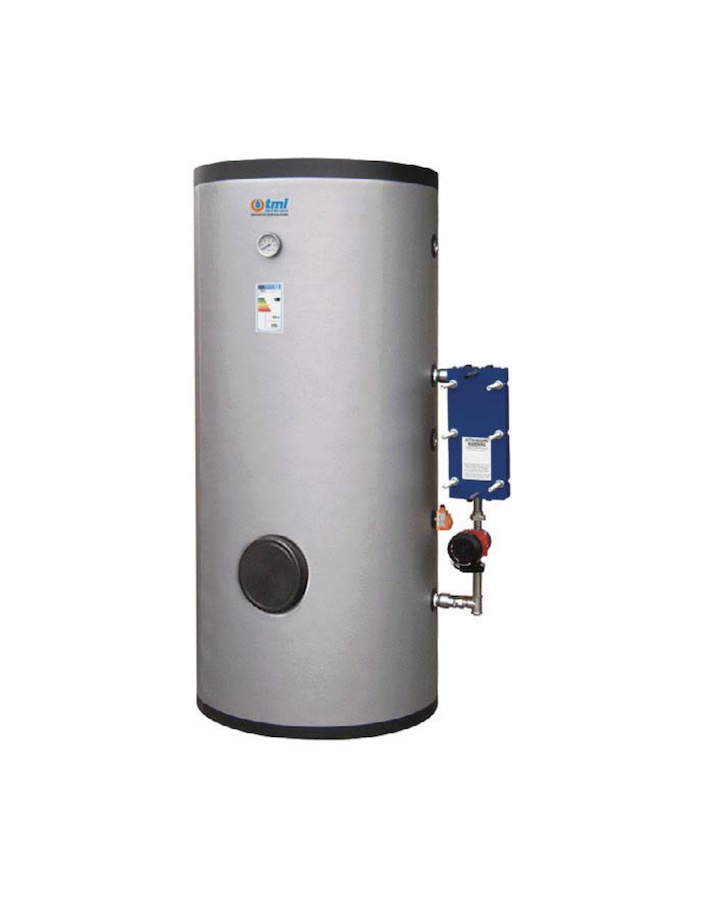

The PRX0050070R fast preparation unit combines a 500-litre (501.7 L actual) DHW storage tank in stainless steel AISI 316L (1.4404) with an external heat exchange kit featuring an inspectable AISI 316L plate heat exchanger rated at 70 kW. Complete solution for DHW production and storage in small-to-medium flow applications.

Storage Tank

• Material: Acciaio inox AISI 316L (1.4404)
• Internal treatment: Decapaggio e passivazione
• Max pressure/temperature: 6 bar / 95°C
• Cathodic protection: Magnesium anode
• Actual capacity: 501.7 L
• Insulation: Rigida PU+PVC, 50 mm
• Dispersione termica: 86.1 W
• ErP class: C

Heat Exchange Kit

• Plate material: Stainless steel AISI 316L (1.4404)
• Type: Inspectable, removable plates
• Exchange power: 70 kW
• Exchanger rating: 10 bar / 130°C
• Frame: Painted carbon steel, zinc-plated rods
• Circulator: DHW-rated (included)

Dimensions and Weight (tank only)

• Diameter: Ø 650 mm
• Height: 1660 mm
• Tank weight: 78 kg

Warranty

5 years on storage tank, 2 years on hydraulic group, 1 year on electrical parts.

Standards

• Directive 2014/68/EU (PED) Art. 4 Par. 3
• Italian Decree 6 April 2004 N.174
• Directive 2009/125/EC
