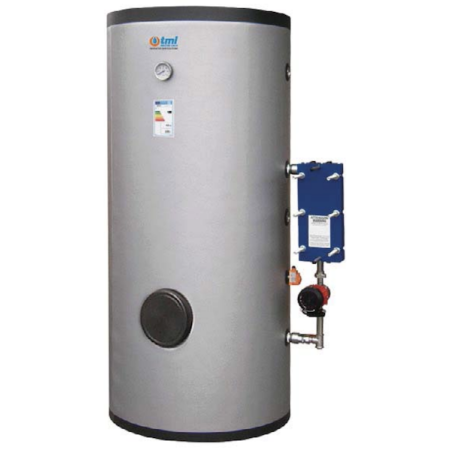

Tml PRV0050035R Rapid preparer with inspectable exchanger lt. 500 rigid insulation porcelain glass

Fast DHW Preparation Unit PRV 500 L / 35 kW - TML Industrie Loddo

The PRV0050035R fast preparation unit combines a 500-litre (501.7 L actual) DHW storage tank in vitreous enamel carbon steel S235Jr with an external heat exchange kit featuring an inspectable AISI 316L plate heat exchanger rated at 35 kW. Complete solution for DHW production and storage in small-to-medium flow applications.

Storage Tank

• Material: Acciaio al carbonio vetroporcellanato S235Jr
• Internal treatment: Smaltatura inorganica alimentare DIN 4753.3
• Max pressure/temperature: 8 bar / 95°C
• Cathodic protection: Magnesium anode
• Actual capacity: 501.7 L
• Insulation: Rigida PU+PVC, 50 mm
• Dispersione termica: 86.1 W
• ErP class: C

Heat Exchange Kit

• Plate material: Stainless steel AISI 316L (1.4404)
• Type: Inspectable, removable plates
• Exchange power: 35 kW
• Exchanger rating: 10 bar / 130°C
• Frame: Painted carbon steel, zinc-plated rods
• Circulator: DHW-rated (included)

Dimensions and Weight (tank only)

• Diameter: Ø 650 mm
• Height: 1660 mm
• Tank weight: 91 kg

Warranty

5 years on storage tank, 2 years on hydraulic group, 1 year on electrical parts.

Standards

• Directive 2014/68/EU (PED) Art. 4 Par. 3
• Italian Decree 6 April 2004 N.174
• Directive 2009/125/EC
