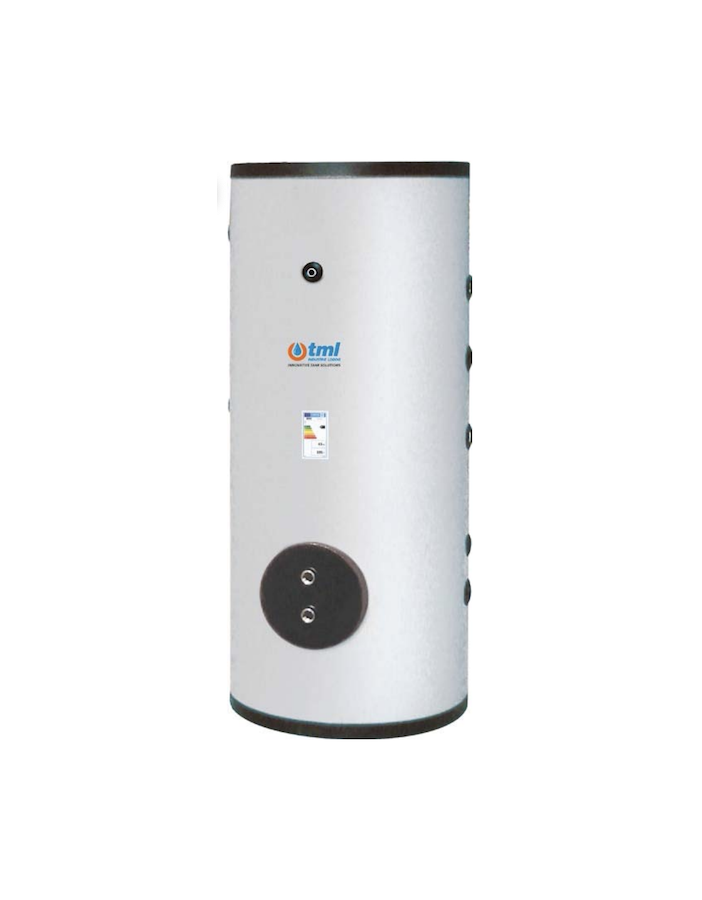

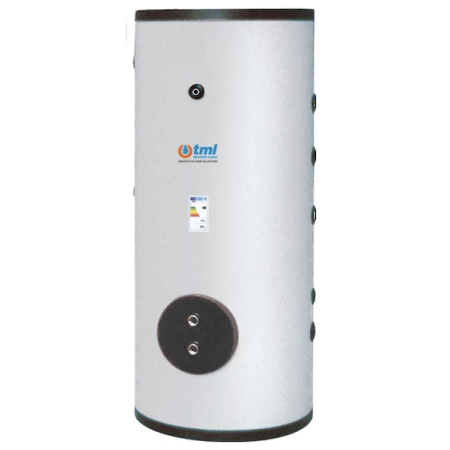

Tml BV1VA02000R Kettle lt. 2000 porcelain glass with a removable heat exchanger rigid insulation
TML BV1VA02000R 2000 L DHW heater - Vitreous enamel steel S235Jr - 1 removable heat exchanger - Max pressure 10 bar / 95°C - Ø 1100mm H 2380mm 436kg - COIB.RIGIDA - 5-year warranty.
Description
TML BV1VA02000R 2000Lt - Technical Data Sheet
Technical Features
- Tank material: Vitreous enamel steel S235Jr
- Internal treatment: Food-grade inorganic enamel DIN 4753.3
- Max tank pressure / temperature: 8 bar / 95°C
- Cathodic protection: Magnesium anode (electronic anode optional)
- Exchanger material: Tinned finned copper on removable plate
- Max exchanger pressure: 10 bar / 95°C
- No. of exchangers: 1
- Nominal capacity: 2000 Lt
- Dimensions: Ø 1100 mm - Height 2380 mm - Weight 436 kg
- Insulation: Rigid insulation: polyurethane+PVC up to 2000L (B3) / polyester+polystyrene+PVC from 2500L (B2)
- Warranty: 5 years tank / 2 years exchanger
Standards
- PED 2014/68/UE - Art.4 Par.3
- D.M. 6 Aprile 2004 N.174
- ErP 2009/125/CE
Optional Accessories
Impressed current electronic anode, control unit, thermostat, thermometer, 1.5" electric heater element
