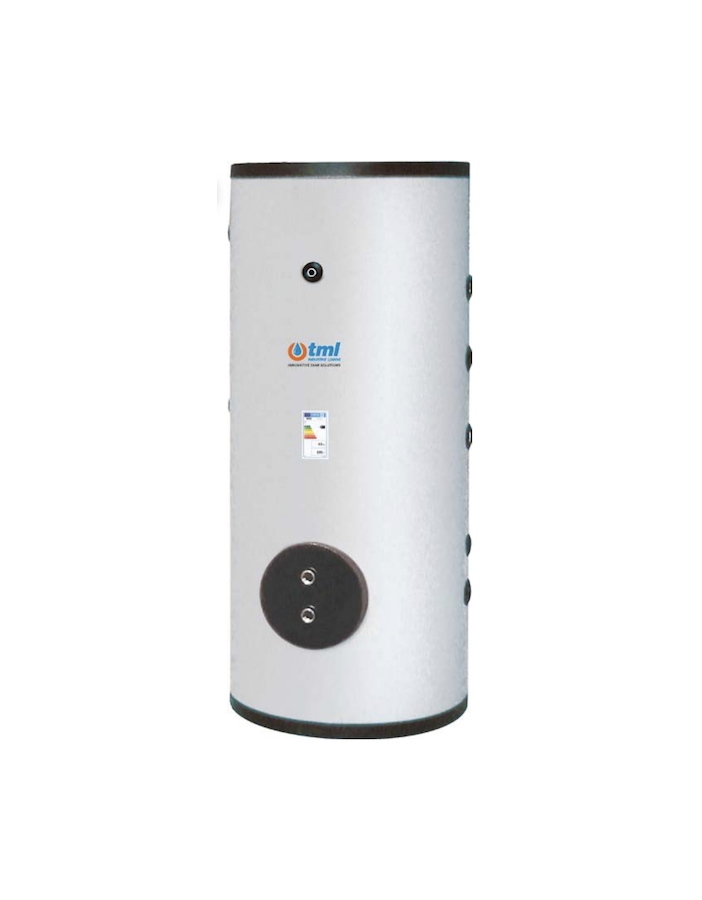

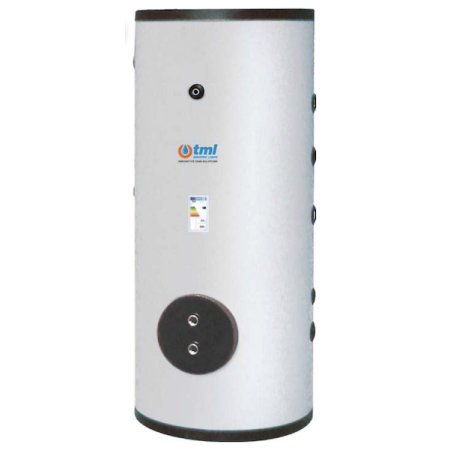

Tml BV1KA05000F Kettle lt. 5000 Keramtech with a removable heat exchanger with flex insulation
TML BV1KA05000F 5000 L DHW heater - Keramtech steel S235Jr - 1 removable heat exchanger - Max pressure 10 bar / 95°C - Ø 1600mm H 2955mm 623kg - COIB.FLEX - 5-year warranty.
Description
TML BV1KA05000F 5000Lt - Technical Data Sheet
Technical Features
- Tank material: Keramtech steel S235Jr
- Internal treatment: Food-grade epoxy-ceramic coating
- Max tank pressure / temperature: 6 bar / 100°C
- Cathodic protection: Magnesium anode (electronic anode optional)
- Exchanger material: Tinned finned copper on removable plate
- Max exchanger pressure: 10 bar / 95°C
- No. of exchangers: 1
- Nominal capacity: 5000 Lt
- Dimensions: Ø 1600 mm - Height 2955 mm - Weight 623 kg
- Insulation: Flexible polyester + PVC insulation (class B2 DIN 4102)
- Warranty: 5 years tank / 2 years exchanger
Standards
- PED 2014/68/UE - Art.4 Par.3
- D.M. 6 Aprile 2004 N.174
- ErP 2009/125/CE
Optional Accessories
Impressed current electronic anode, control unit, thermostat, thermometer, 1.5" electric heater element
