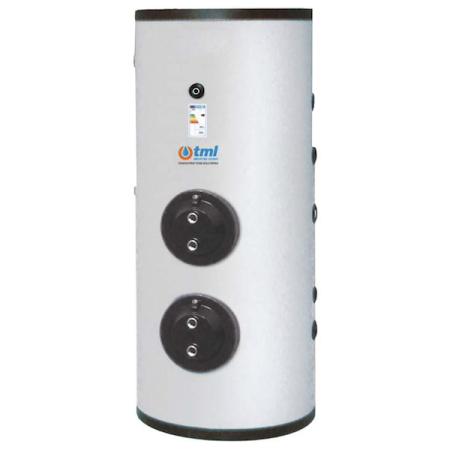

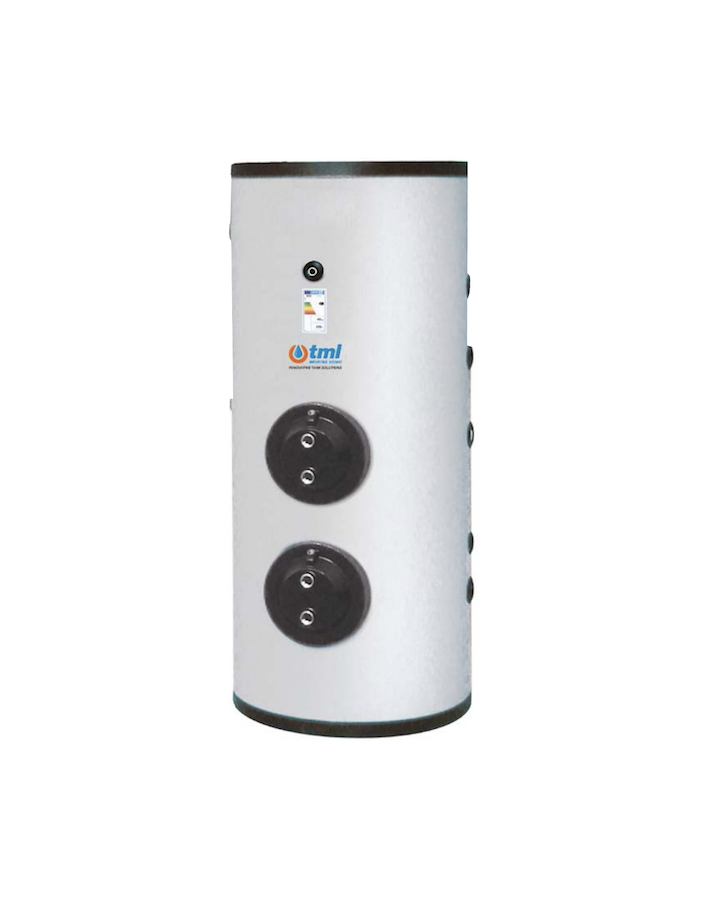

Tml BV2KI04000F Kettle lt. 4000 Keramtech with two removable heat exchangers with flex insulation

TML BV2KI04000F 4000Lt - Technical Data Sheet

Technical Features

• Tank material: Keramtech steel S235Jr
• Internal treatment: Food-grade epoxy-ceramic coating
• Max tank pressure / temperature: 6 bar / 100°C
• Cathodic protection: Magnesium anode (electronic anode optional)
• Exchanger material: Stainless steel - 2 removable exchangers: lower (solar) + upper (boiler)
• Max exchanger pressure: 10 bar / 95°C
• No. of exchangers: 2
• Solar thermal ready: lower exchanger curved downward to prevent bacterial growth
• Nominal capacity: 4000 Lt
• Dimensions: Ø 1400 mm - Height 2925 mm - Weight 652 kg
• Insulation: Flexible polyester + PVC insulation (class B2 DIN 4102)
• Warranty: 5 years tank / 2 years exchanger

Standards

• PED 2014/68/UE - Art.4 Par.3
• D.M. 6 Aprile 2004 N.174
• ErP 2009/125/CE

Optional Accessories

Impressed current electronic anode, control unit, thermostat, thermometer, 1.5" electric heater element
