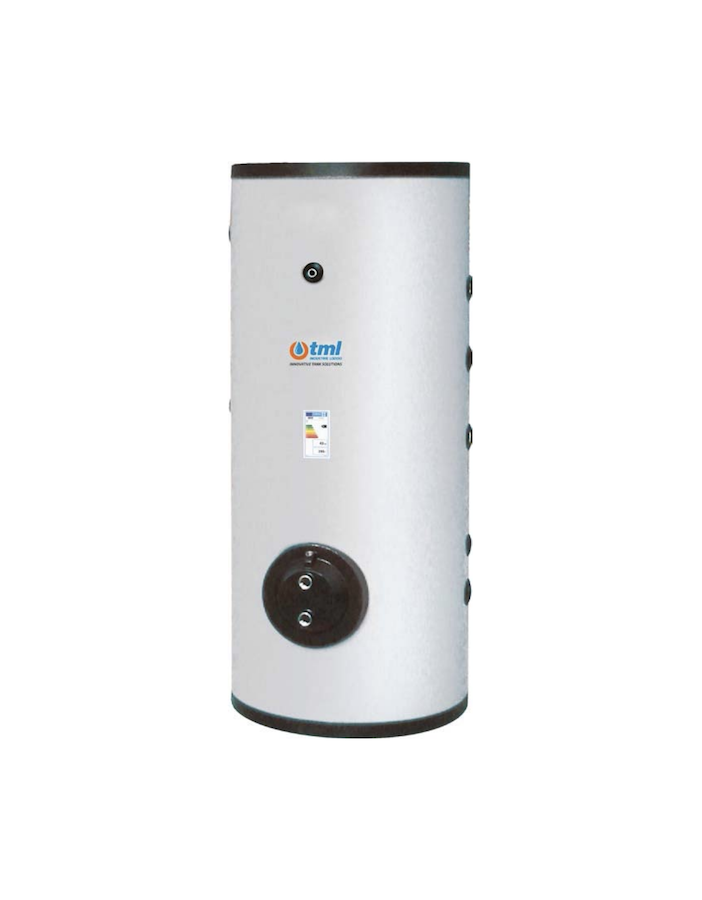

Tml BV1XS604000R Kettle lt. 4000 in AISI 316L stainless steel with a heat exchanger for steam max pressure 6 bar/165 °C rigid insulation
TML BV1XS604000R 4000 L DHW heater - AISI 316L stainless steel - 1 removable heat exchanger - Max pressure 6 bar vapore - Ø 1400mm H 2925mm 560kg - COIB.RIGIDA - 5-year warranty.
Description
TML BV1XS604000R 4000Lt - Technical Data Sheet
Technical Features
- Tank material: AISI 316L stainless steel
- Internal treatment: Pickling and passivation
- Max tank pressure / temperature: 6 bar / 95°C
- Cathodic protection: Magnesium anode (electronic anode optional)
- Exchanger material: AISI 316L inox tube bundle for 6 bar steam with return head
- Max exchanger pressure: 6 bar vapore
- No. of exchangers: 1
- Nominal capacity: 4000 Lt
- Dimensions: Ø 1400 mm - Height 2925 mm - Weight 560 kg
- Insulation: Rigid insulation: polyurethane+PVC up to 2000L (B3) / polyester+polystyrene+PVC from 2500L (B2)
- Warranty: 5 years tank / 2 years exchanger
Standards
- PED 2014/68/UE - Art.4 Par.3
- D.M. 6 Aprile 2004 N.174
- ErP 2009/125/CE
Optional Accessories
Impressed current electronic anode, control unit, thermostat, thermometer, 1.5" electric heater element
