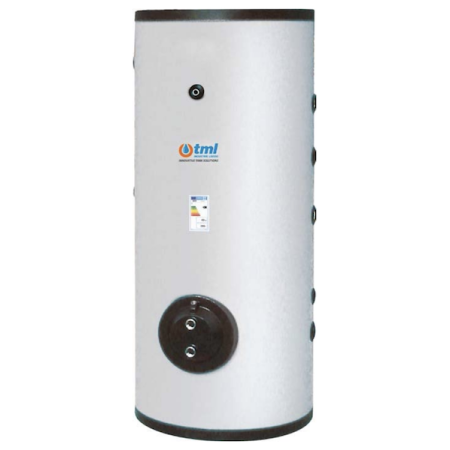

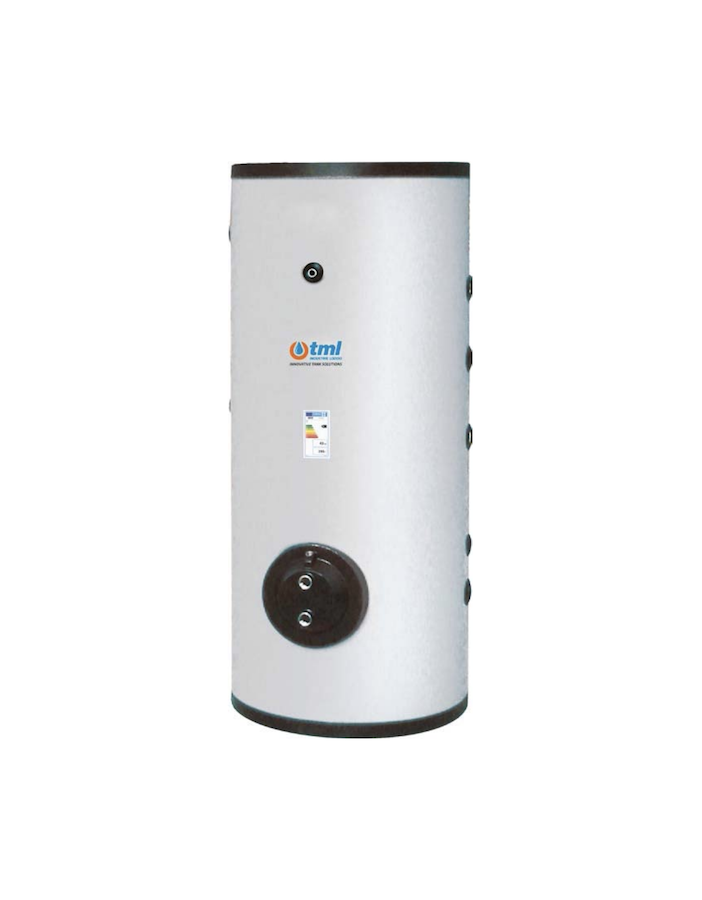

Tml BV1XS1201000R Kettle lt. 1000 in AISI 316L stainless steel with a heat exchanger for steam max pressure 12 bar/191.7 °C rigid insulation
TML BV1XS1201000R 1000 L DHW heater - AISI 316L stainless steel - 1 removable heat exchanger - Max pressure 12 bar vapore - Ø 790mm H 2110mm 158kg - COIB.RIGIDA - 5-year warranty.
Description
TML BV1XS1201000R 1000Lt - Technical Data Sheet
Technical Features
- Tank material: AISI 316L stainless steel
- Internal treatment: Pickling and passivation
- Max tank pressure / temperature: 6 bar / 95°C
- Cathodic protection: Magnesium anode (electronic anode optional)
- Exchanger material: AISI 316L inox tube bundle for 12 bar steam with return head
- Max exchanger pressure: 12 bar vapore
- No. of exchangers: 1
- Nominal capacity: 1000 Lt
- Dimensions: Ø 790 mm - Height 2110 mm - Weight 158 kg
- Insulation: Rigid insulation: polyurethane+PVC up to 2000L (B3) / polyester+polystyrene+PVC from 2500L (B2)
- Warranty: 5 years tank / 2 years exchanger
Standards
- PED 2014/68/UE - Art.4 Par.3
- D.M. 6 Aprile 2004 N.174
- ErP 2009/125/CE
Optional Accessories
Impressed current electronic anode, control unit, thermostat, thermometer, 1.5" electric heater element
