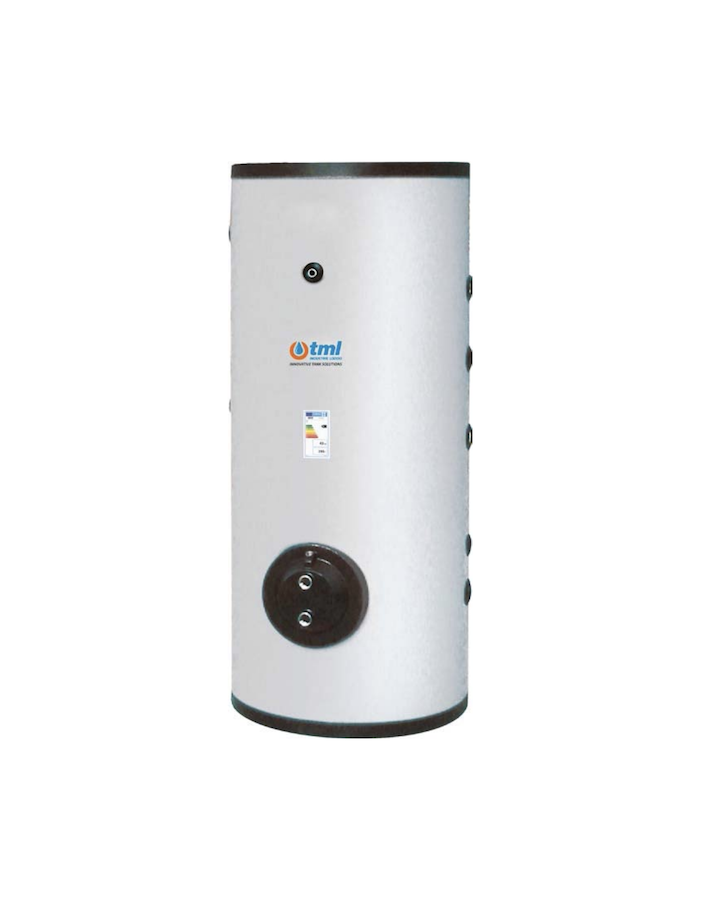

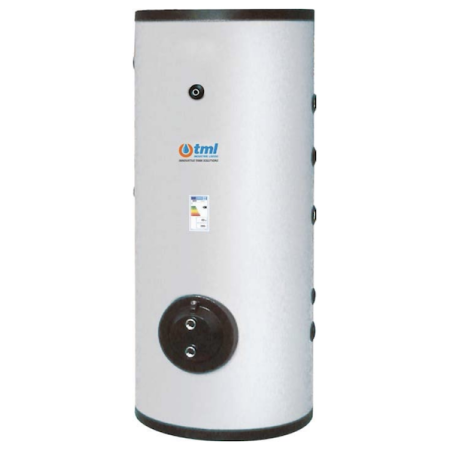

Tml BV1XS1202500F Kettle lt. 2500 in AISI 316L stainless steel with a heat exchanger for steam max pressure 12 bar/191.7 °C flex insulation
TML BV1XS1202500F 2500 L DHW heater - AISI 316L stainless steel - 1 removable heat exchanger - Max pressure 12 bar vapore - Ø 1200mm H 2595mm 351kg - COIB.FLEX - 5-year warranty.
Description
TML BV1XS1202500F 2500Lt - Technical Data Sheet
Technical Features
- Tank material: AISI 316L stainless steel
- Internal treatment: Pickling and passivation
- Max tank pressure / temperature: 6 bar / 95°C
- Cathodic protection: Magnesium anode (electronic anode optional)
- Exchanger material: AISI 316L inox tube bundle for 12 bar steam with return head
- Max exchanger pressure: 12 bar vapore
- No. of exchangers: 1
- Nominal capacity: 2500 Lt
- Dimensions: Ø 1200 mm - Height 2595 mm - Weight 351 kg
- Insulation: Flexible polyester + PVC insulation (class B2 DIN 4102)
- Warranty: 5 years tank / 2 years exchanger
Standards
- PED 2014/68/UE - Art.4 Par.3
- D.M. 6 Aprile 2004 N.174
- ErP 2009/125/CE
Optional Accessories
Impressed current electronic anode, control unit, thermostat, thermometer, 1.5" electric heater element
